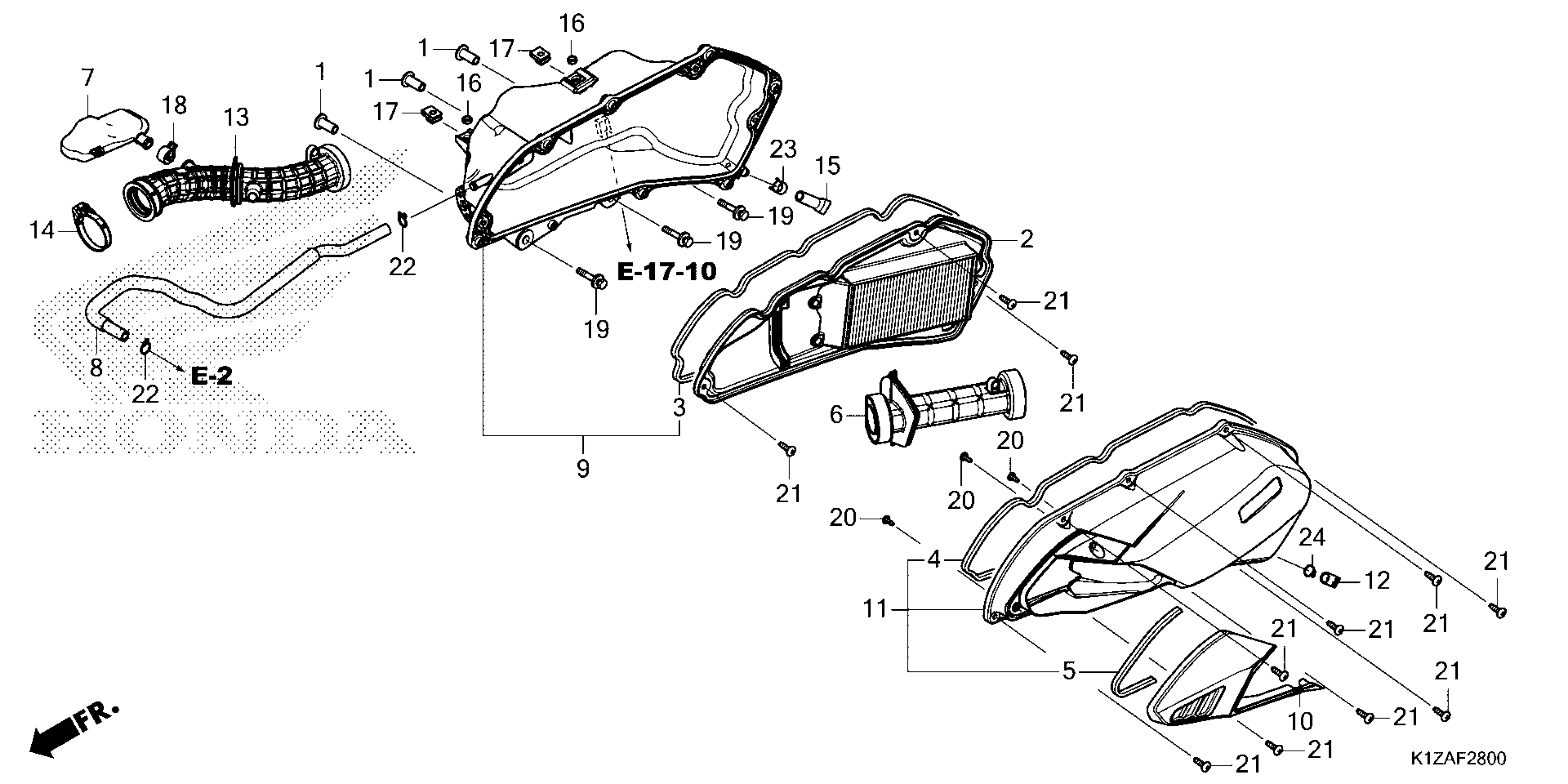

Honda PCX160AAC (25) MOTORCYCLE, VNM, VIN# RLHKF472-SY000001 TO RLHKF472-SY099999 AIR CLEANER Diagram

#

Description
Price

1

COLLAR

17208-K1A-N80

$0.40

2

ELEMENT, AIR CLEANER

17210-K1Z-J10

$7.89

3

SEAL, AIR/C

17213-K97-T00

$2.75

4

SEAL, AIR/C

17213-K97-T00

$2.75

5

SEAL, AIR CLEANER DUCT

17214-K1Z-J10

$0.57

6

DUCT, AIR CLEANER

17215-K1Z-J10

$2.34

7

RESONATOR

17216-K1Z-J10

$1.85

8

TUBE, BREATHER

17218-K1Z-J10

$4.85

9

CASE SUB-ASSY., AIR CLEANER

17225-K1Z-J10

$9.59

10

COVER, AIR CLEANER DUCT

17234-K1Z-J10

$1.44

11

COVER SUB-ASSY., AIR CLEANER

17235-K1Z-J10

$7.88

12

PLUG, AIR CLEANER DRAIN

17236-KVB-900

$1.01

13

TUBE, AIR CLEANER CONNECTING

17253-K1Z-J10

$8.25

14

BAND (44)

17256-K1Y-DC0

$1.10

15

TUBE, DRAIN

17261-KVB-T00

$1.31

16

COLLAR, RR. FENDER

80108-K1Z-920

$2.75

17

NUT, CLIP (6MM)

90311-K1A-N80

$0.59

18

CLIP, RESONATOR

90678-K38-900

$0.31

19

BOLT-WASHER (6X35)

93404-06035-07

$1.25

20

SCREW, TAPPING (4X12)

93903-24380

Unavailable

21

SCREW, TAPPING (5X20)

93903-25480

$0.84

22

CLIP, TUBE (B12.5)

95002-02130

$1.06

23

CLAMP, TUBE (D12)

95002-41200-08

$2.31

24

CLIP, TUBE (C12)

95002-80000

$0.43
