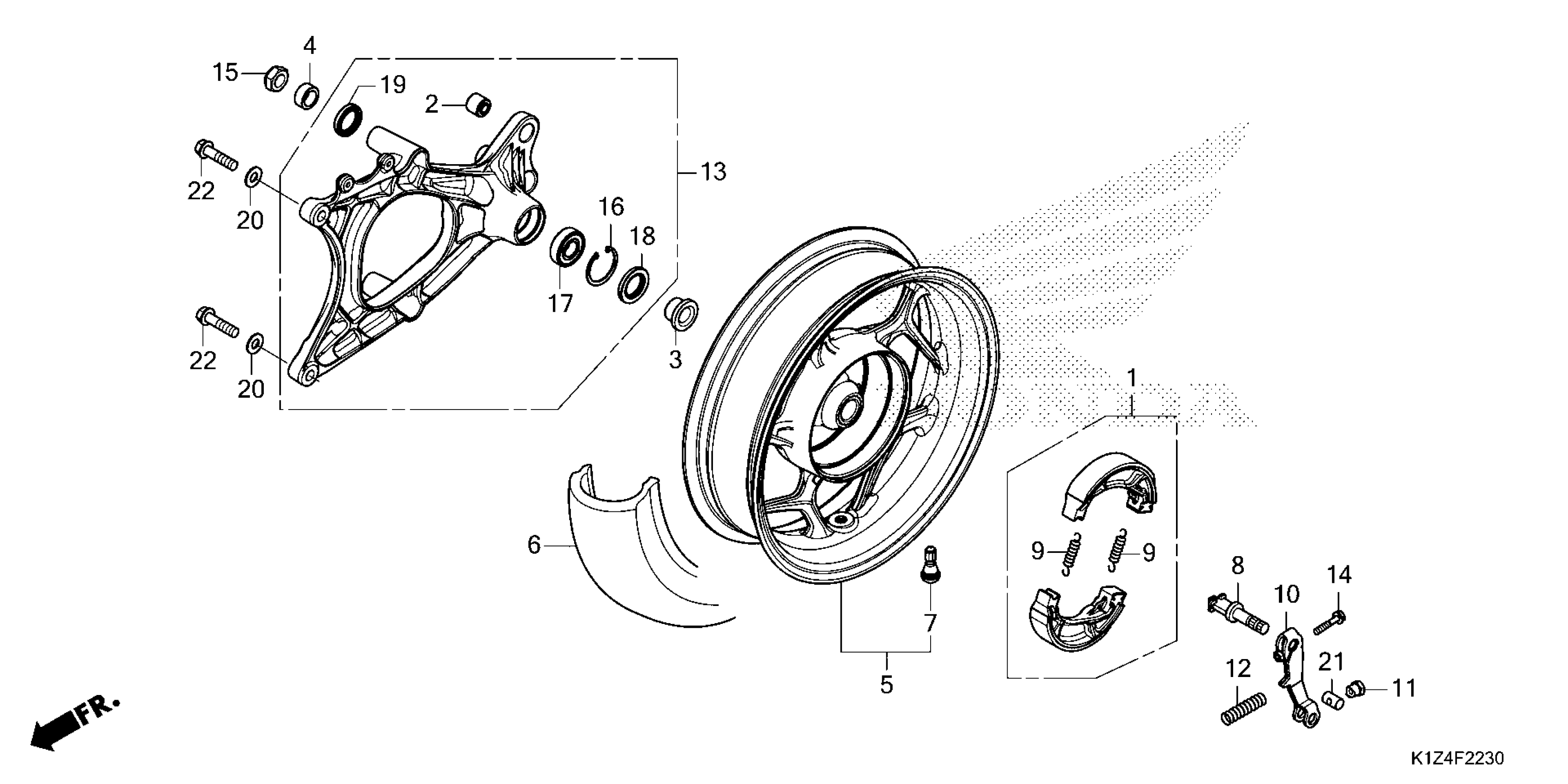

Honda PCX160AAC (24) MOTOR SCOOTER, VNM, VIN# RLHKF472-RY200001 REAR WHEEL@SWINGARM Diagram

#

Description
Price

1

SHOE SET, BRAKE (JB)

06430-KWN-900

$20.35

1

SHOE SET, BRAKE (ASK) (NOT AVAILABLE)

06430-KZL-930

Unavailable

1

SHOE SET, BRAKE (NK)

06430-K44-V80

$10.86

2

BUSH, RR. CUSHION RUBBER (LOWER) (HOKUSHIN)

11203-KVB-901

$4.03

2

BUSH, RR. CUSHION RUBBER (LOWER)

11203-K35-J00

$2.16

3

COLR, RR. WHEEL SIDE

42311-K96-V00

$3.10

4

COLLAR B, RR. WHEEL SIDE

42312-KWN-700

$1.96

5

WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC)

42650-K1Y-D10ZA

$124.31

6

TIRE, RR. (130/70-13 M/C 63P) (IRC)

42711-K1Z-J11

$51.50

7

VALVE, RIM (IRC)

42753-GM9-743

$7.99

8

CAM, RR. BRAKE

43141-KVB-900

$11.35

9

SPRING, BRAKE SHOE (THIS APPLICATION-FRONT)

43151-329-000

$2.66

10

ARM, RR. BRAKE

43410-K1N-V00

$1.90

11

NUT B, BRAKE ROD ADJUSTING This part replaces 43459-GN5-760.

95015-42000

$1.78

11

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78

12

SPRING, RR. BRAKE ARM

43472-K97-T00

$2.56

13

SWINGARM ASSY., RR.

52100-K1Y-D10

$34.08

14

BOLT, FLANGE (6X32)

90112-KVB-900

$0.71

15

NUT, U (16MM)

90305-KWN-701

$5.23

16

CIRCLIP (INNER) (40MM)

90651-KZR-601

$0.78

16

CIRCLIP (INNER) (40MM)

94520-40000

$2.75

17

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V01.

91051-K35-V03

$17.14

17

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V02.

91051-K35-V03

$17.14

17

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-K35-V03

$17.14

17

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V04.

91051-K35-V03

$17.14

18

DUST SEAL (25X40X5)

91252-K35-V01

$1.99

19

DUST SEAL (25X35X6)

91253-K35-V01

$1.94

20

WASHER, PLAIN (10MM)

94101-10000

$1.06

21

JOINT B, BRAKE ARM

95015-32001

$0.87

22

BOLT, FLANGE (10X40)

95701-10040-00

$1.40
