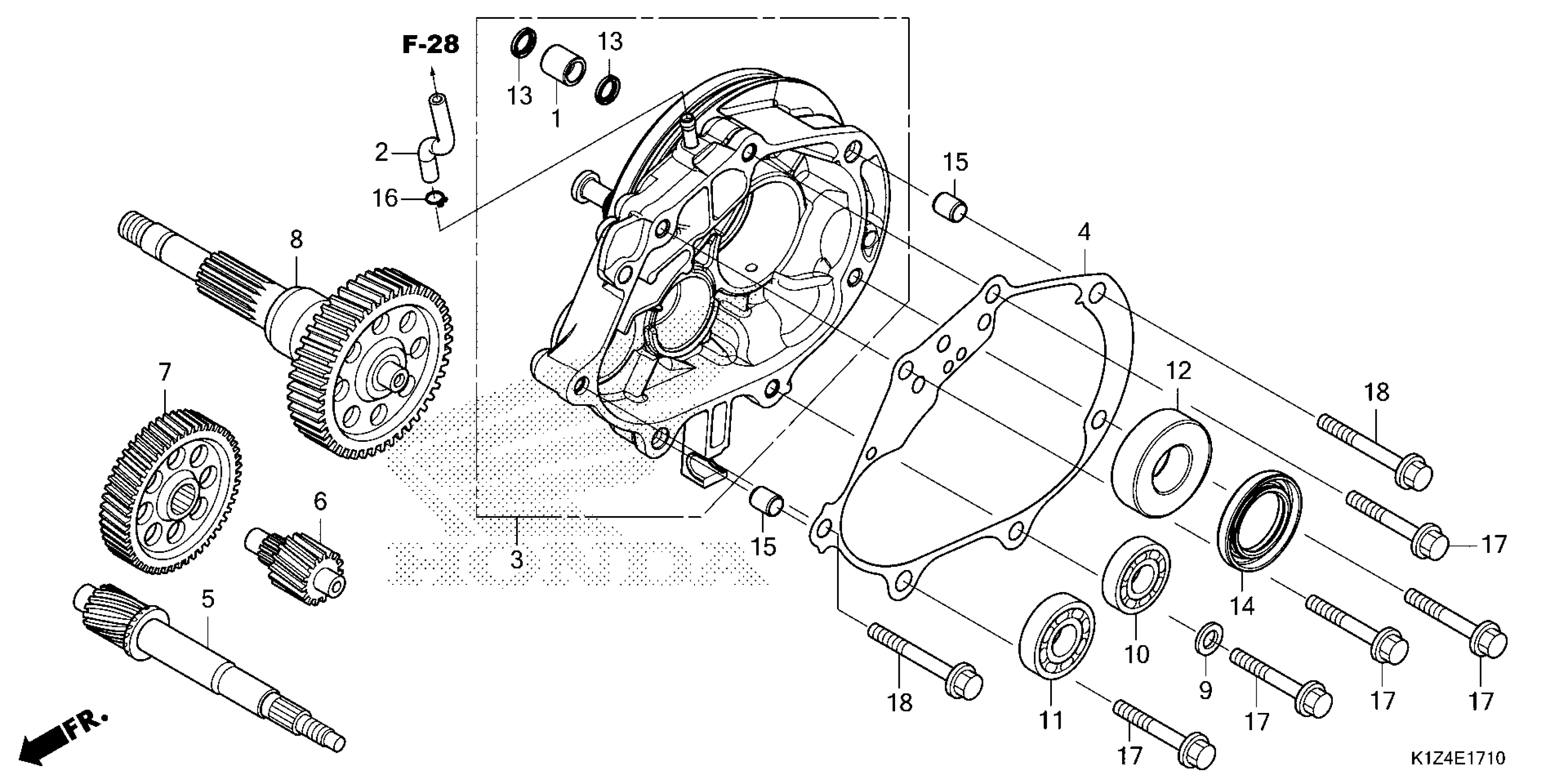

Honda PCX160AAC (23) MOTOR SCOOTER, VNM, VIN# RLHKF471-PY100001 TO RLHKF471-PY199999 TRANSMISSION Diagram

SLEEVE, RR. BRAKE CAM

11204-KGF-900

$8.79

TUBE, TRANSMISSION BREATHER

11211-K1N-V00

$1.49

CASE, TRANSMISSION

21200-K1N-V00

$36.75

GASKET, TRANSMISSION CASE (NICHIAS)

21395-K1N-V01

$1.49

SHAFT, DRIVE

23411-K0W-NA0

$15.89

COUNTERSHAFT (13T)

23421-K1Z-J10

$13.82

GEAR, COUNTER (51T)

23422-K1Z-J10

$13.74

GEAR, FINAL (44T)

23430-K1Z-J10

$38.70

WASHER, SEALING (8MM)

90495-MN5-000

$3.56

BEARING, RADIAL BALL (6202) (NTN)

91004-KZR-601

$9.14

BEARING, RADIAL BALL (6202) (NTN)

91004-KZR-601

$9.14

BRG (6205UU)

91009-K2S-N01

$6.66

OIL SEAL (14X20X3.2)

91201-434-003

$4.26

OIL SEAL (34X52X7)

91204-K59-A11

$2.51

PIN, DOWEL (10X12)

94301-10120

$2.28

CLIP, TUBE (C9)

95002-50000

$1.49

BOLT, FLANGE (8X45)

95701-08045-00

$1.49

BOLT, FLANGE (8X55)

95701-08055-00

$2.28
