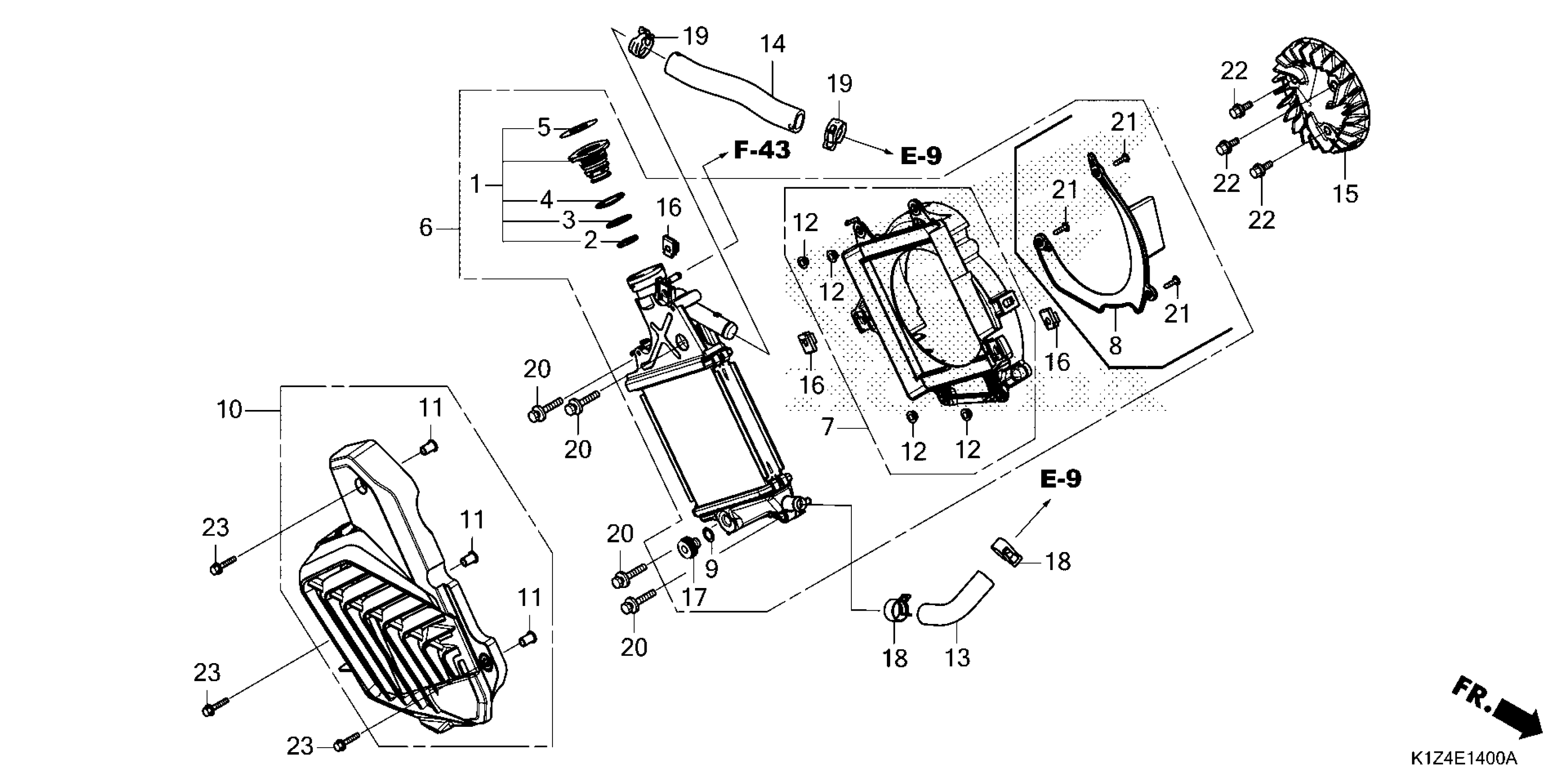

Honda PCX160AAC (23) MOTOR SCOOTER, VNM, VIN# RLHKF471-PY100001 TO RLHKF471-PY199999 RADIATOR Diagram

Description

Price

CAP, RADIATOR

19037-K12-941

$59.26

O-RING A

19049-K27-V51

$1.65

O-RING B

19051-K27-V51

$1.65

O-RING C

19052-K27-V51

$1.65

LABEL, RADIATOR CAP

19055-K12-941

$4.72

RADIATOR ASSY.

19100-K0W-JA0

$43.64

BASE COMP, RADIATOR

19105-K2S-N00

$2.43

SEAL, DRAIN

19109-GET-003

$2.06

COVER, RADIATOR

19150-K1N-V00

$3.86

COLLAR

19416-K01-900

Unavailable

COLLAR

19416-KEY-900

$0.71

HOSE A, WATER

19501-K0R-V00

$3.48

HOSE B, WATER

19502-K40-A00

$5.17

FAN, COOLING

19510-K1F-V00

$2.20

NUT, FENDER SETTING

84601-HA7-670

$5.15

BOLT, DRAIN

90103-GET-003

$3.80

CLAMP, HOSE (D20)

90602-K27-V01

$3.90

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$0.75

BOLT-WASHER (6X30)

93401-06030-08

$0.20

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

Unavailable
