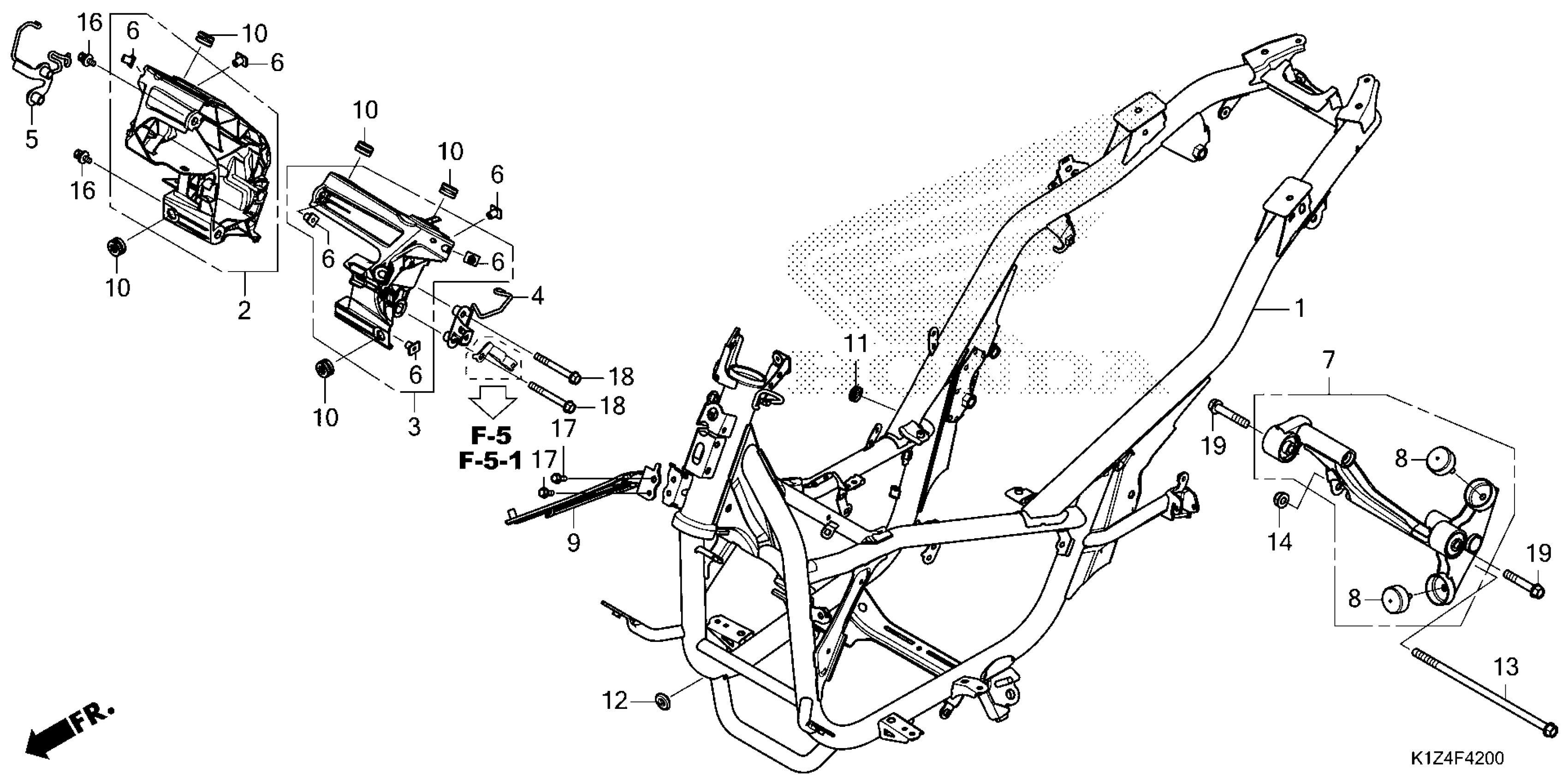

Honda PCX160AAC (23) MOTOR SCOOTER, VNM, VIN# RLHKF471-PY100001 TO RLHKF471-PY199999 FRAME Diagram

FRAME

50100-K1Y-D10

$178.00

STAY, R. FR. COVER

50311-K1Z-J10

$10.43

STAY, L. FR. COVER

50312-K1Z-J10

$10.93

GUIDE, BRAKE HOSE

50313-K1Z-J10

$2.65

COLLAR, FR.

50317-K1Y-D10

$1.84

NUT, FR. COVER B STAY

50318-K97-T00

$1.00

LINK ASSY., ENGINE HANGER

50350-K1Z-J10

$39.00

RUBBER, STOPPER

50352-K40-A00

$1.49

STAY, ECU

50622-K1Z-J10

$5.07

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.31

GROMMET, SEAT LOCK CABLE

77250-K01-900

$0.34

GROMMET, SIDE COVER

83551-376-000

Unavailable

BOLT, FLANGE (10X255)

90105-K0R-V00

$2.60

NUT, U (10MM)

90304-KGH-901

Unavailable

BOLT-WASHER (6X12)

93404-06012-07

$1.63

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.63

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

BOLT, FLANGE (8X70)

95801-08070-08

$3.91

BOLT, FLANGE (10X55)

95801-10055-00

$1.29
