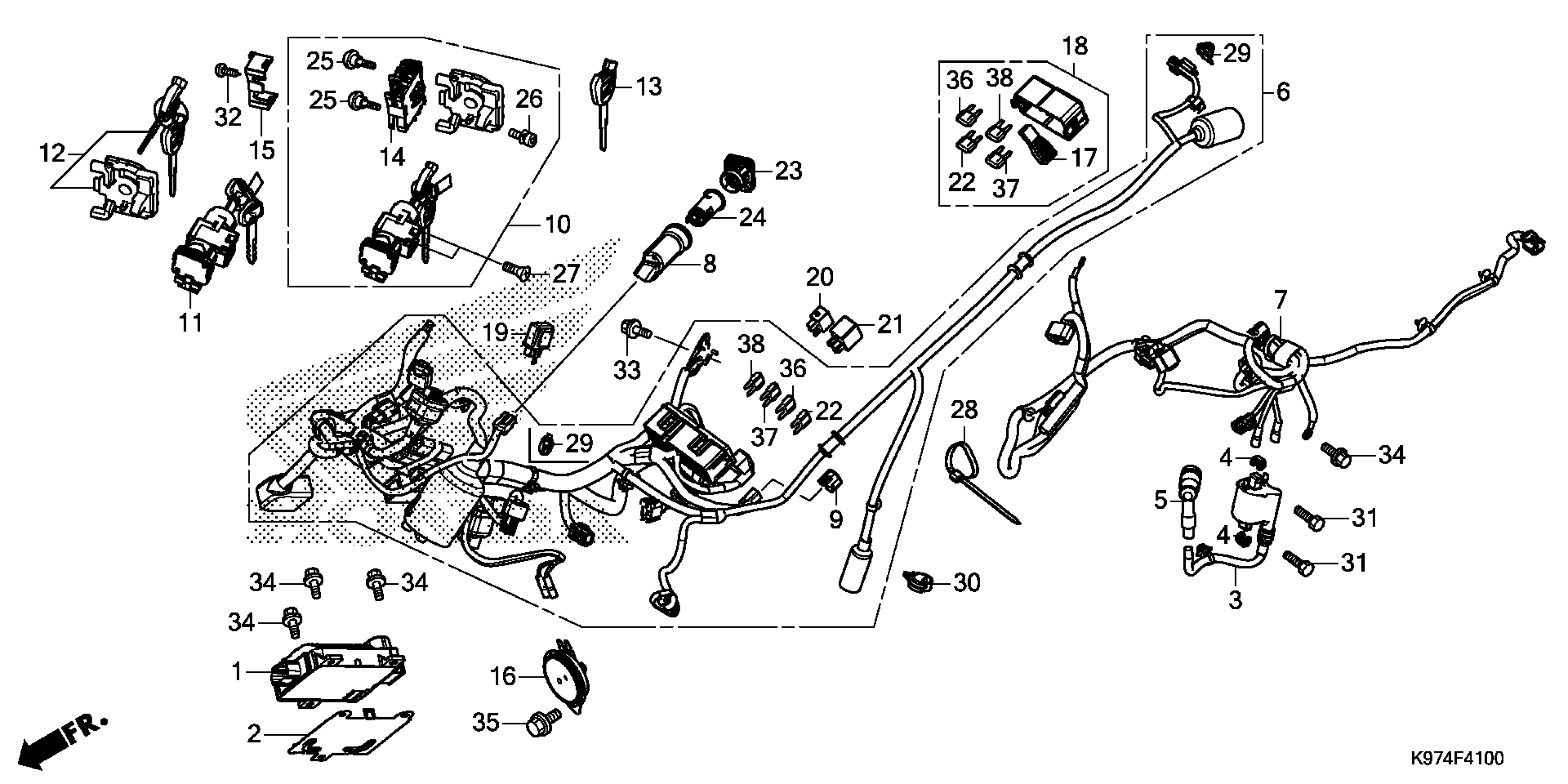

Honda PCX150AC (20) MOTOR SCOOTER, VNM, VIN# RLHKF300-LY000001 WIRE HARNESS@FOB KEY Diagram

CONTROL UNIT, ENGINE

30400-K97-A01

$273.59

COVER, ENGINE CONTROL UNIT

30401-K35-V00

$1.87

COIL, IGNITION

30510-K35-V01

$14.71

SPACER, IGNITION COIL

30520-GFM-900

$2.61

CAP ASSY., NOISE SUPPRESSOR (TOYO)

30700-KWN-981

$14.79

WIRE HARNESS

32100-K97-A00

$207.70

SUB-HARNESS ENG

32104-K97-T00

$56.13

COVER, ACCESSORY SOCKET

32107-K04-930

$3.97

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

SWITCH, COMB&LOCK This part replaces 35100-K97-A01.

35100-K97-A02

$46.56

SWITCH, COMB&LOCK

35100-K97-A02

$46.56

SWITCH COMP

35101-K97-A01

$36.03

SHUTTER, KEY

35110-K35-V02

$22.69

KEY, BLANK (V0KEYTOP2REPORDER) (NOT AVAILABLE) | (Optional).

35121-K35-V00

Unavailable

SWITCH ASSY., FUEL LID & SEAT OPENER

35190-K35-V02

$7.03

COVER, CABLE

35191-K27-V01

$1.92

HORN (LOW)

38120-K97-T01

$24.16

PULLER, MINI FUSE

38235-SNA-A01

$3.84

COVER COMP (UPPER)

38255-K97-T01

$13.61

RELAY, TURN SIGNAL

38301-KZZ-J01

$56.87

RELAY ASSY., POWER (MICRO ISO 4P) (MITSUBA)

38501-KVZ-631

$10.74

RELAY, POWER (PANASONIC)

38502-KWN-701

$34.93

MINI FUSE (2A)

39214-HAC-000

$1.49

CAP ASSY.

39620-K12-901

$14.28

SOCKET ASSY.

39624-SZ3-L01

$23.62

SCREW, SCREEN SETTING

90101-MT4-000

$1.79

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

SCREW, U-LOCK FLAT (6X12)

90164-KZL-A00

$1.84

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

CLIP, WIRE HARNESS *NH1L* (BLACK)

91558-SD5-003

$7.56

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

SCREW, TAPPING (4X12)

93901-24320

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

FUSE F (7.5A) (MINI)

98200-40750

$1.49

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

FUSE, MINI (25A)

98200-42500

$1.51
