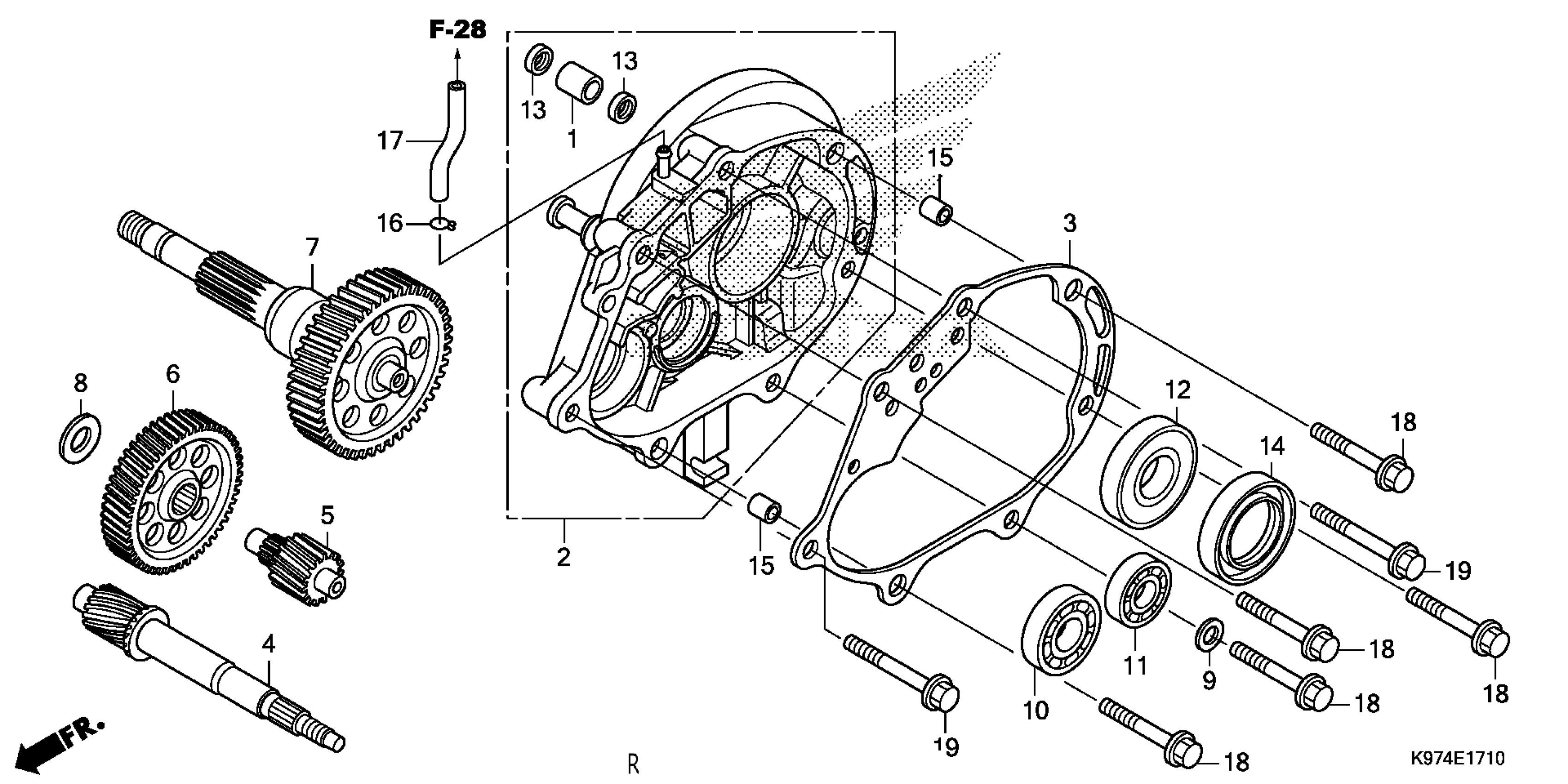

Honda PCX150AC (20) MOTOR SCOOTER, VNM, VIN# RLHKF300-LY000001 TRANSMISSION Diagram

SLEEVE, RR. BRAKE CAM

11204-KGF-900

$8.12

CASE COMP, TRANS

21200-K97-T00

$46.75

GASKET, TRANS CASE

21395-K97-T02

$4.93

SHAFT, DRIVE (15T)

23411-K97-T01

$24.04

COUNTERSHAFT (16T)

23421-K97-T01

$23.60

GEAR, COUNTER (55T)

23422-K97-T01

$33.09

GEAR, FINAL (43T)

23430-K97-T01

$63.12

WASHER This part replaces 90452-KGH-900.

90452-KPH-C00

$2.53

WASHER

90452-KPH-C00

$2.53

WASHER, SEALING (8MM)

90495-MN5-000

$3.40

BEARING, RADIAL BALL (6202) (NTN)

91004-KZR-601

$8.17

BEARING, RADIAL BALL (6201) (NTN)

91006-KZR-601

$7.01

BEARING, RADIAL BALL (6205UU) (NTN)

91009-KWN-901

$7.11

OIL SEAL (14X20X3.2)

91201-434-003

$4.07

OIL SEAL (34X52X7)

91204-K59-A11

$2.25

PIN, DOWEL (10X12)

94301-10120

$2.80

CLIP, TUBE (C9)

95002-50000

$1.16

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

Unavailable

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

BOLT, FLANGE (8X55)

95701-08055-00

$2.80
