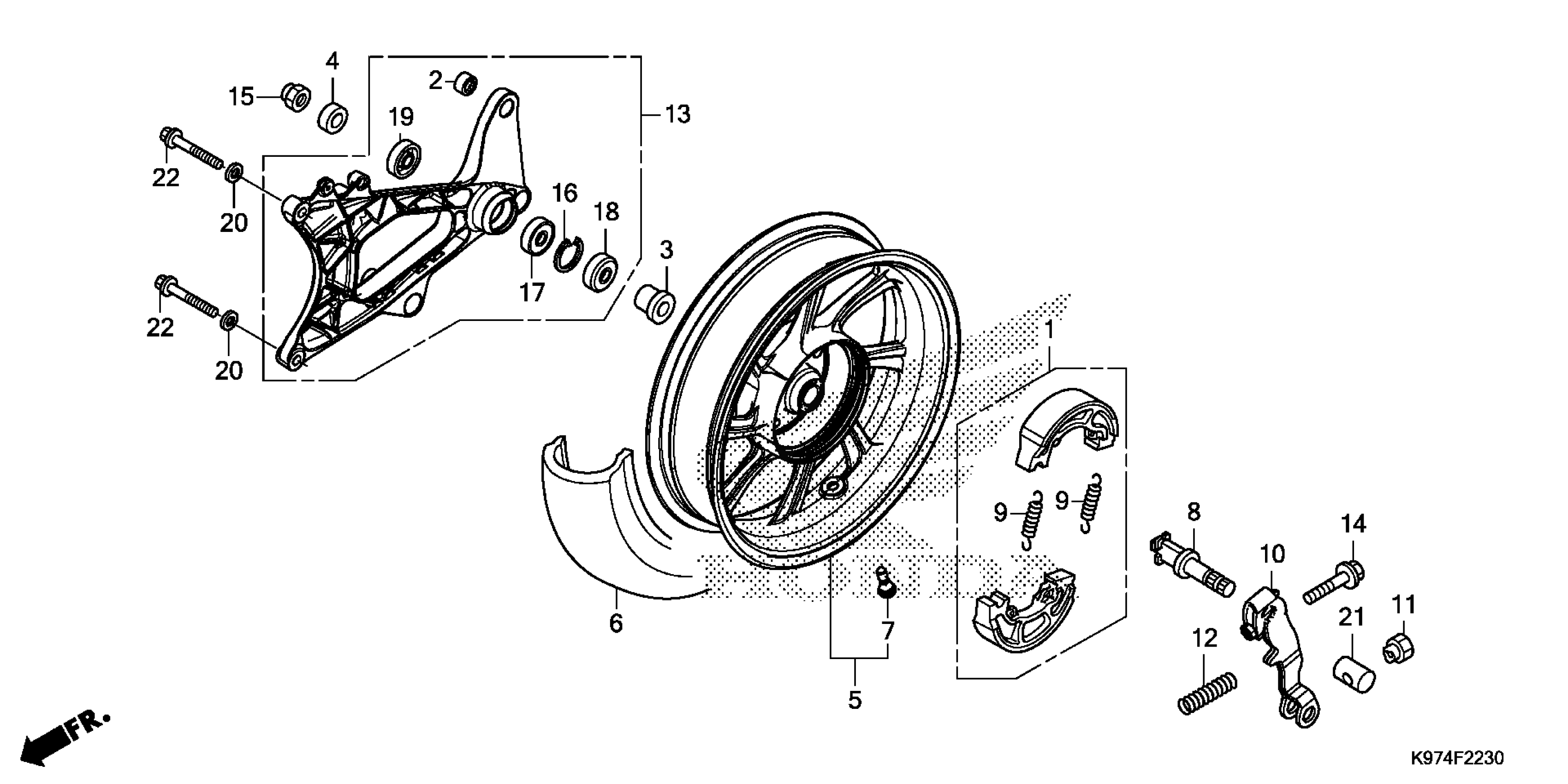

Honda PCX150AC (20) MOTOR SCOOTER, VNM, VIN# RLHKF300-LY000001 REAR WHEEL@SWINGARM Diagram

#

Description
Price

1

SHOE SET, BRAKE (JB)

06430-KWN-900

$19.89

2

BUSH, RR. CUSHION RUBBER (LOWER) (HOKUSHIN)

11203-KVB-901

$3.97

2

BUSH, RR. CUSHION RUBBER (LOWER)

11203-K35-J00

$2.13

3

COLR, RR. WHEEL SIDE

42311-K96-V00

$3.06

4

COLLAR B, RR. WHEEL SIDE

42312-KWN-700

$1.93

5

WHEEL SUB *NH303M*

42650-K97-T00ZA

$233.30

6

TIRE, RR. This part replaces 42711-K96-V01.

42711-K96-V02

$74.58

6

TIRE, RR.

42711-K96-V02

$74.58

7

VALVE, RIM (IRC)

42753-GM9-743

$7.79

8

CAM, RR. BRAKE

43141-KWN-930

$6.17

9

SPRING, BRAKE SHOE (THIS APPLICATION-FRONT)

43151-329-000

$2.62

10

ARM COMP, RR. BRAKE

43410-K97-T00

$3.04

11

NUT B, BRAKE ROD ADJUSTING This part replaces 43459-GN5-760.

95015-42000

$1.75

11

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

12

SPRING, RR. BRAKE ARM

43472-K97-T00

$2.52

13

SWINGARM ASSY., RR.

52100-K96-V00

$39.75

14

BOLT, FLANGE (6X35)

90112-K97-T00

$1.06

15

NUT, U (16MM)

90305-KWN-701

$5.10

16

CIRCLIP (INNER) (40MM)

90651-KZR-601

$0.77

16

CIRCLIP (INNER) (40MM)

94520-40000

$2.09

17

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V01.

91051-K35-V03

$17.14

17

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V02.

91051-K35-V03

$17.14

17

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-K35-V03

$17.14

17

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI) This part replaces 91051-K35-V04.

91051-K35-V03

$17.14

18

DUST SEAL (25X40X5)

91252-K35-V01

$1.96

19

DUST SEAL (25X35X6)

91253-K35-V01

$1.91

20

WASHER, PLAIN (10MM)

94101-10000

Unavailable

21

JOINT B, BRAKE ARM

95015-32001

$0.86

22

BOLT, FLANGE (10X40)

95701-10040-00

$1.38
