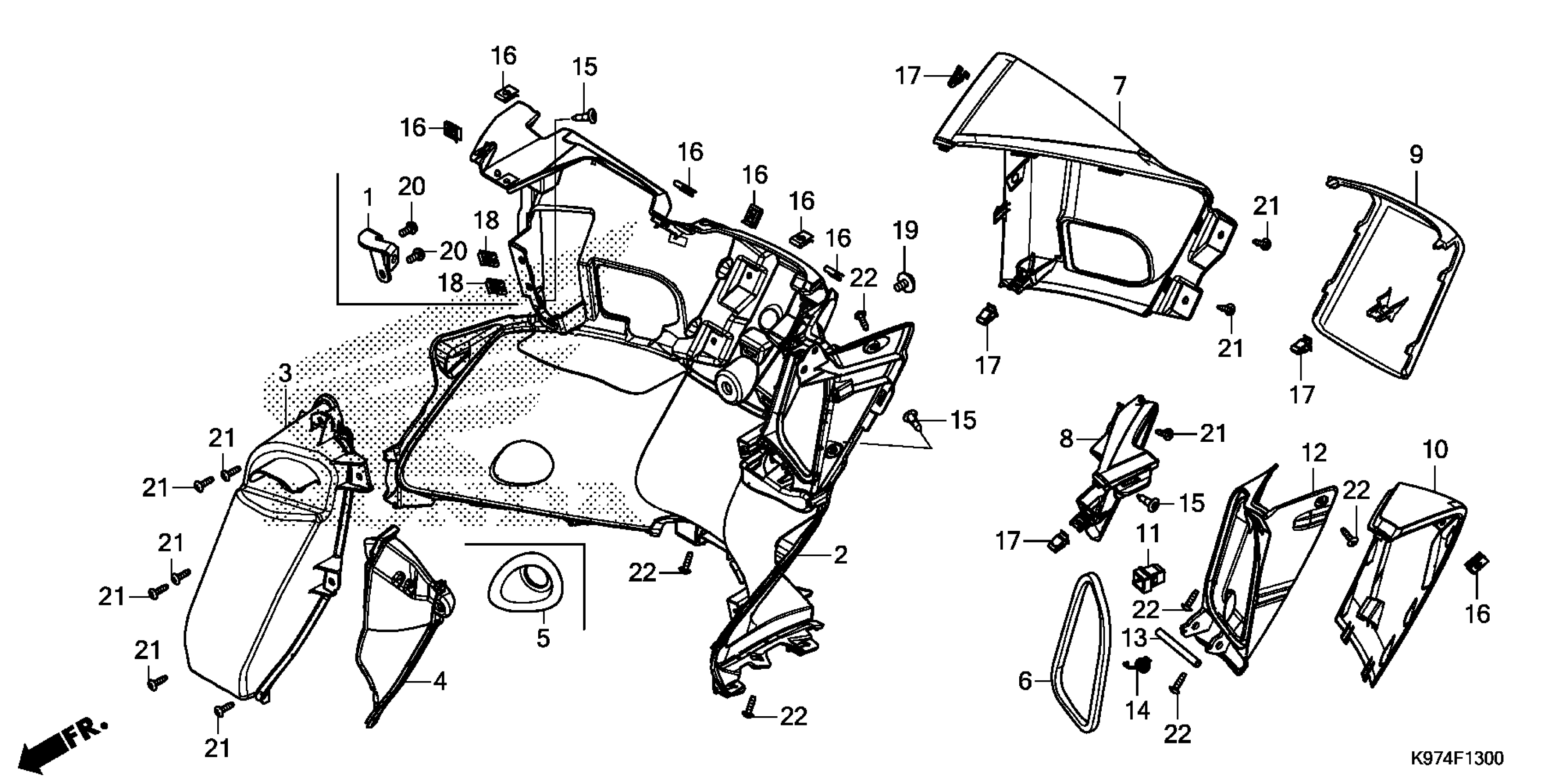

Honda PCX150AC (20) MOTOR SCOOTER, VNM, VIN# RLHKF300-LY000001 INNER COVER Diagram

#

Description
Price

1

STAY

50302-K97-T00

$2.16

2

COVER (INNER) *NH1* (BLACK)

81131-K97-A00ZA

$16.69

3

POCKET (INNER)

81132-K97-T00

$4.38

4

COVER, HINGE

81133-K97-T00

$5.29

5

COVER, BRAKE LOCK KNOB

81134-K97-A00

$4.62

6

SEAL, BOX (INNER)

81136-K97-T00

$2.18

7

OUTER, R. COVER (INNER) *R368C* (CANDY LUSTER RED)

81138-K97-A00ZC

$68.96

8

OUTER *R368C*

81139-K97-T00ZB

$21.38

9

OUTER, COVER (INNER) *NH1* (BLACK)

81140-K96-V00ZA

$1.41

10

LID, POCKET (INNER) *R368C* (CANDY LUSTER RED)

81141-K96-V00ZB

$22.15

11

LATCH

81142-K01-901

$13.04

12

BASE (INNER) *NH1*

81143-K97-T00ZA

$2.89

13

PIN, POCKET (INNER)

81144-K97-T00

$2.18

14

SPG, POCKET (INNER)

81293-K97-T00

$2.25

15

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

16

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

17

CLIP, SNAP FITTING (PO)

90666-K59-A11

Unavailable

18

NUT, CLIP (5MM)

90677-KAN-T00

$0.59

19

BOLT-WASHER (6X12)

93404-06012-07

$1.63

19

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.63

20

SCREW-WASHER (5X12)

93891-05012-08

$1.13

21

SCREW, TAPPING (4X16)

93903-34420

$0.82

22

SCREW, TAPPING (4X16)

93903-34480

$0.90
