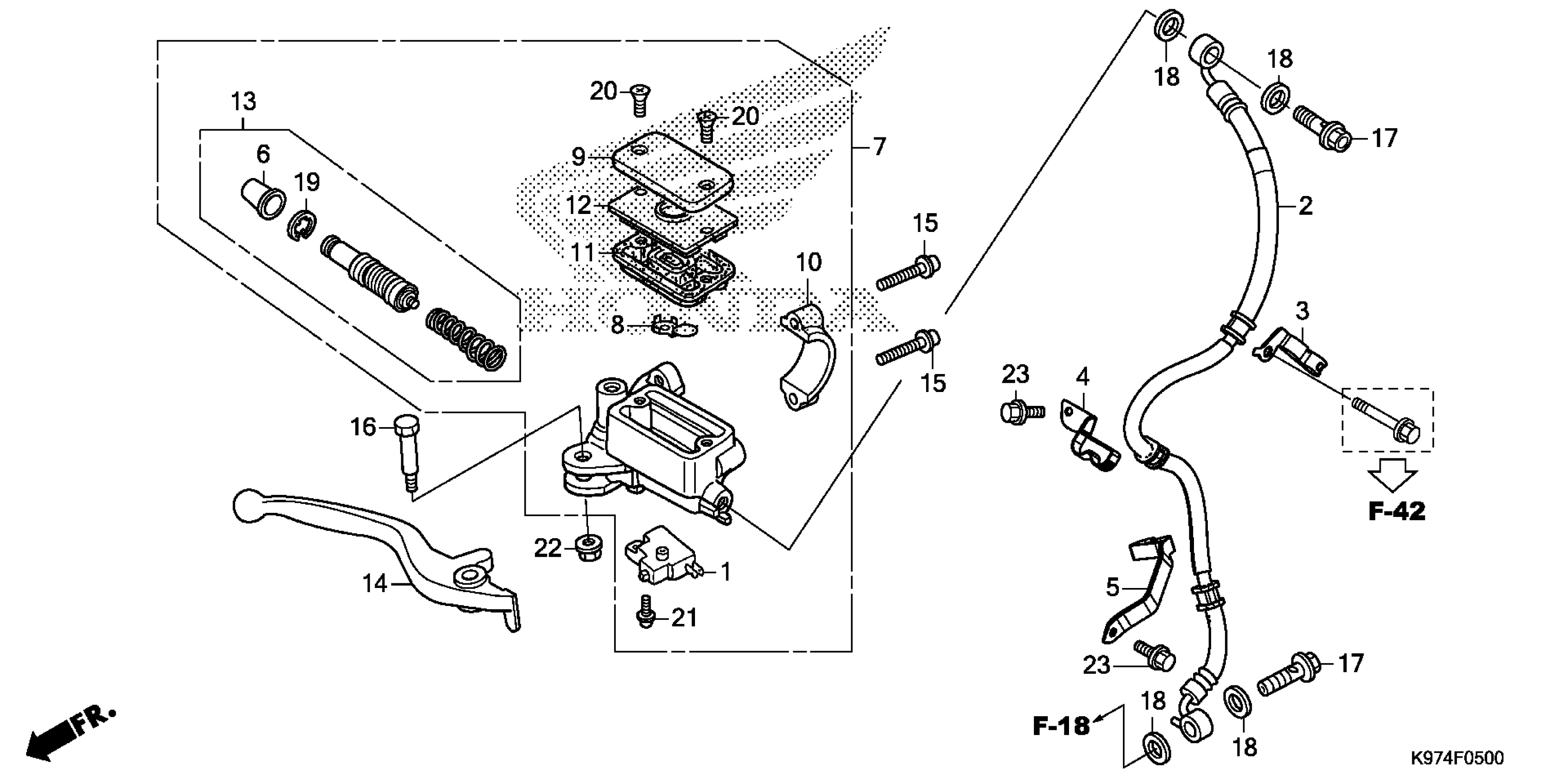

Honda PCX150AC (20) MOTOR SCOOTER, VNM, VIN# RLHKF300-LY000001 FRONT BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

HOSE, FR. BRAKE

45126-K96-J01

$30.13

3

CLAMP A, FR.

45156-K97-T00

$2.21

4

CLAMP B, FR.

45157-K97-T00

$3.11

5

CLAMP C, FR.

45158-K96-V00

$9.44

6

BOOT

45504-410-003

$12.16

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) This part replaces 45510-K35-V01.

45510-K36-305

$64.11

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)

45510-K36-305

$64.11

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

10

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

11

DIAPHRAGM

45520-GE2-006

$9.58

12

PLATE, DIAPHRAGM

45521-K21-901

$2.34

13

MASTER CYLINDER SET

45530-471-831

$40.86

14

LEVER, R. HANDLEBAR

53175-KWN-901

$31.72

15

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$1.49

16

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$1.49

17

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
