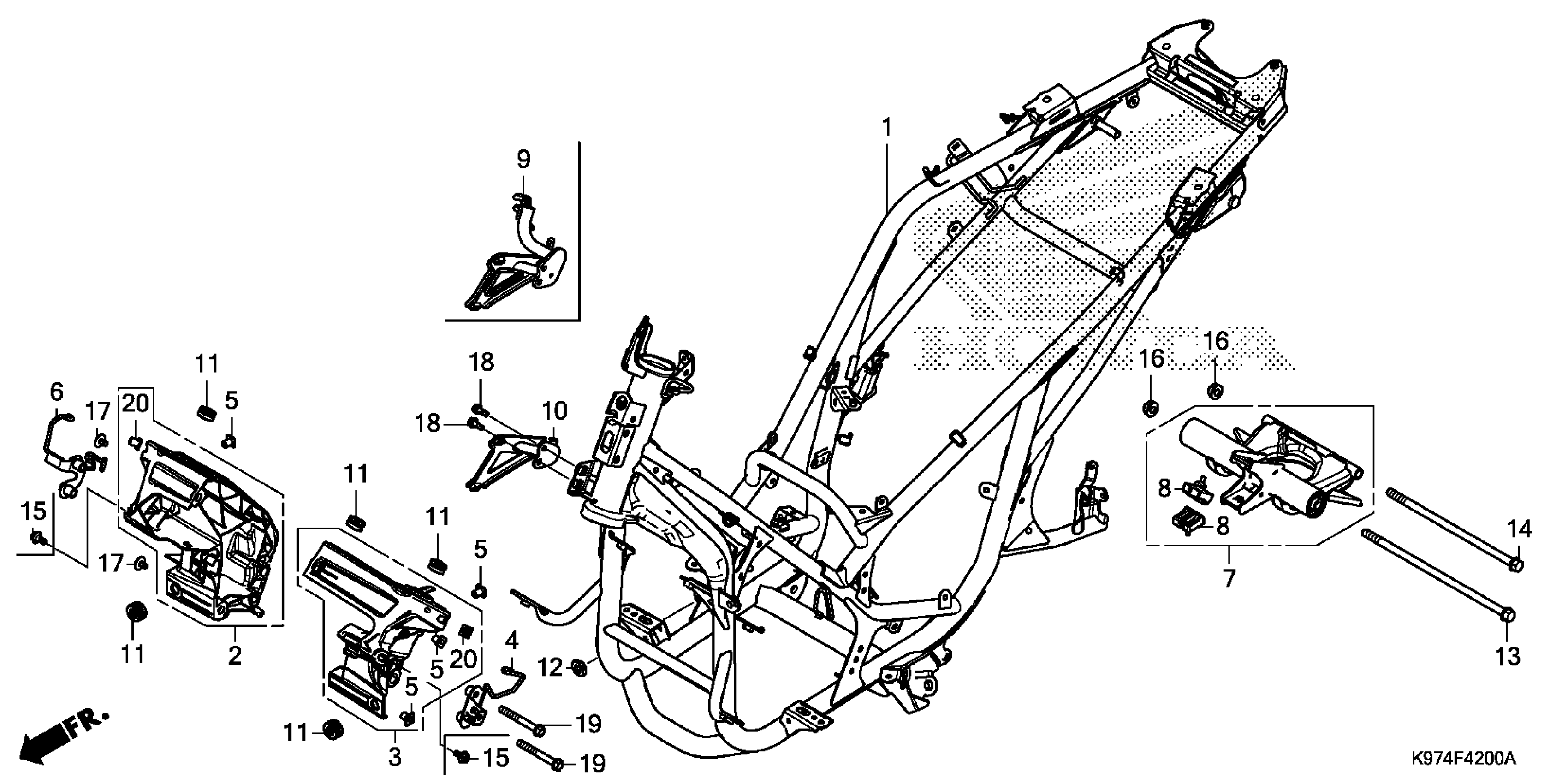

Honda PCX150AC (20) MOTOR SCOOTER, VNM, VIN# RLHKF300-LY000001 FRAME Diagram

FRAME

50100-K97-V00

$347.57

STAY, FR. R COVER

50311-K97-T00

$8.80

STAY, FR. L COVER

50312-K97-T00

$8.02

GUIDE, BRAKE HOSE

50313-K97-T00

$9.68

NUT, FR. COVER STAY

50315-K97-T00

$1.17

COLLAR COMP, FR.

50316-K97-T00

$3.22

LINK, ENG HANGER

50350-K97-T00

$92.94

RUBBER, LINK STOPPER

50352-K35-V00

$5.00

STAY, ELECTRONIC CONTROL UNIT

50622-K97-A00

$30.46

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.22

GROMMET, SIDE COVER

83551-376-000

Unavailable

BOLT, FLANGE (10X270)

90105-KVY-900

$6.32

BOLT, FLANGE (10X238)

90106-GCC-C50

$6.14

NUT, U (10MM)

90304-KGH-901

$2.94

BOLT-WASHER (6X12)

93404-06012-07

$1.48

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.48

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

BOLT, FLANGE (8X70)

95801-08070-08

$2.62
