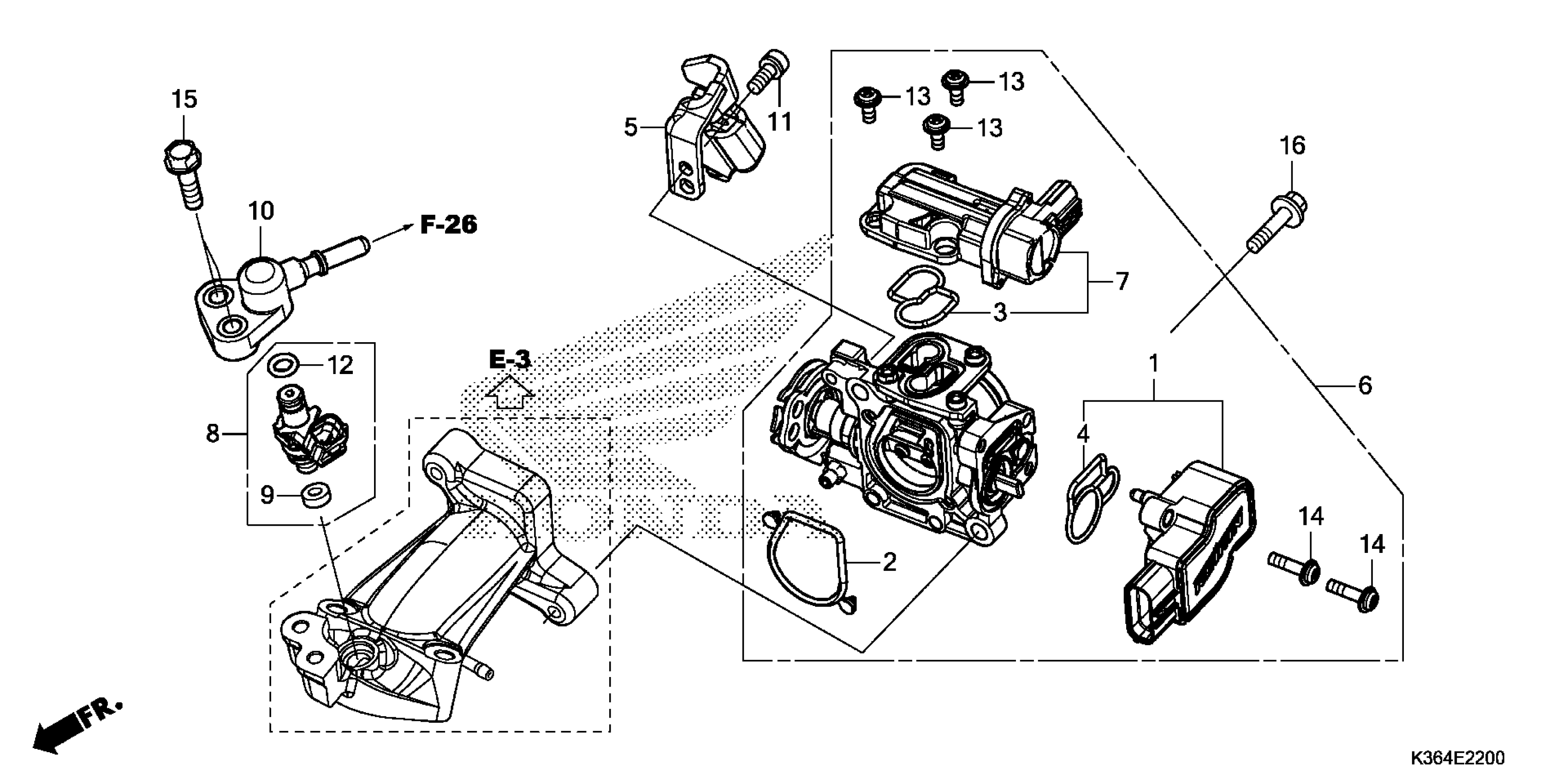

Honda PCX150AC (17) PCX150, VNM, VIN# RLHKF180-HY200001 TO RLHKF180-HY299999 THROTTLE BODY@FUEL INJECTOR Diagram

SENSOR SET

16060-K35-V01

$83.53

O-RING, THROTTLE BODY

16075-K36-J01

$4.08

O-RING

16076-K35-V01

$2.69

O-RING

16077-K35-V01

$4.28

STAY, WIRE

16169-K35-V01

$13.39

BODY ASSY., THROTTLE (GQMNA A) | ARI.DataManager.Fixed.Core.XmlFormat.Translate.ContextNote Use up to Engine SN 5007582.

16400-K36-J01

Unavailable

THROTTLEBODY ASSY. | ARI.DataManager.Fixed.Core.XmlFormat.Translate.ContextNote Use from Engine SN 5007583.

16400-K36-J02

$217.16

VALVE SET, IDLE AIR CONTROL | ARI.DataManager.Fixed.Core.XmlFormat.Translate.ContextNote Use up to Engine SN 5007582.

16430-K35-V01

Unavailable

IACV SET | ARI.DataManager.Fixed.Core.XmlFormat.Translate.ContextNote Use from Engine SN 5007583.

16430-K36-J01

$87.11

INJECTOR ASSY., FUEL

16450-K36-J01

$39.52

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

JOINT, INJECTOR

17560-K35-V00

$23.02

BOLT, SOCKET (5X12)

90001-K35-V00

$1.49

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

SCREW-WASHER (4X10)

93891-04010-08

$1.49

SCREW-WASHER (4X10) This part replaces 93891-04010-18.

93891-04010-08

$1.49

SCREW-WASHER (4X16)

93891-04016-08

$1.49

SCREW-WASHER (4X16) This part replaces 93891-04016-18.

93891-04016-08

$1.49

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
