Description

Price

1

CABLE A, THROTTLE

17910-K35-V01

$15.60

2

CLAMP A, THROTTLE CABLE

17912-K35-V00

$1.32

3

CLAMP B, THROTTLE CABLE

17913-K35-V00

$0.78

4

CLAMP C, THROTTLE CABLE

17914-K35-V00

$1.19

5

CABLE B, THROTTLE

17920-K35-V01

$13.07

6

BAND B1, CABLE BAND A1, CABLE

32161-404-000

$2.16

7

SWITCH UNIT, ENGINE STOP

35130-KWN-671

$12.45

8

SWITCH UNIT, STARTER

35160-KYZ-901

$17.96

9

HOUSING, RR. STARTER SWITCH

35164-GGZ-J02

$13.24

10

HOUSING, STARTER SWITCH

35165-K36-A01

$22.50

11

SWITCH UNIT, DIMMER This part replaces 35170-K35-V01.

35170-K35-V02

$3.22

12

SWITCH UNIT, HORN (TOYO DENSO)

35180-K03-N31

$5.41

13

SWITCH UNIT This part replaces 35200-K35-V01.

35200-K35-V02

$4.09

14

HOUSING, RR. TURN SIGNAL SWITCH

35202-GGZ-J02

$2.63

15

HOUSING, TURN SIGNAL SWITCH

35205-K36-A01

$30.94

16

SWITCH ASSY., RR. STOP

35345-K35-V01

$14.71

17

CABLE, RR. BRAKE FIRST

43440-K35-V01

$11.32

18

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

19

GRIP, THROTTLE (COO)

53140-K35-305

$5.04

20

GRIP, L. HANDLE (COO)

53166-KWN-305

$7.09

21

BRACKET, L. HANDLE LEVER

53172-K35-V00

$6.75

22

BOOT, L. LEVER

53177-K35-V00

$1.35

23

LEVER, L. HANDLEBAR (COO)

53178-K35-305

$11.32

24

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$0.82

25

BOLT, HANDLE LEVER PIVOT

90115-KWN-700

$0.32

26

NUT, HEX. (5MM)

90302-435-761

$2.06

27

BAND, WIRE HARNESS

90652-K35-V00

$1.09

28

SCREW-WASHER (5X20)

93892-05020-07

$0.79

29

SCREW-WASHER (5X25)

93892-05025-07

$1.00

30

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03

31

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

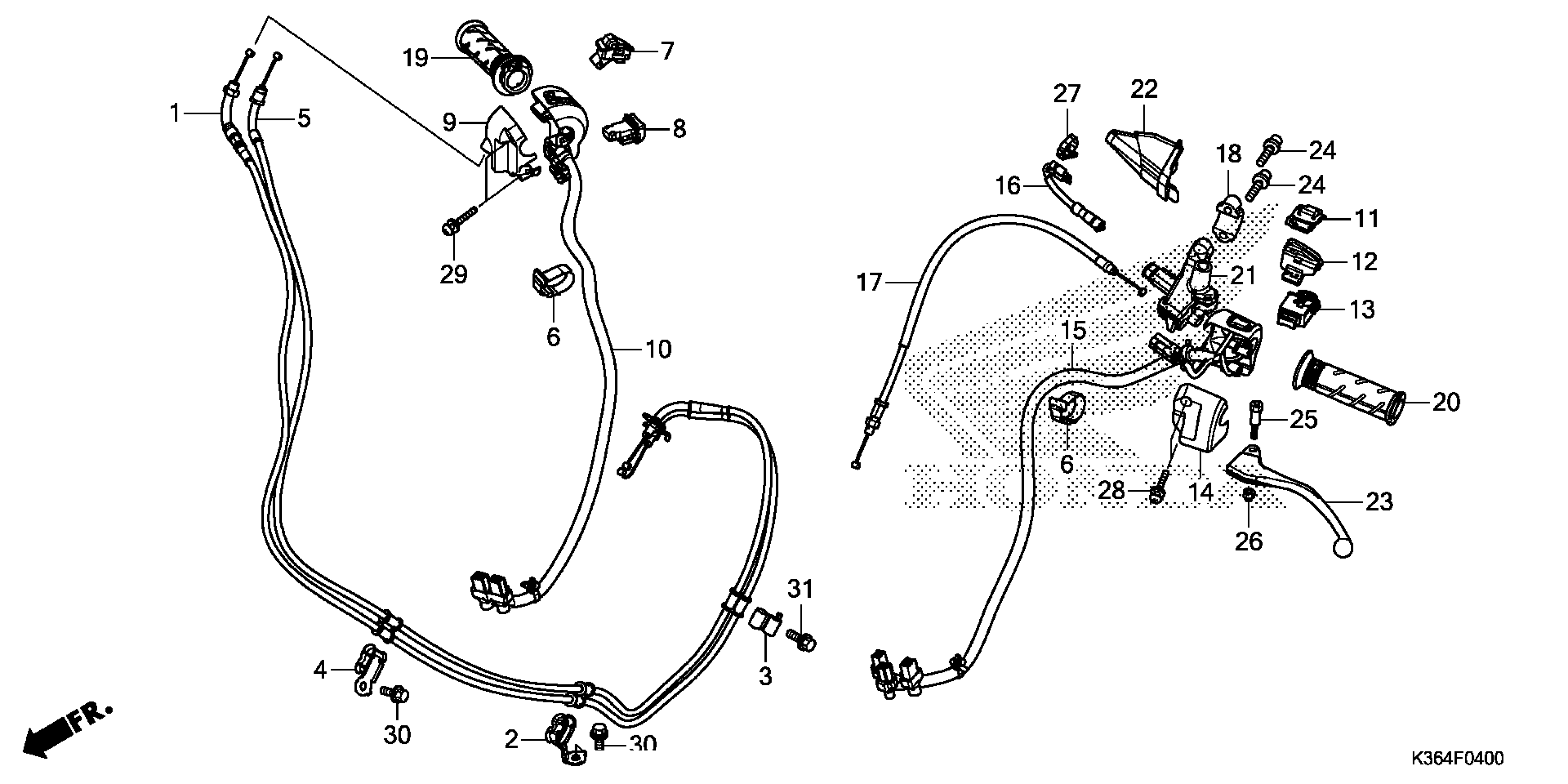

Honda PCX150AC (17) PCX150, VNM, VIN# RLHKF180-HY200001 TO RLHKF180-HY299999 HANDLE LEVER@SWITCH@CABLE Diagram
