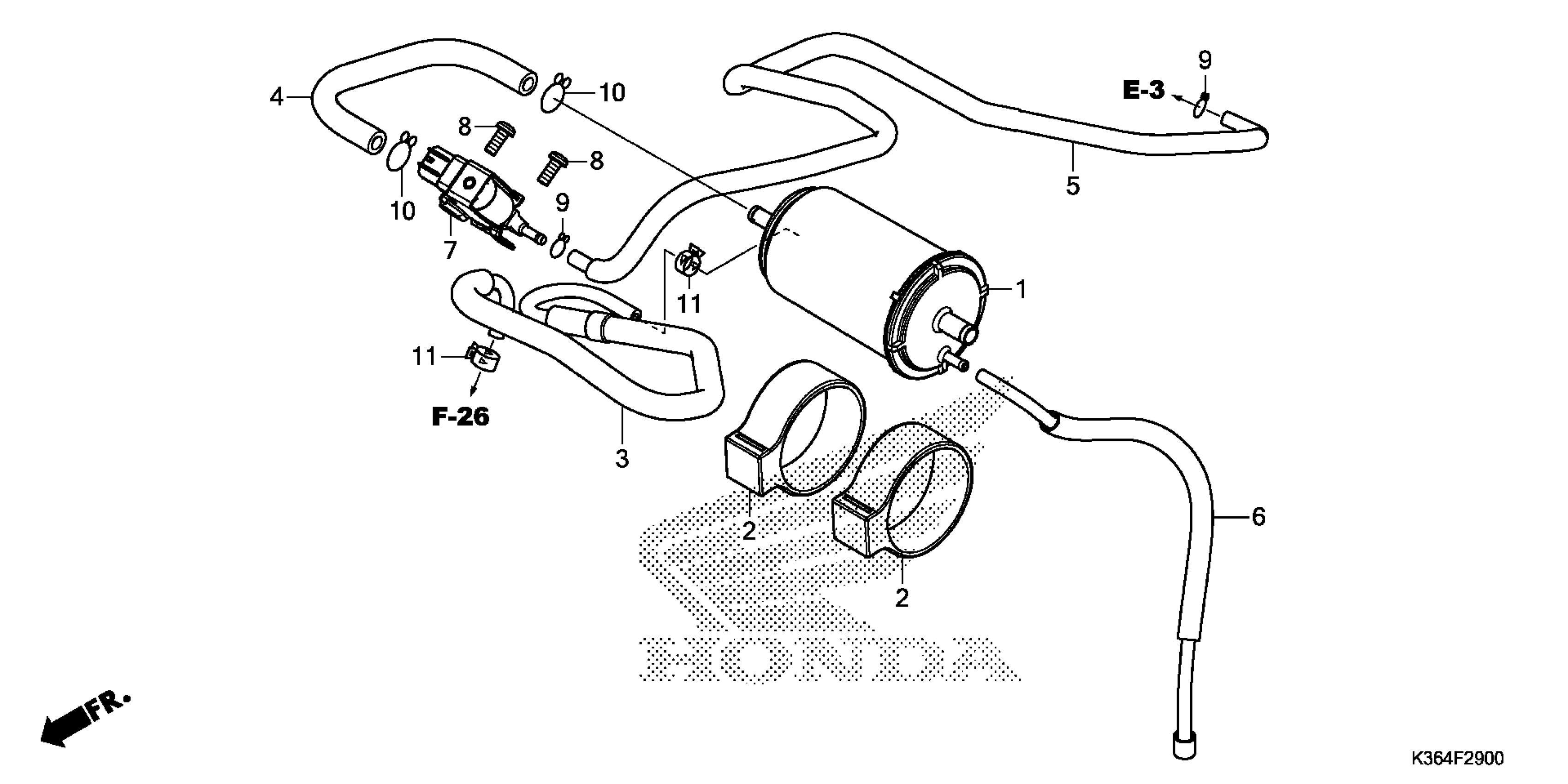

Honda PCX150AC (17) PCX150, VNM, VIN# RLHKF180-HY200001 TO RLHKF180-HY299999 CANISTER Diagram

#

Description
Price

1

CANISTER

17310-K35-V01

$207.11

2

RUBBER, CANISTER MOUNT

17311-K35-V00

$4.61

3

TUBE, CHARGE

17411-K36-A00

$25.66

4

TUBE A, PURGE

17414-K35-V00

$17.44

5

TUBE B, PURGE

17415-K35-V00

$5.52

6

TUBE, DRAIN

17417-K35-V00

$4.33

7

VALVE, PURGE CONTROL SOLENOID

36162-K27-V01

$14.48

8

SCREW, PAN (5X12)

93500-05012-0H

$1.49

9

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

10

CLIP, TUBE (B12)

95002-02120

$2.00

11

CLAMP, TUBE (D7.3)

95002-40730-08

$2.52
