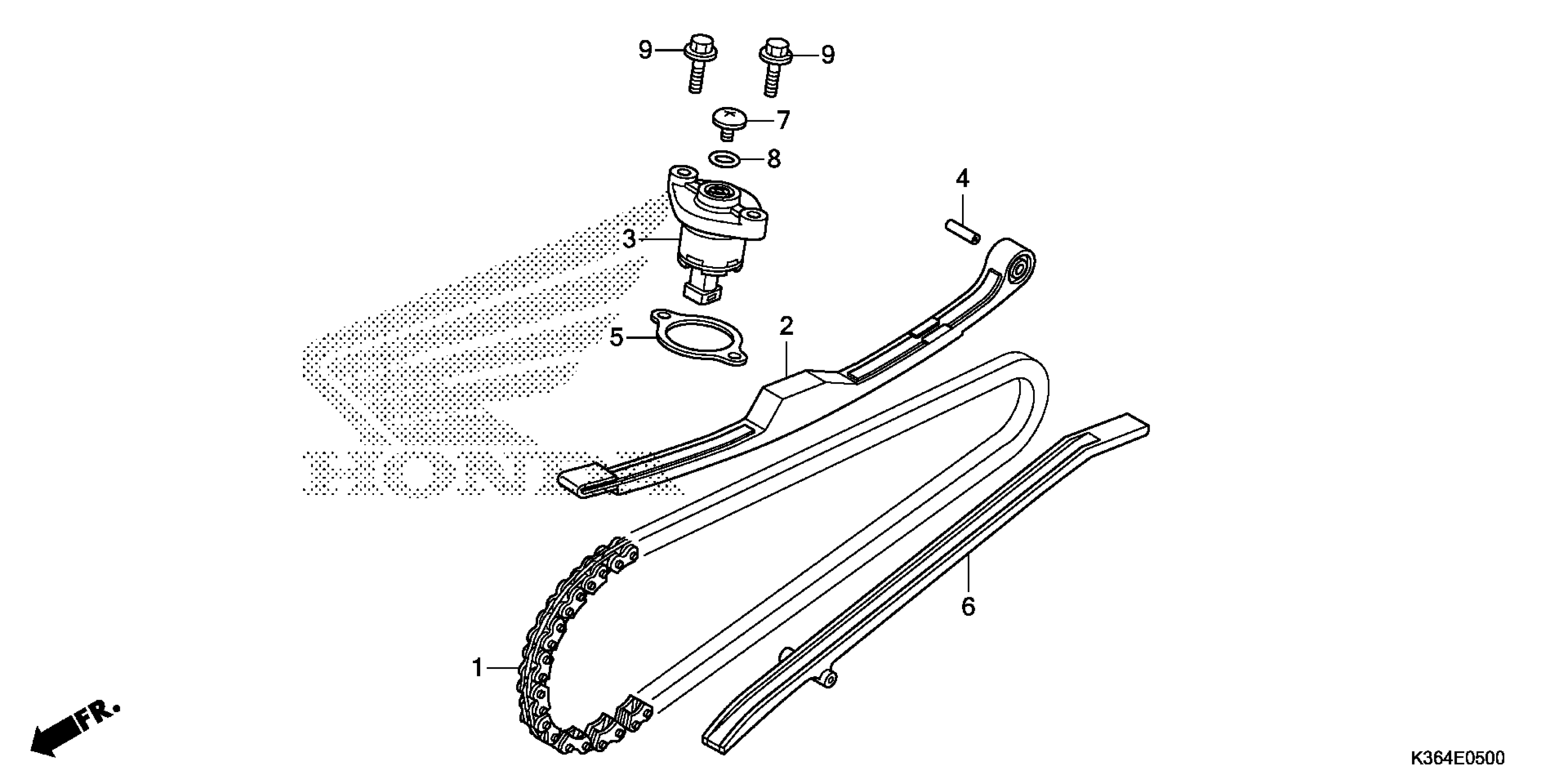

Honda PCX150AC (17) PCX150, VNM, VIN# RLHKF180-HY200001 TO RLHKF180-HY299999 CAM CHAIN@TENSIONER Diagram

CHAIN, CAM (92L) (DAIDO)

14401-KSS-931

$47.90

TENSIONER ASSY., CAM CHAIN

14510-KZR-600

$12.90

LIFTER ASSY., TENSIONER

14520-KZR-602

$54.81

PIVOT, CAM CHAIN TENSIONER

14531-KZR-600

$0.62

GASKET, TENSIONER LIFTER

14560-KZR-600

$1.10

GUIDE, CAM CHAIN

14611-K01-900

$2.33

SCREW, PAN (6X6)

90005-KY7-000

$3.01

O-RING (1.5X9.5)

91306-MG3-000

$2.12

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
