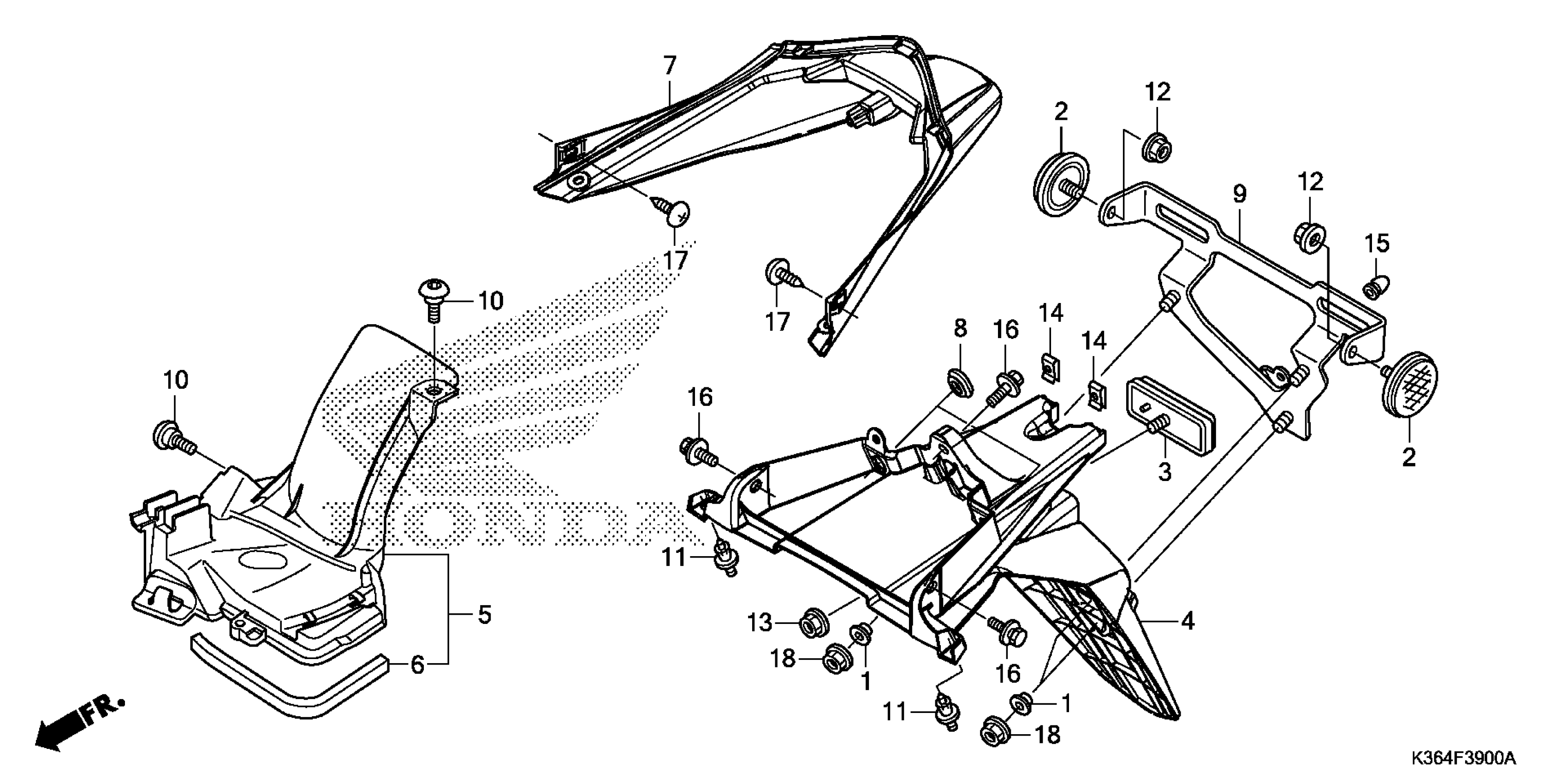

Honda PCX150AC (16) PCX150, VNM, VIN# RLHKF180-GY100001 TO RLHKF180-GY199999 REAR FENDER Diagram

COLLAR

19416-KZL-930

$2.59

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

FENDER, RR.

80105-K36-A00

$78.02

FENDER ASSY., RR. (INNER)

80106-KZR-601

$17.20

SEAL, RR. FENDER (INNER)

80108-KZR-600

$1.93

COVER SET, LICENSE LIGHT *NH1* (WL) (BLACK)

80110-K35-V00ZA

$6.02

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BRACKET, NUMBER PLATE

84700-K36-A00

$28.13

BOLT, SOCKET (6X18)

90001-KWR-000

$1.49

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, U (5MM)

90301-KWN-901

$1.49

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

PLUG, CONE TYPE

90899-422-610

$1.89

BOLT-WASHER (6X12)

93404-06012-00

$1.55

SCREW, TAPPING (5X16)

93903-35320

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
