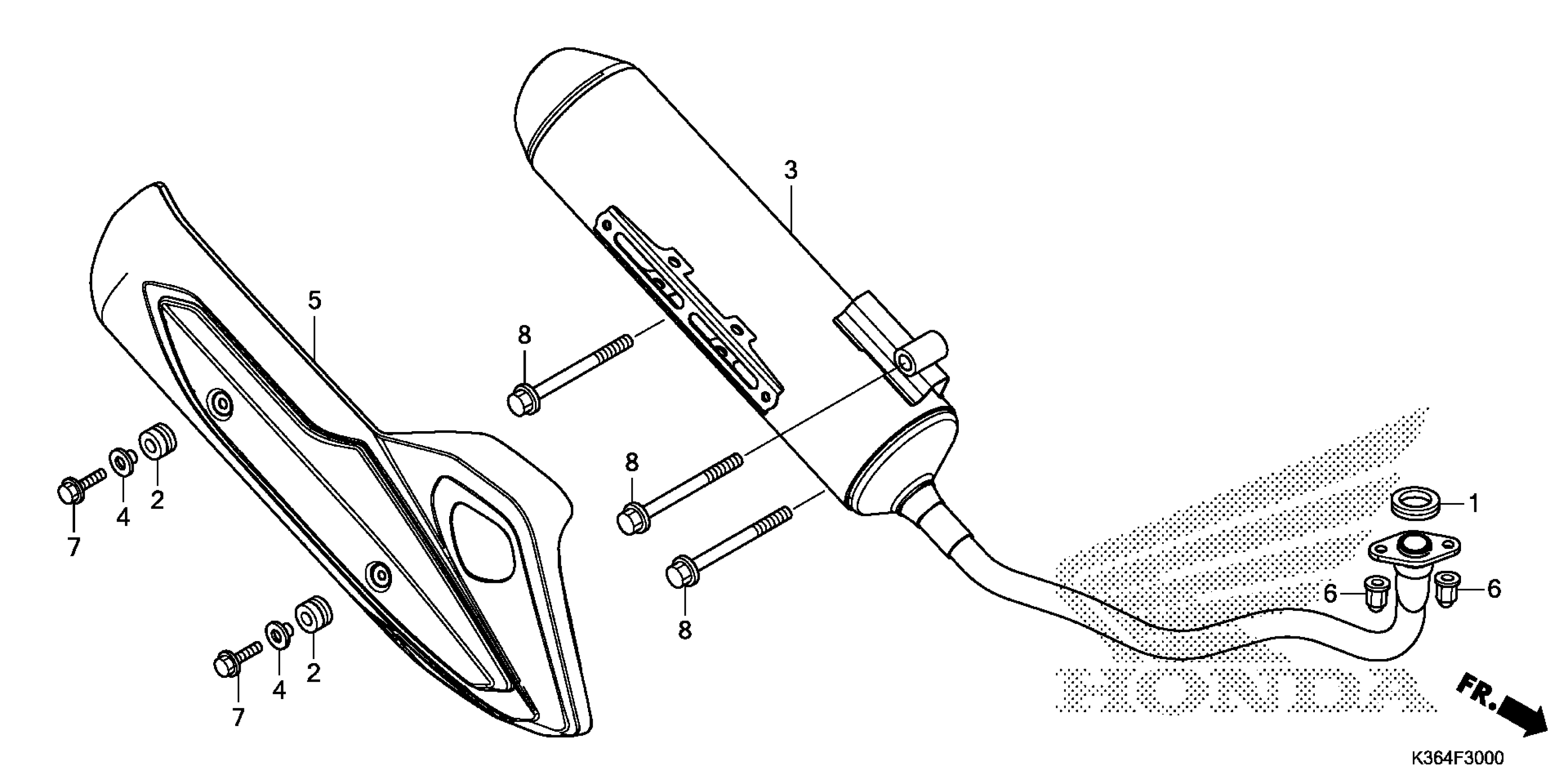

Honda PCX150AC (16) PCX150, VNM, VIN# RLHKF180-GY100001 TO RLHKF180-GY199999 MUFFLER Diagram

#

Description

Price

1

GASKET, EX. PIPE

18291-GE2-921

$1.76

2

RUBBER, PROTECTOR GASKET

18293-KSB-900

$1.49

3

MUFFLER, EX. (COO)

18300-K36-305

$588.13

4

COLLAR, MUFFLER PROTECTOR

18316-KVB-900

$1.68

5

PROTECTOR, MUFFLER

18318-K35-V00

$6.60

6

NUT, CAP (7MM)

90304-MJ0-920

$4.71

7

BOLT, FLANGE (6X16) (Honda Code 2545309)

95701-06016-02

$0.99

8

BOLT, FLANGE (10X65)

95701-10065-07

$2.03
