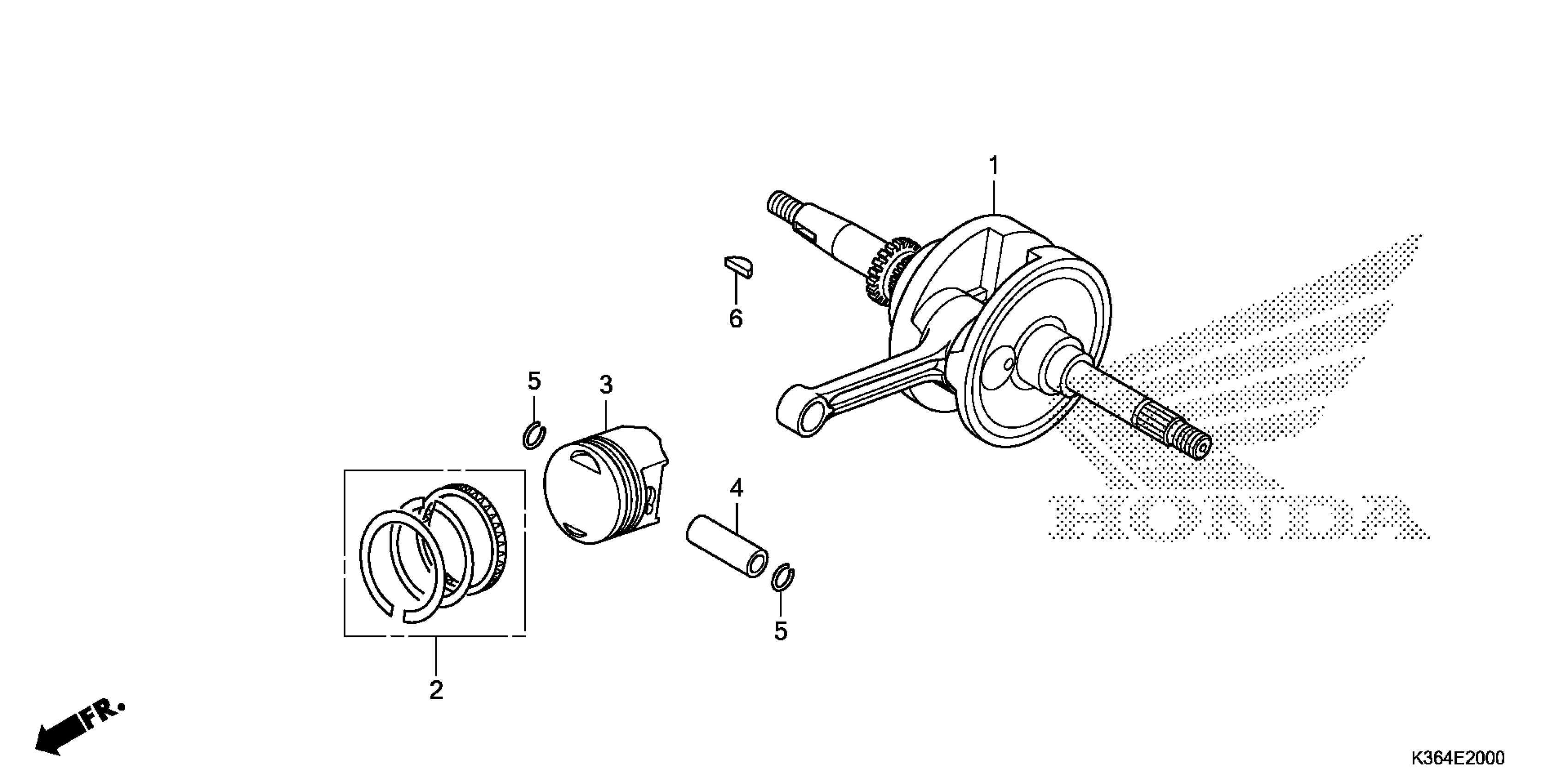

Honda PCX150AC (16) PCX150, VNM, VIN# RLHKF180-GY100001 TO RLHKF180-GY199999 CRANKSHAFT@PISTON Diagram

#

Description

Price

1

CRANKSHAFT

13000-KZY-701

$123.32

2

RING SET, PISTON (STD) (RIKEN)

13011-KZY-700

$12.29

2

RING SET, PISTON (0.25) (RIKEN) | (Optional).

13021-KZY-700

$11.51

2

RING SET, PISTON (0.50) (RIKEN) | (Optional).

13031-KZY-700

$11.01

3

PISTON

13101-KZY-700

$27.75

3

PISTON (0.25) | (Optional).

13102-KZY-700

$42.47

3

PISTON (0.50) | (Optional).

13103-KZY-700

$42.47

4

PIN, PISTON

13111-KGF-910

$14.51

5

CLIP, PISTON PIN (14MM)

13115-KZY-700

$0.82

6

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.62

6

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.62

6

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.62
