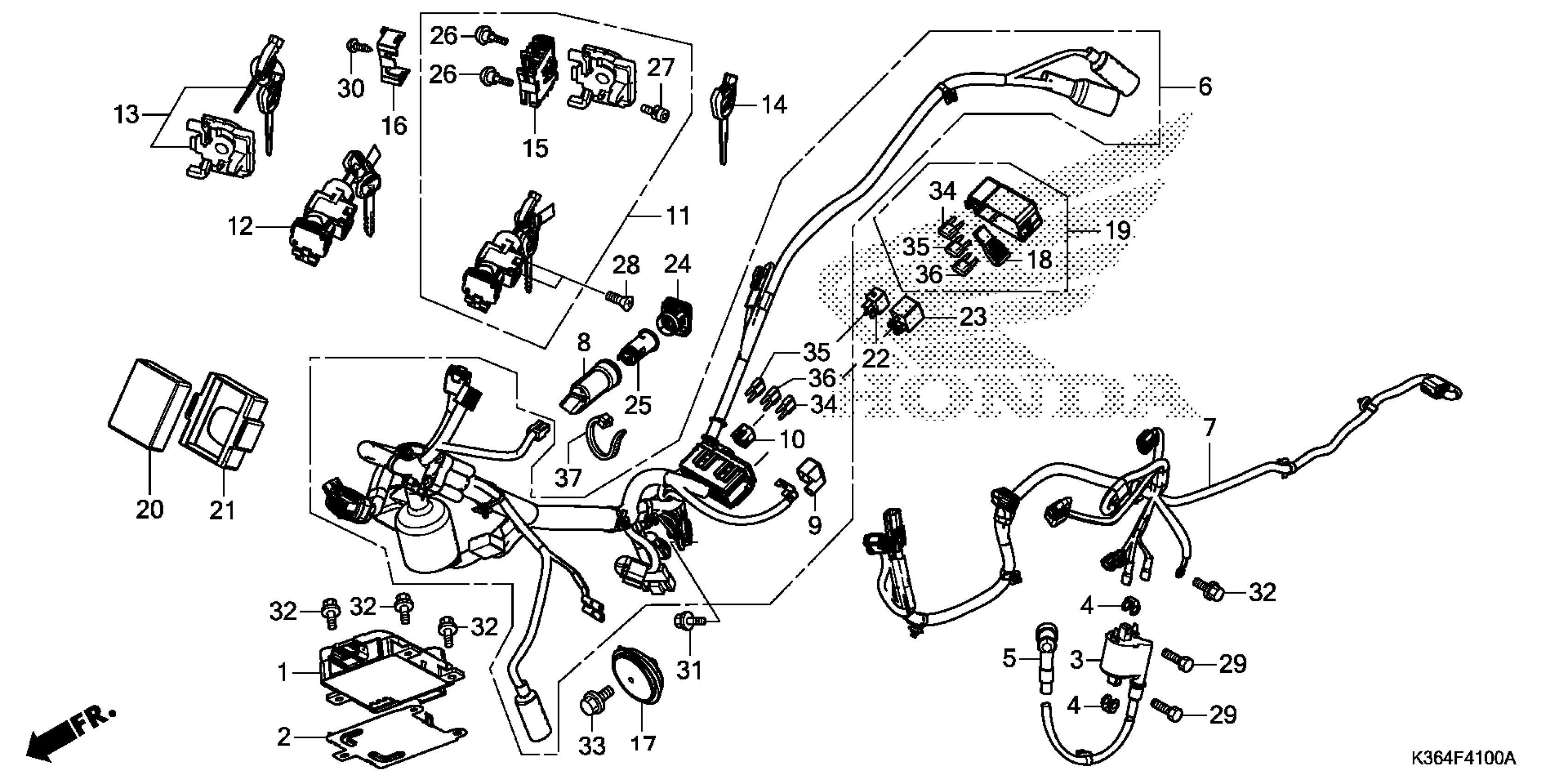

Honda PCX150AC (15) PCX150, VNM, VIN# RLHKF180-FY000001 TO RLHKF180-FY099999 WIRE HARNESS Diagram

#

Description
Price

1

CONTROL UNIT, ENGINE

30400-K36-A01

$475.62

2

COVER, ENGINE CONTROL UNIT

30401-K35-V00

$1.87

3

COIL, IGNITION

30510-K35-V01

$14.71

4

SPACER, IGNITION COIL

30520-GFM-900

$2.61

5

CAP ASSY., NOISE SUPPRESSOR (TOYO)

30700-KWN-981

$14.79

6

WIRE HARNESS

32100-K36-A01

$473.93

7

SUB-HARNESS ENG | ARI.DataManager.Fixed.Core.XmlFormat.Translate.ContextNote Use from Frame SN 5007583.

32104-K35-V01

$58.77

8

COVER, ACCESSORY SOCKET

32107-K04-930

$3.97

9

COVER, BATTERY TERMINAL

32412-MV4-000

$4.66

10

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

11

SWITCH ASSY. This part replaces 35100-K35-V01.

35100-K35-V02

$43.63

12

SWITCH, COMBINATION & LOCK

35101-K35-V01

$29.33

13

SHUTTER, KEY This part replaces 35110-K35-V01.

35110-K35-V02

$22.69

13

SHUTTER, KEY

35110-K35-V02

$22.69

14

KEY, BLANK (V0KEYTOP2REPORDER) (NOT AVAILABLE) | (Optional).

35121-K35-V00

Unavailable

15

SWITCH ASSY., FUEL LID & SEAT OPENER This part replaces 35190-K35-V01.

35190-K35-V02

$7.03

15

SWITCH ASSY., FUEL LID & SEAT OPENER

35190-K35-V02

$7.03

16

COVER, CABLE

35191-K27-V01

$1.92

17

HORN (LOW)

38120-KWN-711

$67.92

18

PULLER, MINI FUSE

38235-SNA-A01

$3.84

19

COVER (UPPER)

38255-K35-V01

$4.74

20

LED CONTROL UNIT This part replaces 38300-K36-A01.

38300-K35-V32

$123.90

21

SUSPENSION, LED CONTROL UNIT

38301-K35-V00

$1.67

22

RELAY ASSY., POWER (MICRO ISO 4P) (MITSUBA)

38501-KVZ-631

$10.74

23

RELAY, POWER (PANASONIC)

38502-KWN-701

$34.93

24

CAP ASSY.

39620-K12-901

$14.28

25

SOCKET ASSY.

39624-SZ3-L01

$23.62

26

SCREW, SCREEN SETTING

90101-MT4-000

$1.79

27

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

28

SCREW, U-LOCK FLAT (6X12)

90164-KZL-A00

$1.84

29

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

30

SCREW, TAPPING (4X12)

93901-24320

$1.49

31

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

32

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

33

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

34

FUSE, MINI (5A) (Honda Code 5026521)

98200-40500

$1.49

35

FUSE, MINI (10A)

98200-41000

$1.49

36

FUSE, MINI (25A)

98200-42500

$1.51
