Partiron

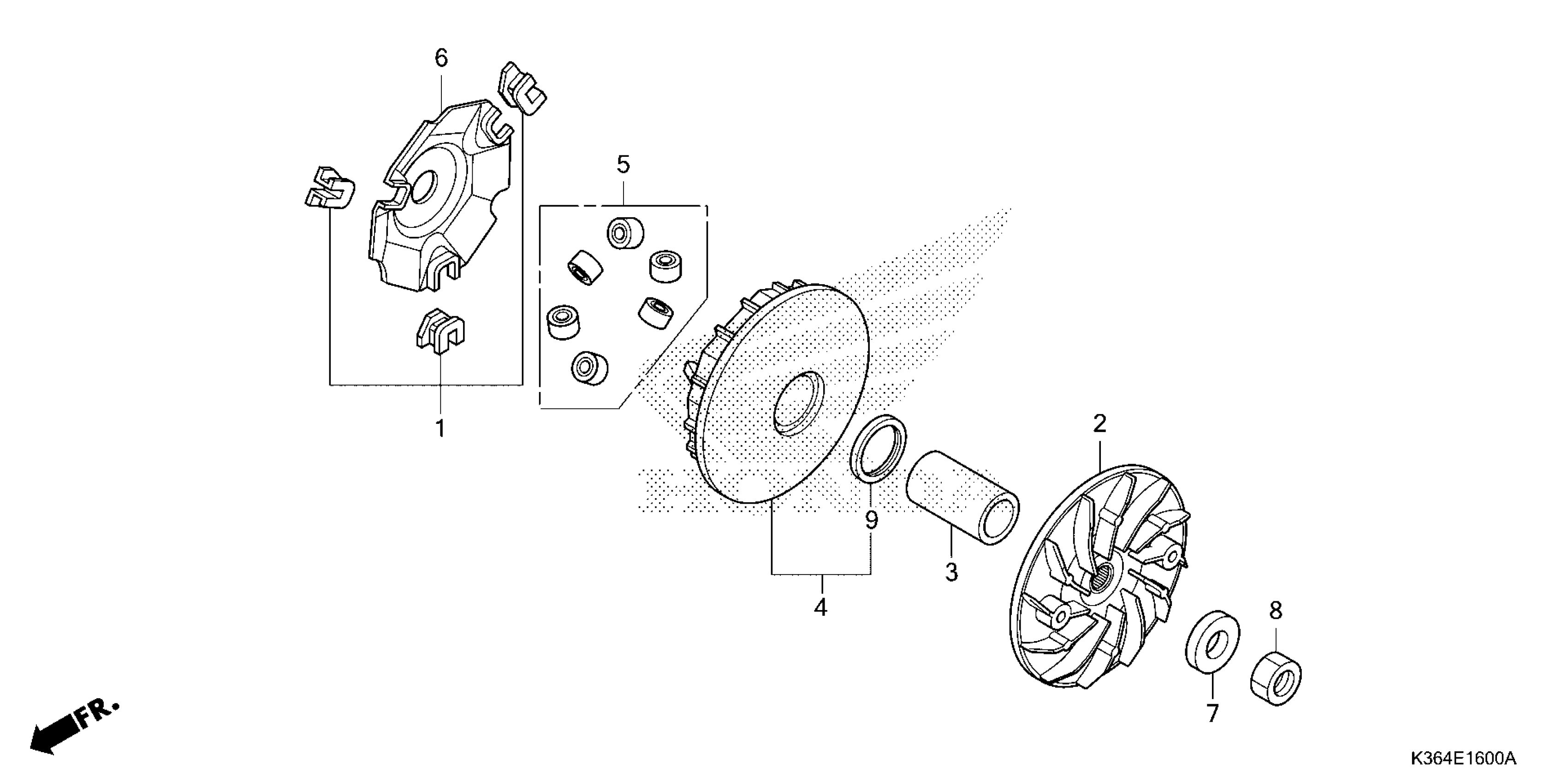

Honda PCX150AC (15) PCX150, VNM, VIN# RLHKF180-FY000001 TO RLHKF180-FY099999 DRIVE FACE Diagram

#

Description
Price

1

PIECE SET, SLIDE

22011-KWN-900

Unavailable

2

FACE, DRIVE

22102-K35-V00

$5.57

3

BOSS, DRIVE FACE

22105-KWN-900

$4.43

4

FACE, MOVABLE DRIVE

22110-K36-A00

$14.52

5

ROLLER SET, WEIGHT

22123-K01-900

$39.41

6

PLATE, RAMP

22131-KWN-900

$9.79

7

WASHER (15X29X7)

90401-KWN-900

$1.85

8

NUT, HEX. (14MM)

94030-14200

$1.25

9

OIL SEAL (24X31X3.5)

91203-K35-V01

$1.37
