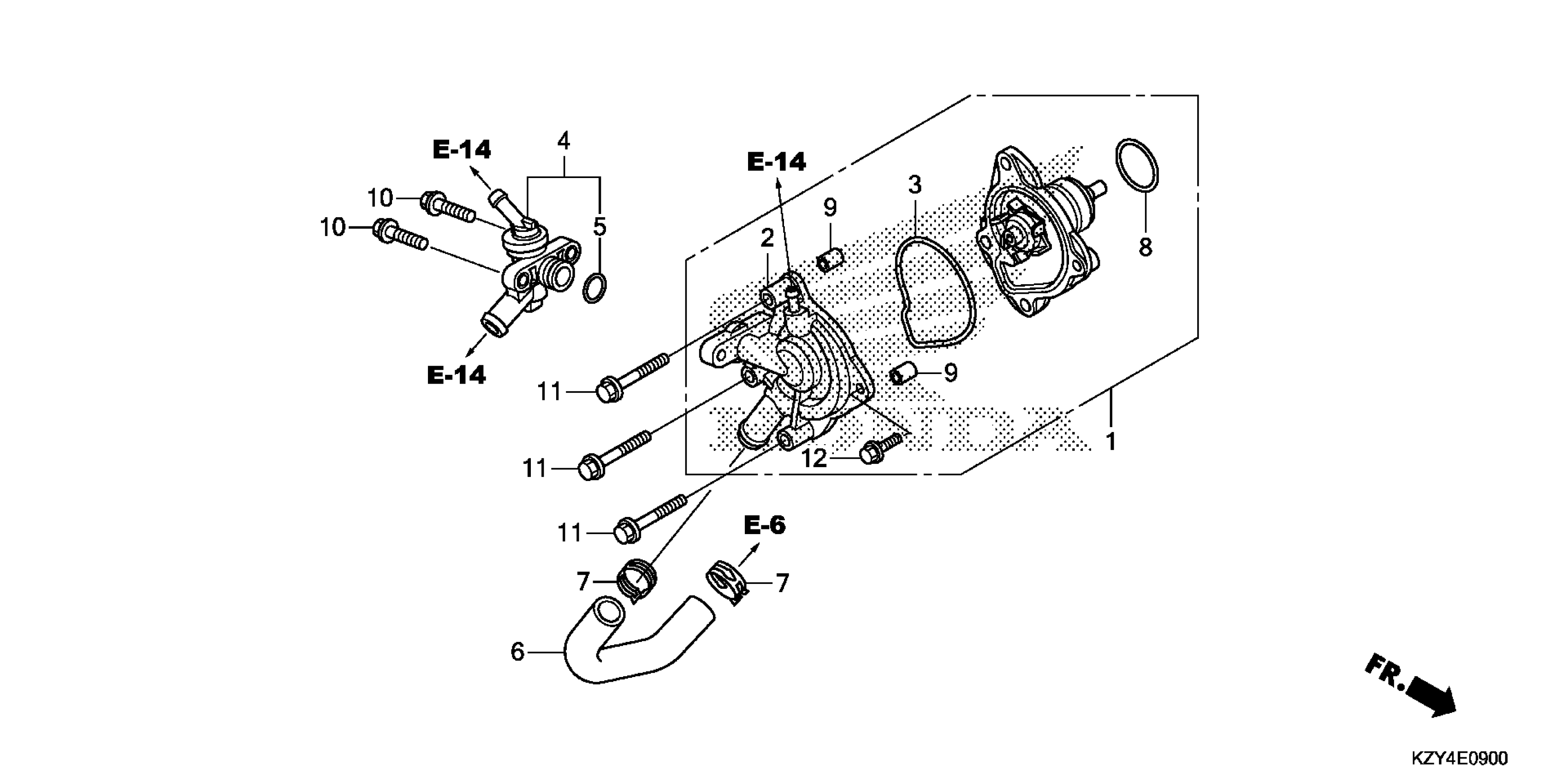

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY.

19200-KWN-901

$87.10

2

COVER, WATER PUMP

19220-KWN-901

$20.64

3

GASKET, WATER PUMP COVER

19226-KWN-900

$1.49

4

THERMOSTAT ASSY.

19300-KWN-901

$74.66

5

O-RING

19381-KWN-900

$1.93

6

HOSE C, WATER

19503-KWN-900

$7.51

7

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$1.49

8

O-RING (34X2)

91302-KWN-900

$1.49

9

PIN, DOWEL (8X10)

94301-08100

$2.25

10

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

11

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

12

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
