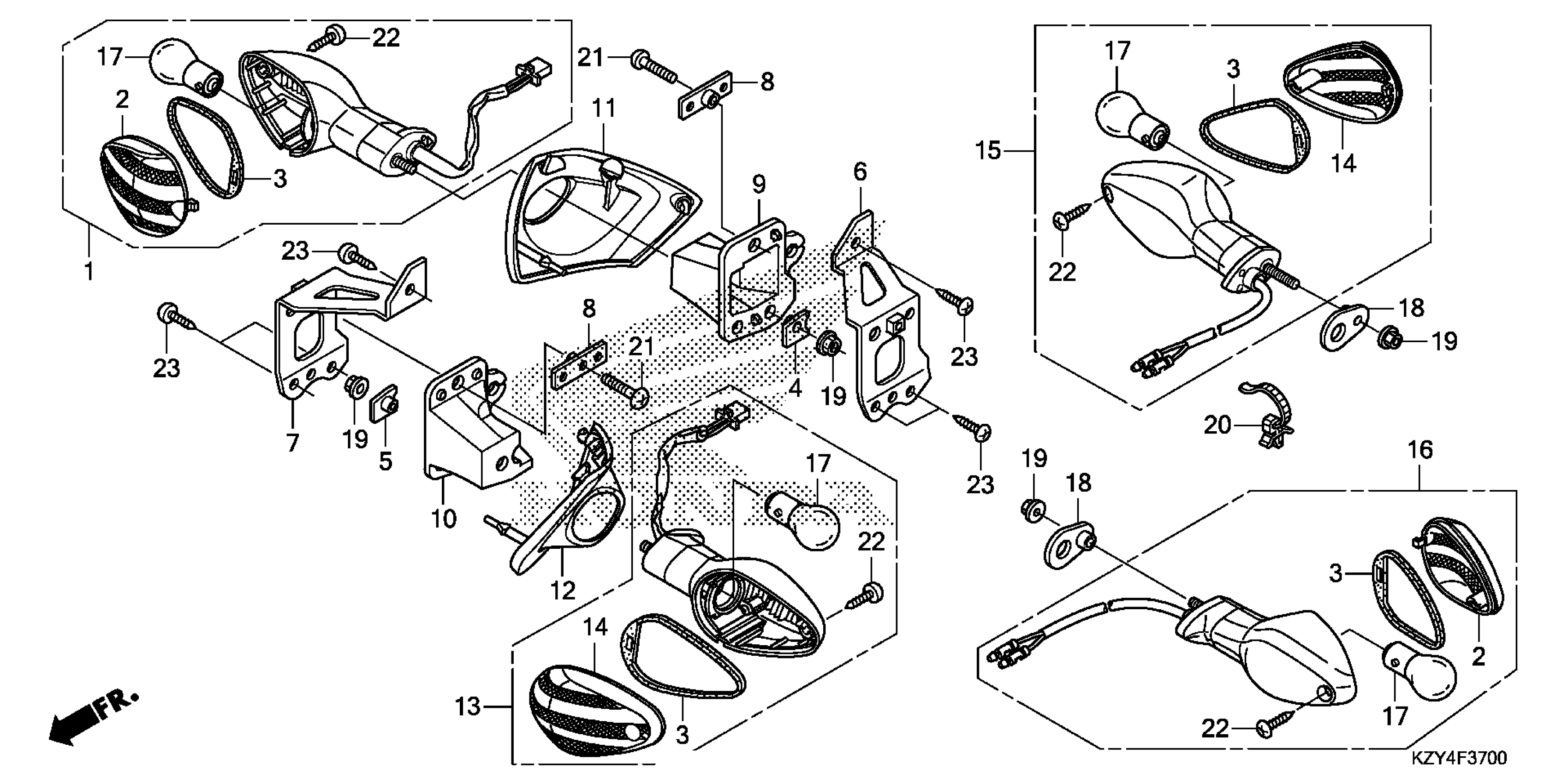

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (12V 21W) (COO) This part replaces 33400-KWN-305.

33400-KWN-315

$113.31

1

TURN SIGNAL ASSY., R. FR. (12V 21W) (COO)

33400-KWN-315

$113.31

2

LENS, R. TURN SIGNAL (COO) (R. FR./L. RR.)

33402-KWN-305

$8.58

3

GASKET, LENS

33407-MFJ-A41

$3.13

4

BACK PLATE, R. TURN SIGNAL

33411-KWN-670

$1.49

5

BACK PLATE, L. TURN SIGNAL

33412-KWN-670

$1.49

6

SUPPORT, R. TURN SIGNAL

33413-KWN-670

$3.54

7

SUPPORT, L. TURN SIGNAL

33414-KWN-670

$3.54

8

PLATE, TURN SIGNAL

33415-KWN-670

$2.33

9

STAY, R. FR. TURN SIGNAL

33417-KWN-670

$5.43

10

STAY, L. FR. TURN SIGNAL

33418-KWN-670

$14.25

11

COVER, R. TURN SIGNAL

33421-KWN-670

$20.00

12

COVER, L. TURN SIGNAL

33422-KWN-670

$20.00

13

TURN SIGNAL ASSY., L. FR. (12V 21W) (COO) This part replaces 33450-KWN-305.

33450-KWN-315

$113.31

13

TURN SIGNAL ASSY., L. FR. (12V 21W) (COO)

33450-KWN-315

$113.31

14

LENS, L. TURN SIGNAL (COO) (L. FR./R. RR.)

33452-KWN-305

$10.02

15

TURN SIGNAL ASSY., R. RR. (12V 21W) (COO) This part replaces 33600-KWN-305.

33600-KWN-315

$113.31

15

TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)

33600-KWN-315

$113.31

16

TURN SIGNAL ASSY., L. RR. (12V 21W) (COO) This part replaces 33650-KWN-305.

33650-KWN-315

$113.31

16

TURN SIGNAL ASSY., L. RR. (12V 21W) (COO)

33650-KWN-315

$113.31

17

BULB, TURN SIGNAL (12V 21W)

34905-MAS-601

$3.17

18

PLATE, RR. TURN SIGNAL SETTING

80115-KWN-670

$2.51

19

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

20

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

$6.24

21

SCREW, PAN (6X16)

93500-06016-0A

$1.49

22

SCREW, TAPPING (4X16)

93901-34480

$1.49

23

SCREW, TAPPING (4X16)

93903-34410

$1.49
