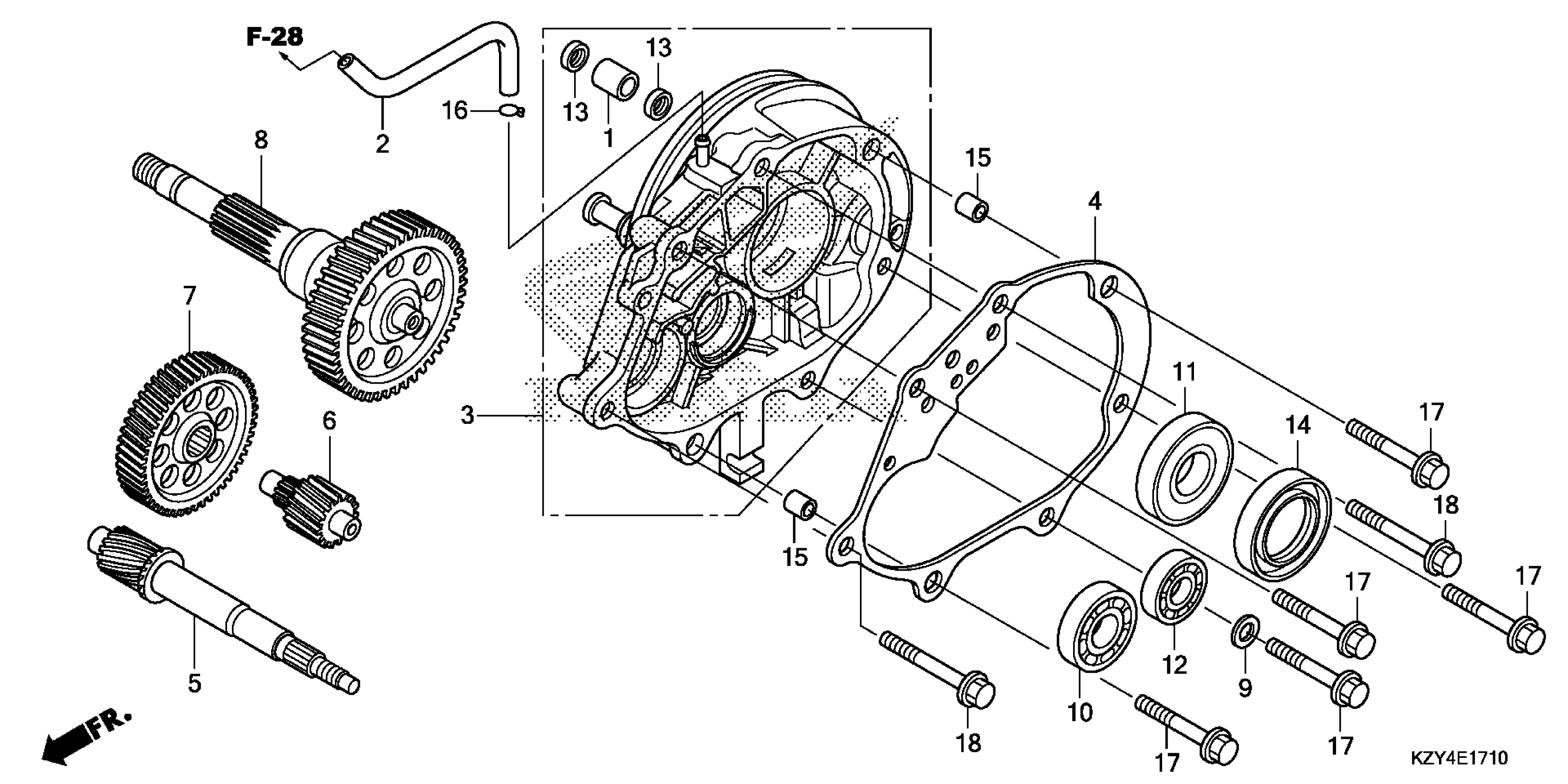

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 TRANSMISSION Diagram

SLEEVE, RR. BRAKE CAM

11204-KGF-900

$8.12

TUBE, TRANSMISSION BREATHER

11211-KZR-600

$3.50

CASE, TRANSMISSION

21200-KWN-710

$249.72

GASKET, TRANSMISSION CASE

21395-KZR-600

$4.41

SHAFT, DRIVE (17T) This part replaces 23411-KZR-600.

23411-KZR-601

$18.79

SHAFT, DRIVE (17T)

23411-KZR-601

$18.79

COUNTERSHAFT (13T)

23421-KZR-600

$11.97

GEAR, COUNTERSHAFT (53T)

23422-KWN-900

$17.01

GEAR, FINAL (44T)

23430-KZR-600

$39.37

WASHER, SEALING (8MM)

90495-MN5-000

$3.40

BEARING, RADIAL BALL (6202) (NTN)

91004-KZR-601

$8.17

BEARING, RADIAL BALL (6202) (FUJIKOSHI)

91004-KZR-602

$8.65

BEARING, RADIAL BALL (6205-2NSG) (FUJIKOSHI)

91006-KAB-004

$37.75

BEARING, RADIAL BALL (6205UU) (NTN)

91009-KWN-901

$7.11

BEARING, RADIAL BALL (6201) (NTN)

91006-KZR-601

$7.01

BEARING, RADIAL BALL (6201) (FUJIKOSHI)

91006-KZR-602

$7.37

OIL SEAL (14X20X3.2)

91201-434-003

$4.07

OIL SEAL (34X52X7)

91204-KWN-900

Unavailable

PIN, DOWEL (10X12)

94301-10120

$2.80

CLIP, TUBE (C9)

95002-50000

$1.16

BOLT, FLANGE (8X45)

95701-08045-00

$1.35

BOLT, FLANGE (8X55)

95701-08055-00

$2.80
