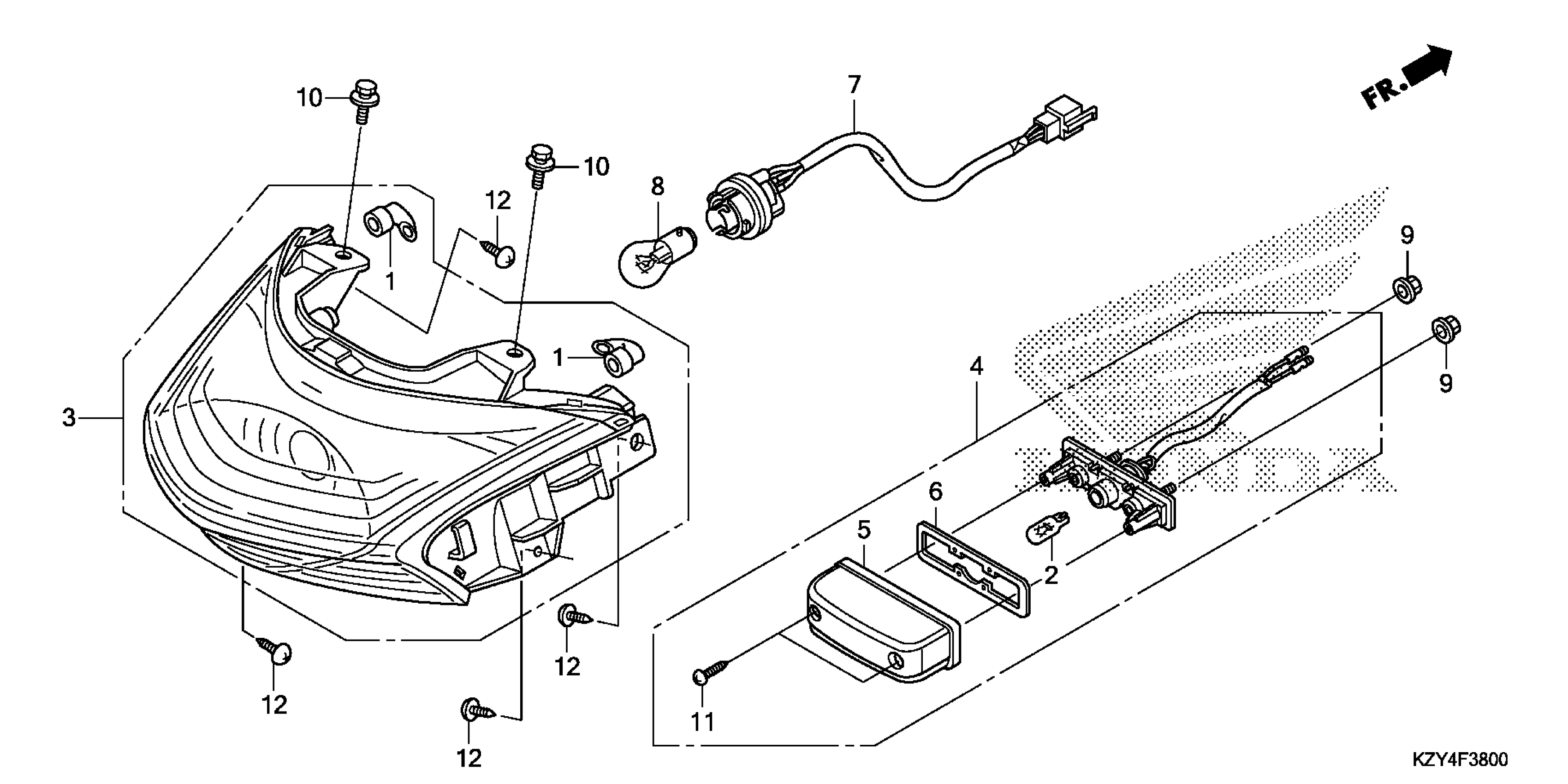

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 TAILLIGHT Diagram

#

Description

Price

1

PIPE, CP

33113-KVB-T01

$1.49

2

BULB, POSITION (12V 5W) (STANLEY)

33301-K07-901

$3.36

3

TAILLIGHT (COO)

33710-KWN-305

$65.97

4

LIGHT ASSY., LICENSE (COO)

33720-KZY-305

$14.69

5

COVER, LICENSE (COO) This part replaces 33722-KWN-901.

33722-K26-305

$10.56

5

COVER, LICENSE (COO)

33722-K26-305

$10.56

6

GASKET, LENS

33729-MCZ-003

$9.48

7

SOCKET, TAILLIGHT

33750-KWN-901

$7.52

8

BULB, STOP & TAILLIGHT (12V 21/5W)

34906-KWN-711

$3.59

9

NUT, U (5MM)

90301-KWN-901

$1.49

10

BOLT-WASHER (6X12)

93404-06012-00

$1.55

11

SCREW, TAPPING (4X16)

93901-24480

$1.49

12

SCREW, TAPPING (4X12)

93903-34320

$1.49
