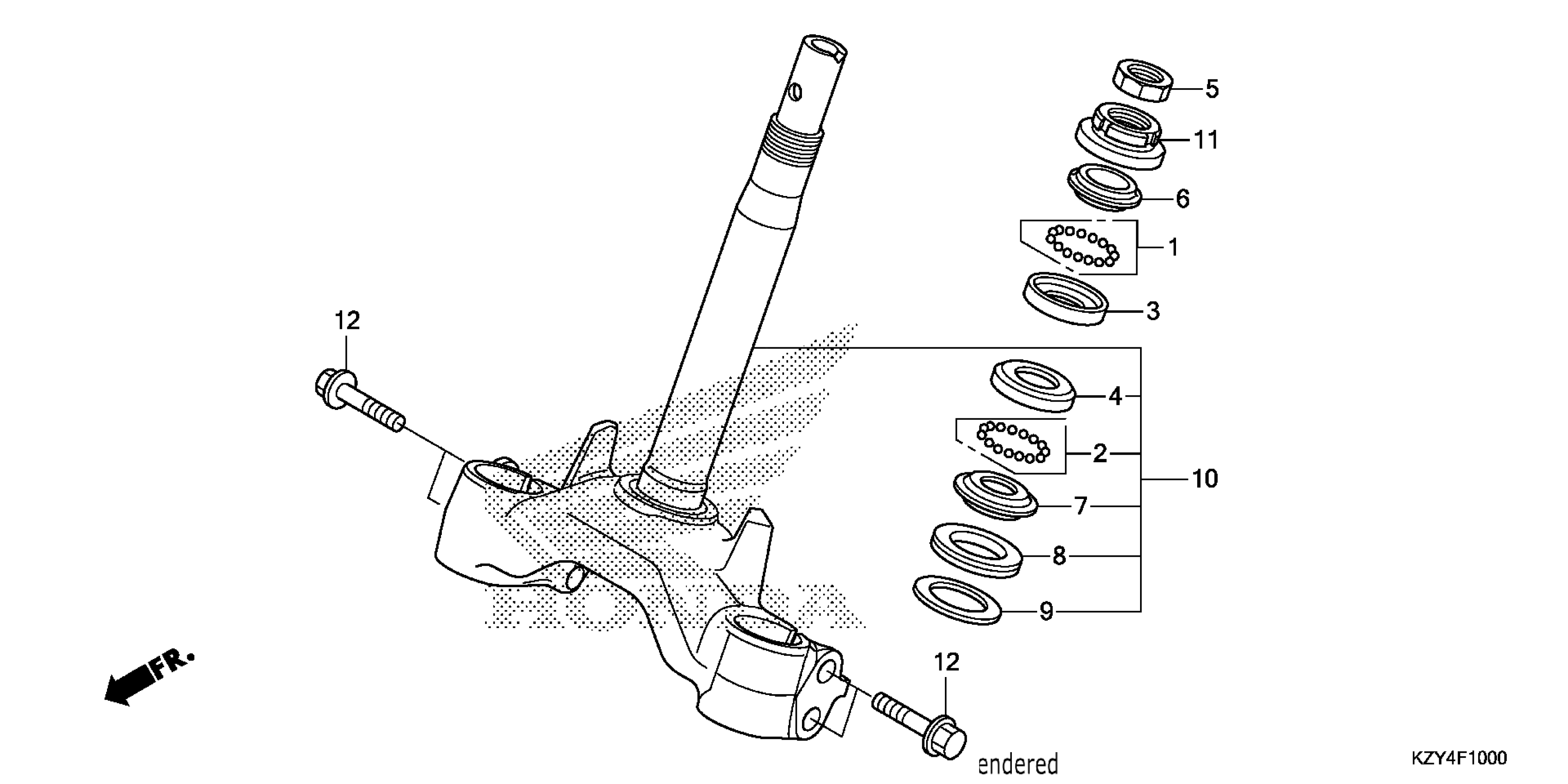

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 STEERING STEM Diagram

BALL SET, STEEL (#6X23)

06530-GBG-B20

$3.43

BALL SET, STEEL (#6X29)

06531-GBG-B20

Unavailable

RACE, STEERING TOP BALL

50301-GN5-901

$13.15

RACE, STEERING BALL (LOWER)

50302-GN5-900

$10.40

NUT, STEERING STEM LOCK

50306-GN5-900

$8.15

RACE, STEERING TOP CONE

53211-GN5-900

$13.57

RACE, STEERING CONE (LOWER)

53212-GN5-900

$11.25

DUST SEAL, STEERING HEAD

53214-GN5-900

$4.72

WASHER, STEERING HEAD DUST SEAL

53215-GN5-900

$3.72

STEM SUB-ASSY., STEERING

53219-KWN-710

$404.13

THREAD, STEERING HEAD TOP

53220-GN5-850

$11.41

BOLT, FLANGE (10X50)

95801-10050-08

$2.59
