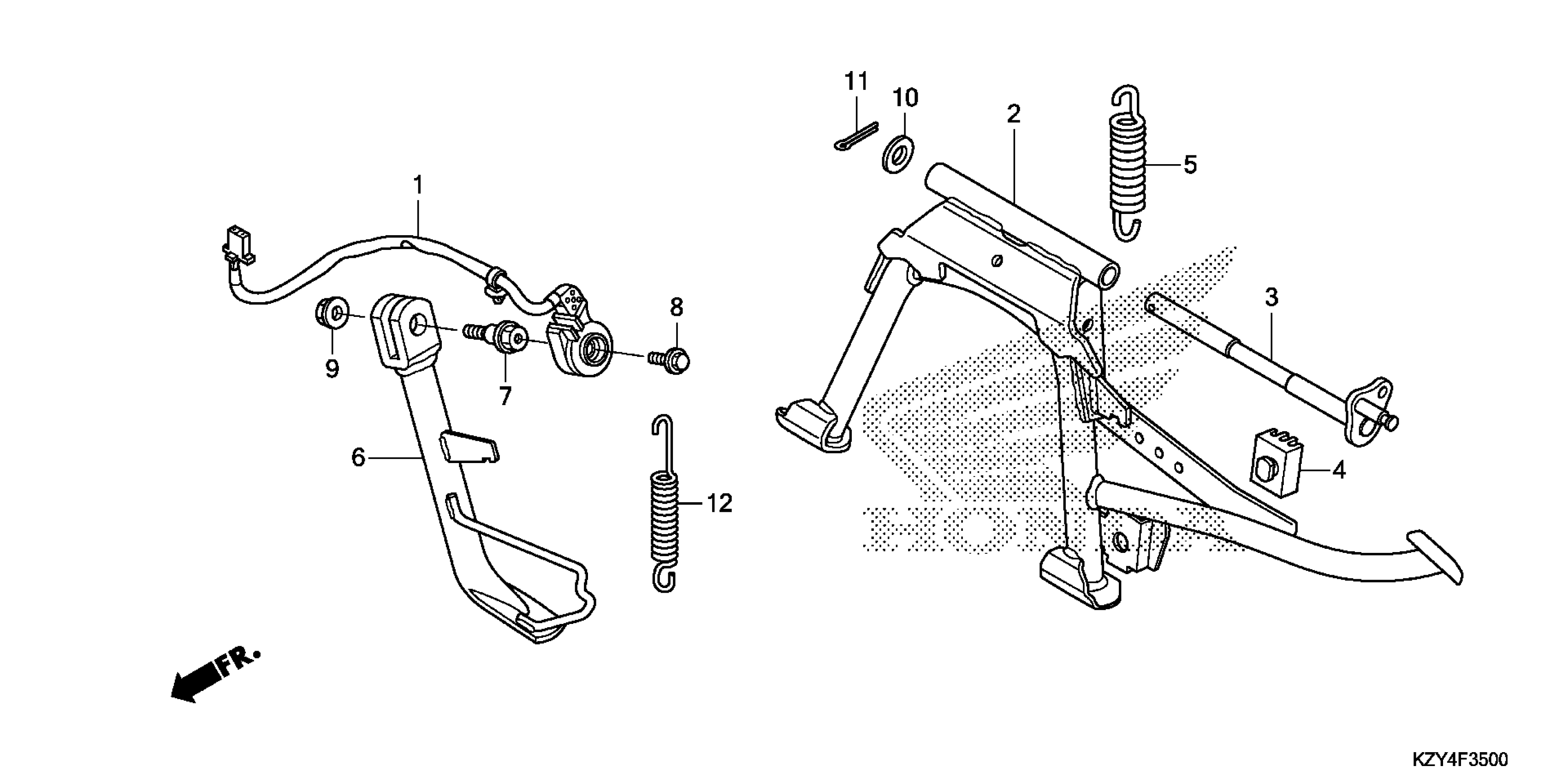

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 STAND Diagram

SWITCH ASSY., SIDE STAND

35700-KWN-781

$57.66

STAND, MAIN (COO)

50500-KZY-305

$29.59

SHAFT, MAIN STAND

50503-KWN-900

$3.01

RUBBER, STAND STOPPER

50505-GR1-710

$2.51

SPRING, MAIN STAND

50520-KVB-900

$1.84

BAR, SIDE STAND (COO)

50530-KZY-305

Unavailable

BOLT, SIDE STAND PIVOT

90108-KZL-860

$3.21

BOLT, SWITCH SETTING

90147-KVY-900

$1.29

NUT, SIDE STAND

90203-KVB-900

$1.60

WASHER, PLAIN (10MM)

94101-10800

$1.74

PIN, COTTER (3.0X45) This part replaces 94201-30200.

94201-30450

$1.01

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.01

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.01

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.01

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.01

PIN, SPLIT (3.0X45)

94201-30450

$1.01

SPRING A, SIDE STAND

95014-72102

$2.62
