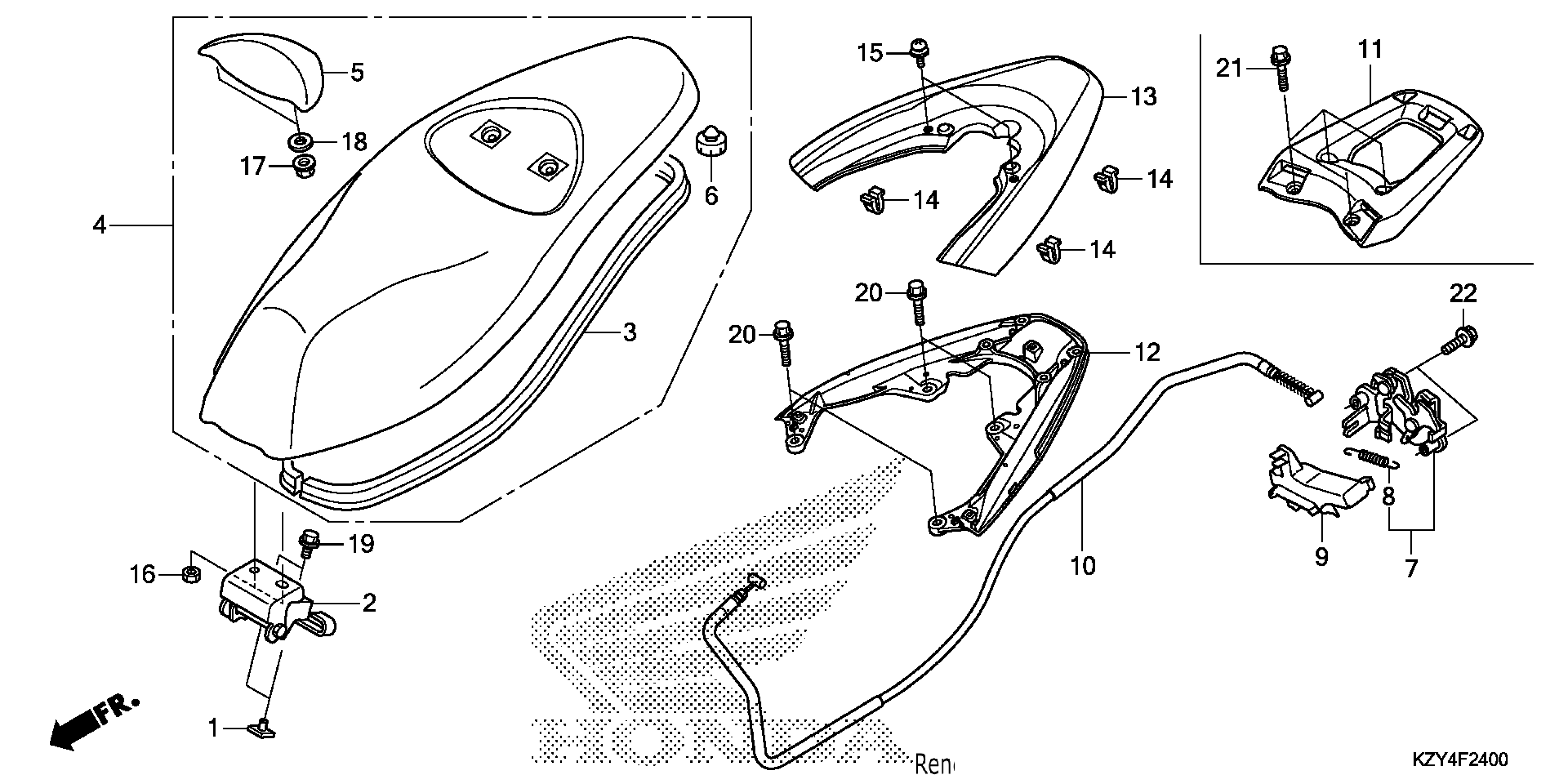

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 SEAT + GRAB RAIL Diagram

#

Description
Price

1

NUT, SPECIAL (6X7)

61304-958-003

$3.01

2

HINGE ASSY., SEAT

77110-KWN-670

$37.14

3

RUBBER, SEAL

77115-KWN-900

$11.59

4

SEAT, DOUBLE (TYPE1)

77200-KWN-711ZD

$152.52

5

BACKREST ASSY. (TYPE1)

77210-KWN-711ZD

$54.45

6

RUBBER C, SEAT SETTING

77215-KW7-900

$4.92

7

CATCH, SEAT

77230-KWN-900

$6.06

8

SPRING, SEAT LOCK

77234-GN2-000

$3.66

9

COVER, SEAT CATCH

77237-KWN-900

$0.90

10

CABLE, SEAT LOCK

77241-KWN-711

$171.13

11

BASE, RR. CARRIER | (Optional).

81200-KWN-781

$70.42

12

GRAB RAIL, RR.

84100-KWN-901

$41.70

13

COVER SET, RR. GRAB RAIL (TYPE3) (WL) | Candy rosy red R340C;

84155-KZY-700ZB

$67.38

13

COVER SET, RR. GRAB RAIL (TYPE1) (WL) | Asteroid black metallic NHA35M;

84155-KZY-700ZD

$21.88

14

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$0.75

15

SCREW-WASHER (5X8)

93891-05008-07

$0.90

16

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

16

NUT, HEX. (6MM)

94001-06200-0S

$1.19

17

NUT, FLANGE (6MM)

94050-06000

$0.59

18

WASHER, PLAIN (6MM)

94103-06000

$0.90

19

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

20

BOLT, FLANGE (8X28)

95701-08028-00

$1.26

21

BOLT-WASHER (8X40) | (Optional). This part replaces 95701-08040-07.

90141-GGZ-J00

$2.20

22

BOLT, FLANGE (6X22)

95701-06022-08

$1.64

22

BOLT, FLANGE (6X22) This part replaces 95801-06022-08.

95701-06022-08

$1.64
