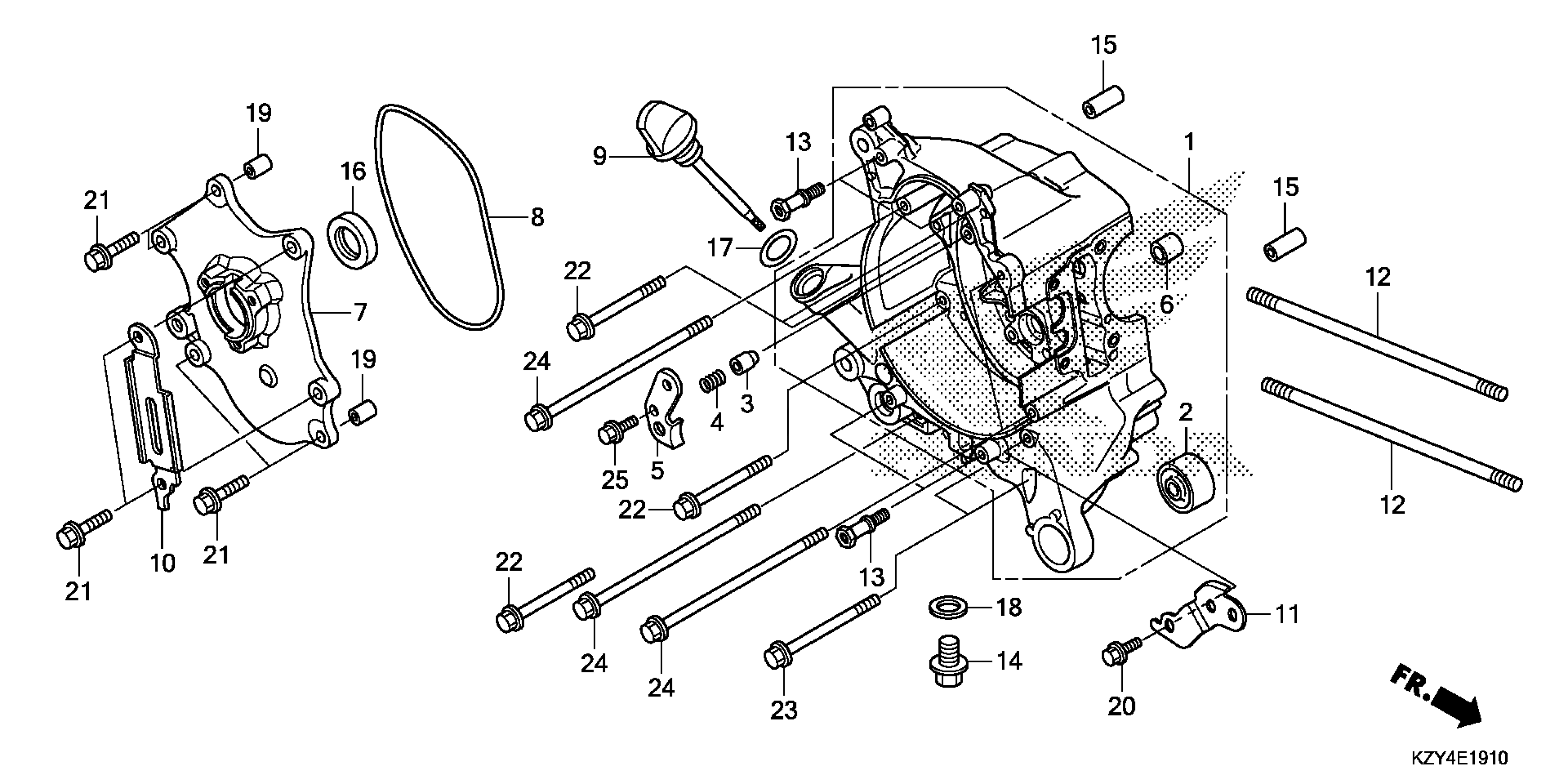

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 RIGHT CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. | Use up to Engine SN 2000686

11100-KZR-600

$151.44

1

CRANKCASE, R. | Use from Engine SN 2000687

11100-KZR-601

$120.02

2

BUSH, ENGINE HANGER RUBBER (HOKUSHIN)

11103-KVB-901

$3.67

2

BUSH, ENGINE HANGER RUBBER (HOKUSHIN) This part replaces 11103-KVB-930.

11103-KVB-901

$3.67

3

PLUG, BEARING PUSH

11114-KWN-900

$1.49

4

SPRING, BEARING PUSH

11116-KZR-600

$1.49

5

PLATE, BEARING PUSH

11117-KWN-901

$1.49

6

BUSH, MAIN STAND

11205-GBC-300

$1.49

7

BASE, STATOR

11361-KWN-901

$9.59

8

GASKET, STATOR BASE

11363-KWN-900

$1.49

9

DIPSTICK, OIL

15651-KWN-900

$1.61

10

CLAMP, ALTERNATOR WIRE

32961-KWN-900

$1.49

11

STAY, ENGINE HARNESS

32962-KZR-600

$1.49

12

BOLT A, STUD (8X200.5)

90031-KWN-900

$2.30

13

BOLT, RADIATOR DISTANCE

90036-KZR-600

$2.77

14

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$3.98

14

BOLT, DRAIN PLUG (12X15)

90131-896-650

$3.98

15

PIN, DOWEL SPECIAL (6.3X10X30)

90702-KWN-900

$1.49

16

OIL SEAL (20.8X32X6)

91201-KWN-901

$1.49

17

O-RING (18X3)

91307-035-000

$2.92

18

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

19

PIN, DOWEL (8X10)

94301-08100

$2.25

20

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

21

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

22

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

23

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

24

BOLT, FLANGE (6X130)

95701-06130-00

$3.06

25

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
