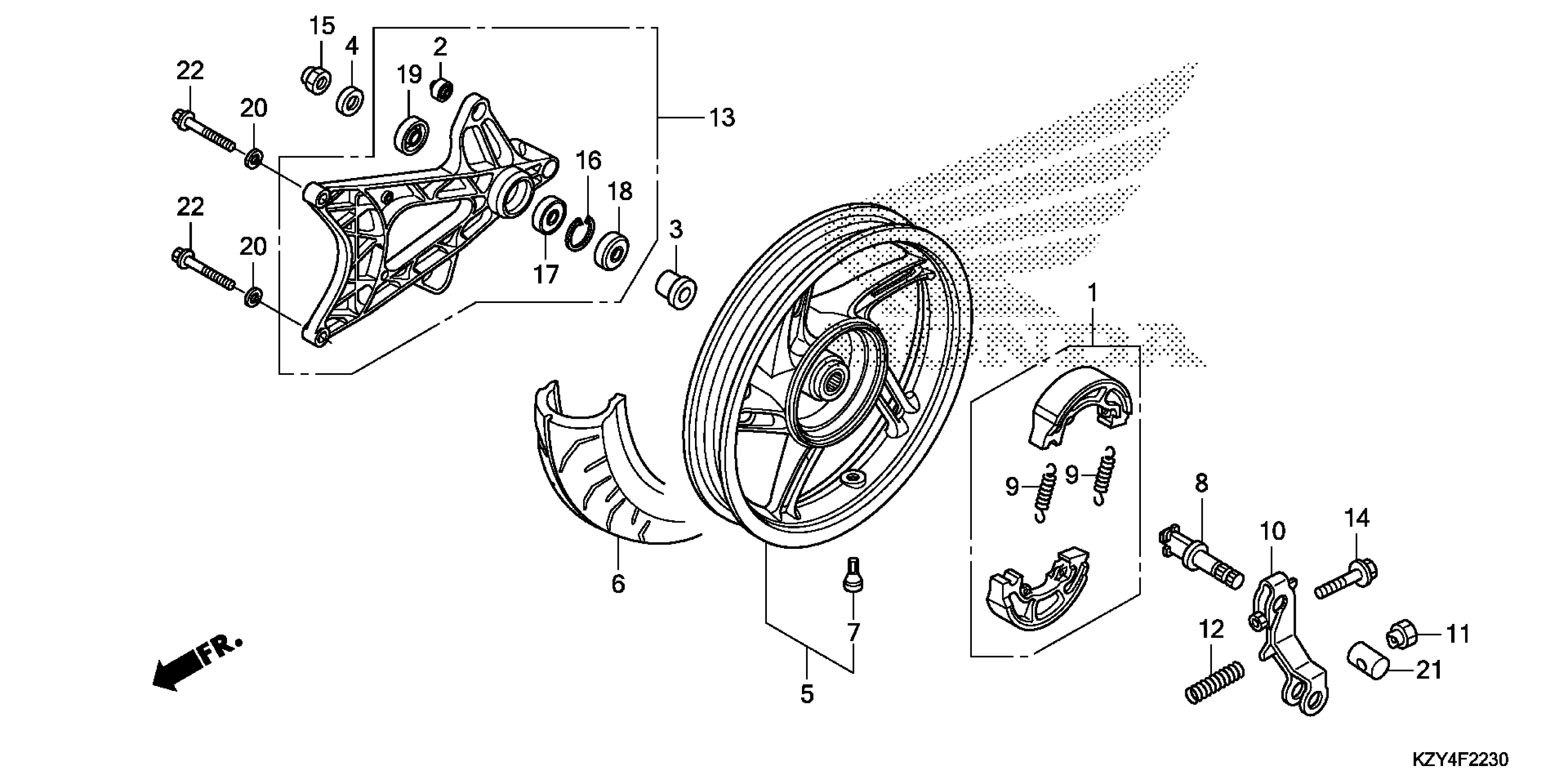

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 REAR WHEEL + SWINGARM Diagram

#

Description
Price

1

SHOE SET, BRAKE (JB)

06430-KWN-900

$22.82

2

BUSH, RR. CUSHION RUBBER (LOWER) (HOKUSHIN)

11203-KVB-901

$4.49

3

COLLAR, RR. WHEEL SIDE

42311-KWN-900

$4.57

4

COLLAR B, RR. WHEEL SIDE

42312-KWN-700

$2.18

5

WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC)

42650-KZY-305ZA

$185.07

6

TIRE, RR. This part replaces 42711-KWN-781.

42711-KWN-782

$67.34

6

TIRE,RR(IRC) | Use up to Frame SN D5003566 This part replaces 42711-KWN-901.

42711-KWN-903

Unavailable

6

TIRE,RR(IRC) This part replaces 42711-KWN-902.

42711-KWN-903

Unavailable

7

VALVE, RIM (IRC)

42753-GM9-743

$8.68

7

VALVE, RIM This part replaces 42753-KWF-901.

42753-K38-901

$1.49

8

CAM, RR. BRAKE

43141-KWN-930

$6.98

9

SPRING, BRAKE SHOE

43151-329-000

$2.75

10

ARM, RR. BRAKE

43410-KWN-900

$2.33

11

NUT B, BRAKE ROD ADJUSTING This part replaces 43459-GN5-760.

95015-42000

$1.83

11

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

12

SPRING, RR. BRAKE ARM

43472-KVB-900

$1.49

13

SWINGARM ASSY.

52100-KWN-710

$474.56

14

BOLT, FLANGE (6X32)

90112-KVB-900

$1.49

15

NUT, U (16MM)

90305-KWN-701

$5.65

16

CIRCLIP (INNER) (40MM)

90651-KZR-601

$1.49

16

CIRCLIP (INNER) (40MM)

94520-40000

$2.19

17

BEARING, RADIAL BALL (6203) (NTN CORP.)

42630-GK4-003

$16.69

17

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91051-KZR-601.

42630-GK4-003

$16.69

17

BEARING, RADIAL BALL (6203) (NTN CORP.) This part replaces 91053-MV1-003.

42630-GK4-003

$16.69

18

DUST SEAL (25X40X5)

91252-KZR-601

$7.72

19

DUST SEAL (25X35X6)

91253-KZR-601

$7.33

20

WASHER, PLAIN (10MM)

94101-10000

$1.49

21

JOINT B, BRAKE ARM

95015-32001

$1.49

22

BOLT, FLANGE (10X40)

95701-10040-00

$1.51
