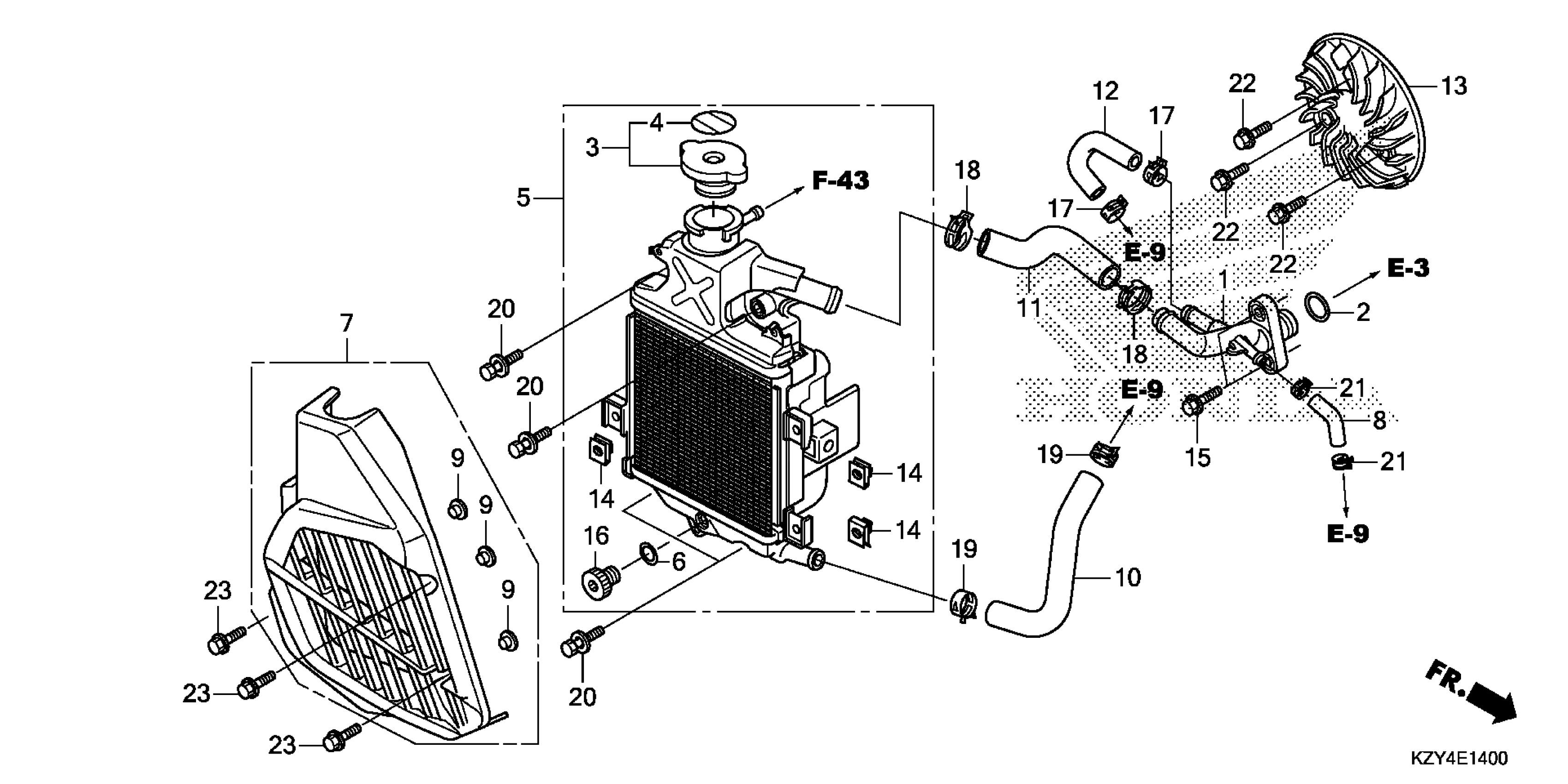

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 RADIATOR Diagram

Description

Price

JOINT, WATER HOSE

12206-KZR-600

$20.10

O-RING (15.4X2)

12207-KWN-900

$1.49

CAP, RADIATOR

19037-GEE-710

$30.28

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

RADIATOR ASSY.

19100-KZY-901

$197.64

SEAL, DRAIN

19109-GET-003

$2.26

COVER, RADIATOR

19150-KWN-781

$9.30

TUBE, AIR BREATHER

19332-KWN-900

$1.49

COLLAR

19416-KEY-900

$1.49

HOSE A, WATER

19501-KZR-600

$6.57

HOSE B, WATER

19502-KZR-600

$7.56

HOSE, BYPASS

19504-KZR-600

$8.90

FAN, COOLING

19510-KZY-700

$6.61

NUT, FENDER SETTING

84601-HA7-670

$5.54

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.77

BOLT, DRAIN

90103-GET-003

$4.08

CLIP, HOSE

90678-MR1-690

$2.25

CLAMP, WATER HOSE (24MM)

90701-KWN-901

$1.49

CLAMP, WATER HOSE (21MM)

90701-MF5-003

$5.66

BOLT-WASHER (6X25)

93401-06025-08

$1.78

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
