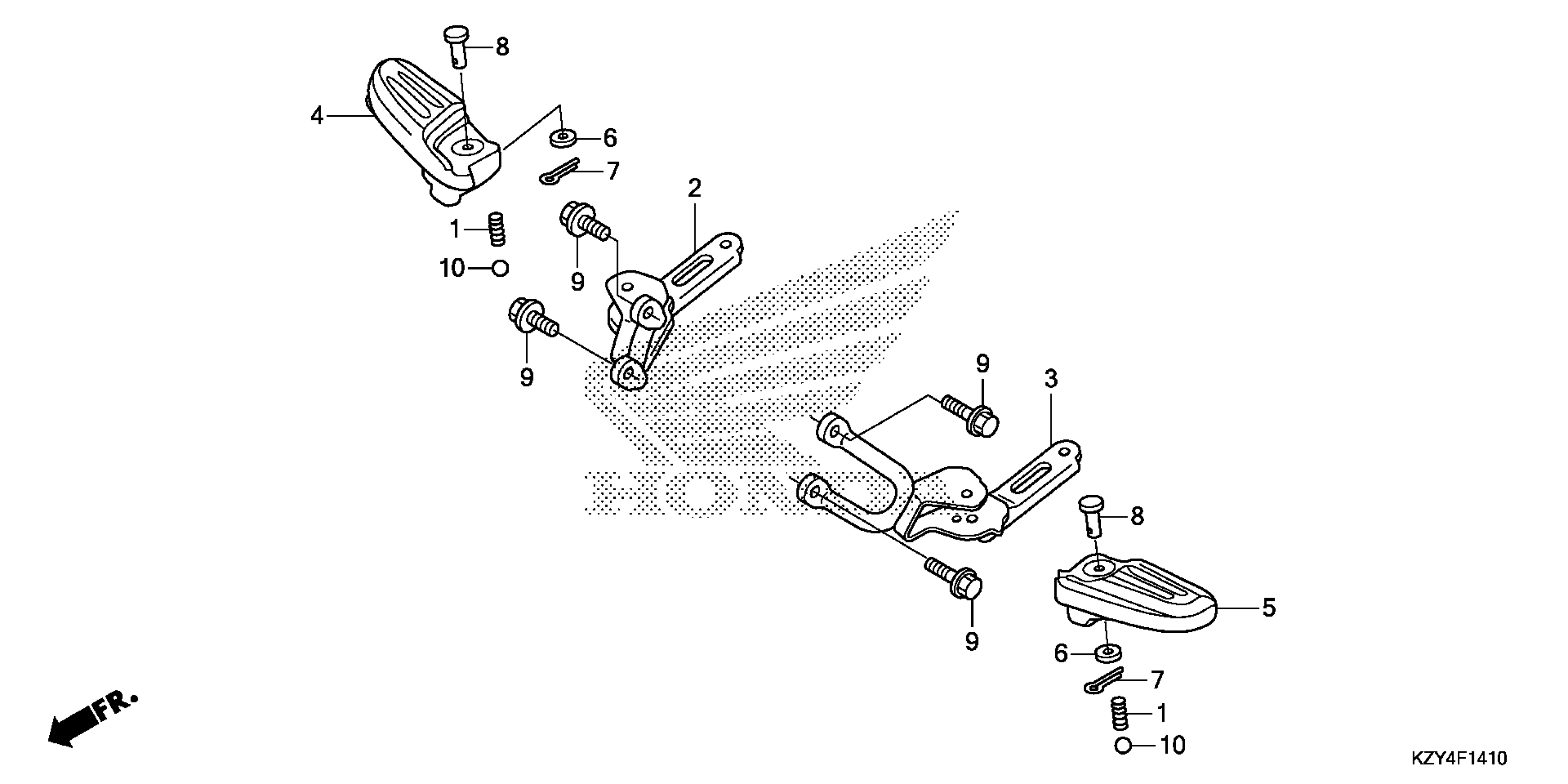

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 PILLION STEP Diagram

#

Description

Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

BRACKET, R. PILLION STEP

50715-KWN-710

$32.44

3

BRACKET, L. PILLION STEP

50716-KWN-710

$32.28

4

ARM, R. PILLION STEP (COO)

50720-KWN-305

$9.77

5

ARM, L. PILLION STEP (COO)

50730-KWN-305

$9.77

6

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

6

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

6

WASHER, PLAIN (6MM)

94101-06800

$1.49

7

PIN, SPLIT (1.6X12)

94201-16120

$1.49

8

PIN A, PILLION STEP

95015-81000

$2.21

9

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

9

BOLT, FLANGE (8X20) This part replaces 95801-08020-00.

95701-08020-00

$1.78

10

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
