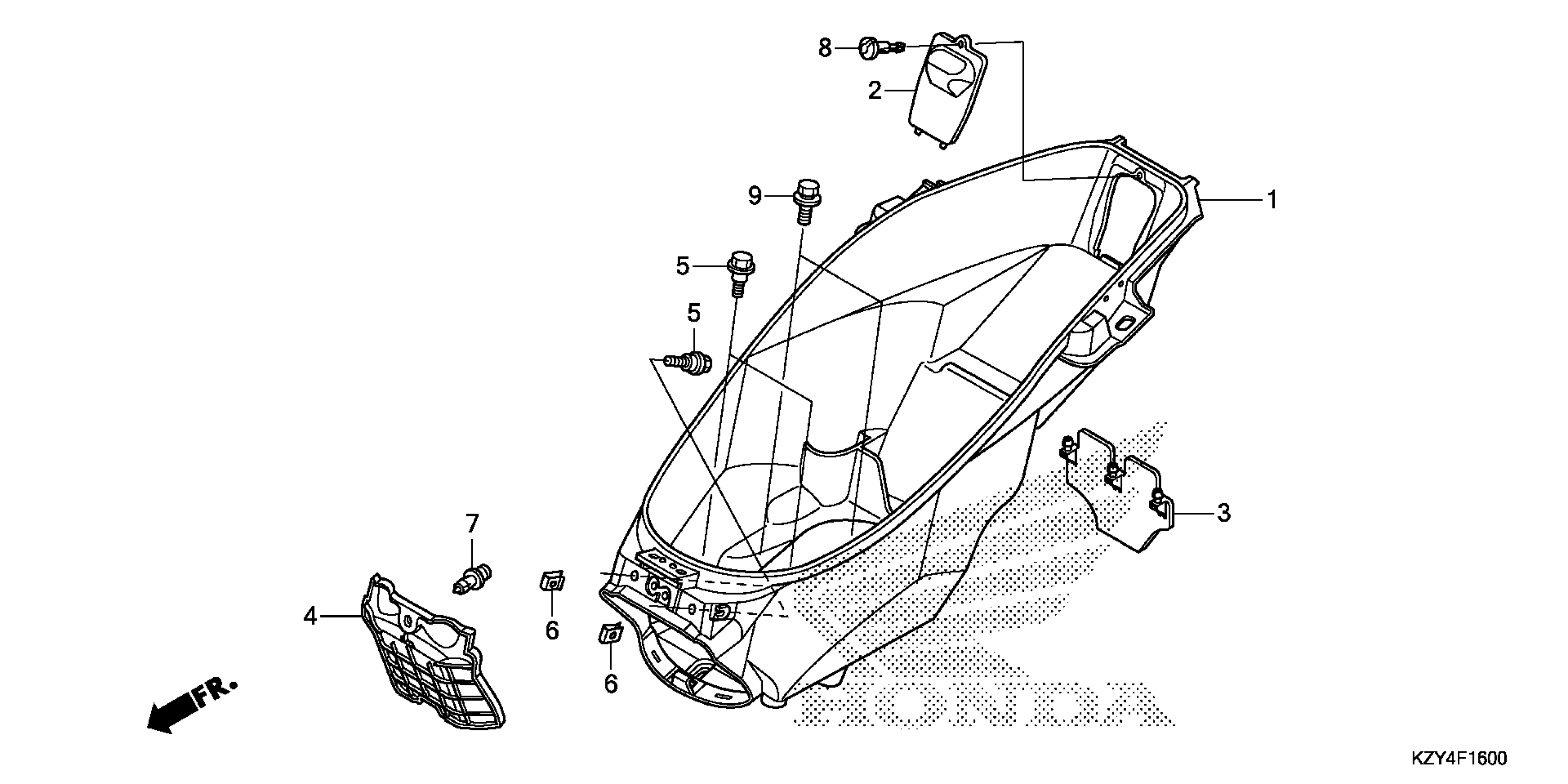

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 LUGGAGE BOX Diagram

#

Description
Price

1

BOX, LUGGAGE

81250-KWN-711

$253.25

2

LID, LUGGAGE BOX

81253-KWN-900

$1.09

3

SPLASH GUARD, RR.

81265-KWN-900

$3.09

4

COVER, BATTERY

81290-KWN-900

$2.50

5

BOLT, FLANGE (6MM)

90111-187-000

$7.39

6

NUT, SPRING (4MM)

90302-SA4-003

$5.32

7

RIVET, PUSH (D8)

90653-HW3-671

$1.88

8

CLIP, TRIM

90683-GAZ-003

$3.63

9

BOLT-WASHER (6X12)

93404-06012-00

$1.63
