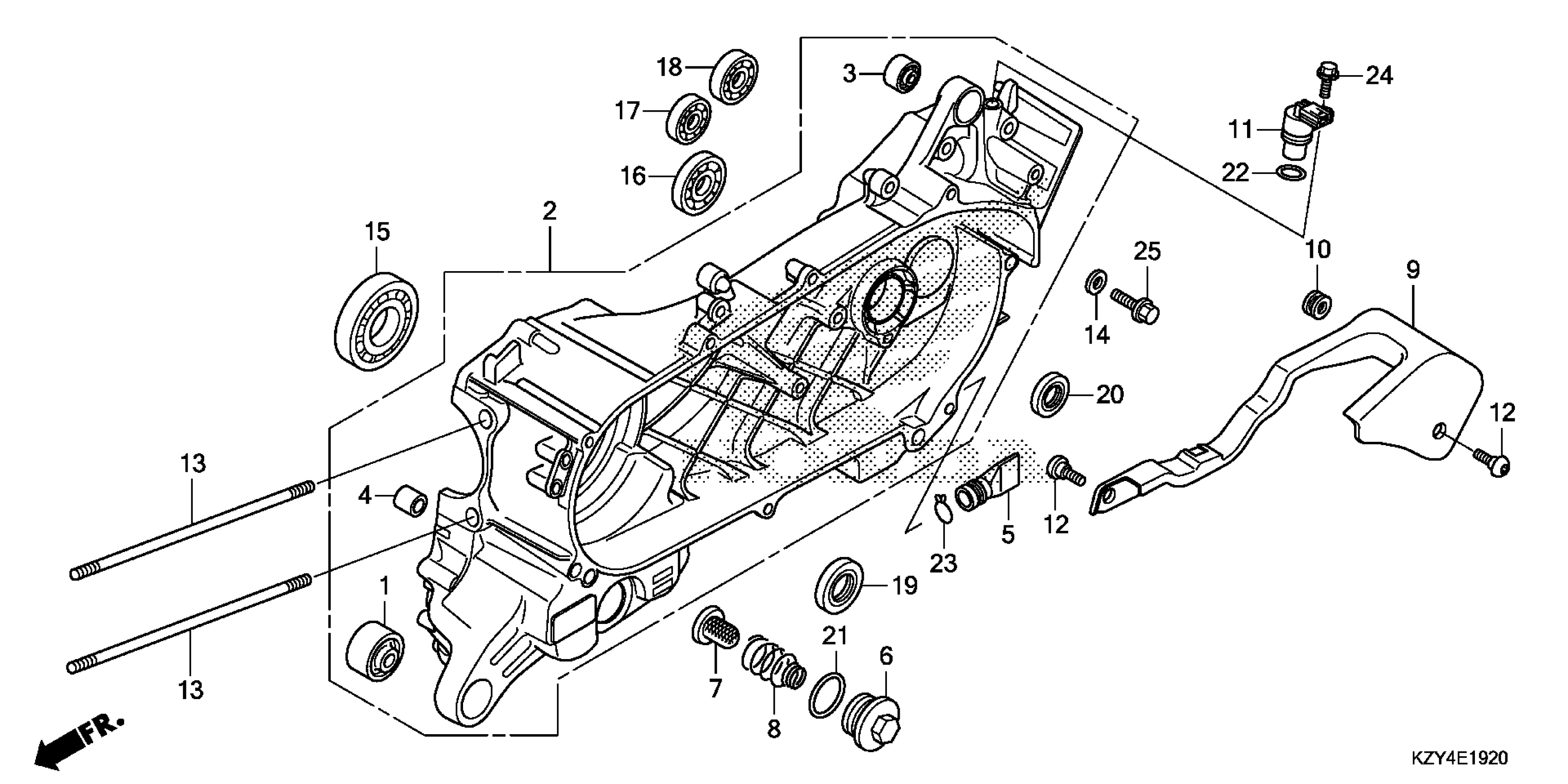

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 LEFT CRANKCASE Diagram

#

Description
Price

1

BUSH, ENGINE HANGER RUBBER (HOKUSHIN)

11103-KVB-901

$3.25

1

BUSH, ENGINE HANGER RUBBER (HOKUSHIN) This part replaces 11103-KVB-930.

11103-KVB-901

$3.25

2

CRANKCASE, L. | Use up to Engine SN 2000686 This part replaces 11200-KZY-700.

11200-KZY-702

$177.52

2

CRANKCASE, L. | Use from Engine SN 2000687 to 2006120 This part replaces 11200-KZY-701.

11200-KZY-702

$177.52

2

CRANKCASE, L.

11200-KZY-702

$177.52

3

BUSH, RR. CUSHION RUBBER (LOWER) (HOKUSHIN)

11203-KVB-901

$3.97

4

BUSH, MAIN STAND

11205-GBC-300

$0.73

5

TUBE, DRAIN

11343-KVG-900

$1.28

6

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

6

CAP, VALVE ADJ.

12361-300-000

Unavailable

6

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

7

SCREEN, OIL FILTER

15421-KPL-900

$1.45

7

SCREEN, OIL FILTER

15421-107-000

$5.88

8

SPRING, OIL FILTER SCREEN

15426-KVB-900

$1.45

9

PROTECTOR, SPEED SENSOR

32112-KZR-600

$3.81

10

GROMMET, SPEED SENSOR PROTECTOR

32113-KWN-900

$0.54

11

SENSOR ASSY., SPEED (TDK-EPC) This part replaces 37700-HP5-601.

37700-KZR-601

$39.56

11

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$39.56

12

BOLT, SOCKET (6X18)

90001-KWR-000

$0.52

13

BOLT B, STUD (8X206)

90032-KWN-900

$2.03

14

WASHER, SEALING (8MM)

90495-MN5-000

$3.32

15

BEARING, RADIAL BALL (6207) | Use up to Engine SN 2000686

91002-KWN-901

$16.16

15

BEARING, RADIAL BALL SPECIAL (6207) (FUJIKOSHI) This part replaces 91002-KZR-601.

91002-KZR-602

$16.32

15

BEARING, RADIAL BALL SPECIAL (6207) (FUJIKOSHI) | Use from Engine SN 2000687

91002-KZR-602

$16.32

16

BEARING, RADIAL BALL (6204) (NTN)

91003-KZR-601

$7.71

16

BEARING, RADIAL BALL (6204) (FUJIKOSHI)

91003-KZR-602

$9.54

17

BEARING, RADIAL BALL (6301) (NTN)

91005-KZR-601

Unavailable

17

BEARING, RADIAL BALL (6301) (FUJIKOSHI)

91005-KZR-602

$5.74

18

BEARING, RADIAL BALL (6302) (NTN)

91008-KZR-601

$6.32

18

BEARING, RADIAL BALL (6302) (FUJIKOSHI)

91008-KZR-602

$4.37

19

OIL SEAL (26X45X6)

91202-KWN-901

$0.94

20

OIL SEAL (20X32X6)

91203-KWN-901

$0.81

21

O-RING (30.8MM)

91302-001-020

$3.41

22

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

23

CLIP, TUBE (C12)

95002-80000

$0.42

24

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

25

BOLT, FLANGE (8X16)

95701-08016-00

$1.64
