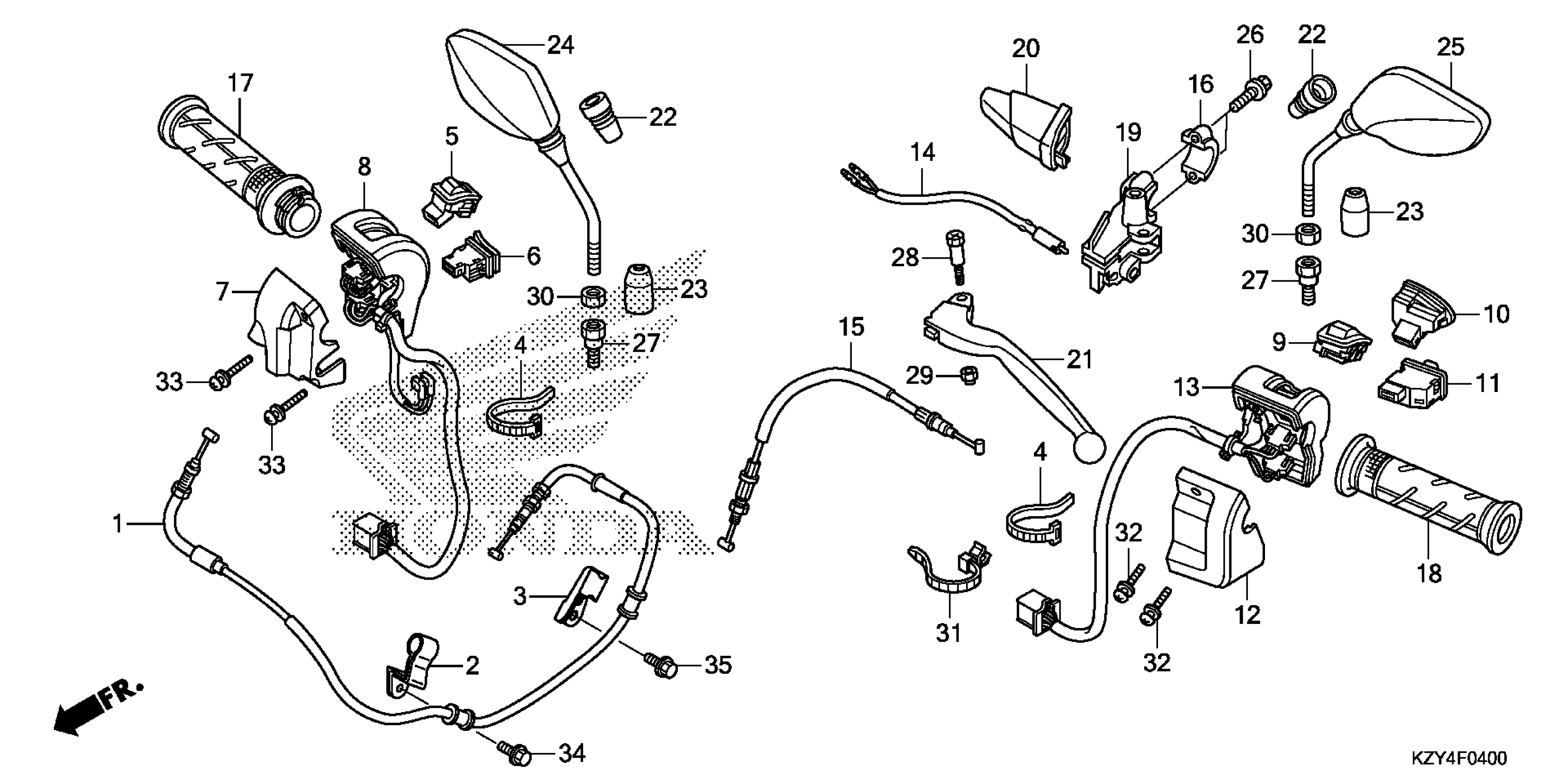

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-KWN-711

$140.54

2

CLAMP A, THROTTLE CABLE

17912-KWN-710

$1.01

3

CLAMP B, THROTTLE CABLE

17923-KZR-600

$0.47

4

BAND B1, WIRE

32161-404-000

$2.16

5

SWITCH UNIT, ENGINE STOP

35130-KWN-671

$12.45

6

SWITCH UNIT, STARTER

35160-KYZ-901

$17.96

7

HOUSING, RR. STARTER SWITCH

35162-KWN-901

$3.16

8

HOUSING, STARTER SWITCH

35165-KZY-911

$19.99

9

SWITCH UNIT, DIMMER

35170-KYZ-901

$25.32

10

SWITCH UNIT, HORN

35180-KYZ-901

Unavailable

11

SWITCH UNIT, TURN SIGNAL

35200-KYZ-901

$25.31

12

HOUSING, RR. TURN SIGNAL SWITCH

35202-KWN-901

$2.65

13

HOUSING, TURN SIGNAL SWITCH

35205-KWN-711

$18.21

14

SWITCH ASSY., RR. STOP

35345-KWN-711

$13.62

15

CABLE, RR. BRAKE FIRST

43440-KWN-711

$34.41

16

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

17

GRIP, THROTTLE (COO)

53140-KWN-305

$5.07

18

GRIP, L. HANDLE (COO)

53166-KWN-305

$7.09

19

BRACKET, L. HANDLE LEVER

53172-KWN-670

$10.32

20

BOOT, L. LEVER

53177-KWN-900

$1.43

21

LEVER, L. HANDLEBAR (COO)

53178-KWN-305

$10.66

22

BOOT, MIRROR

88114-KWN-900

$1.85

23

CAP, LOCK NUT

88115-KWN-900

$1.49

24

MIRROR, R. (COO)

88210-KWN-305

$19.30

25

MIRROR, L. (COO)

88220-KWN-305

$19.30

26

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$0.82

27

BOLT, ADAPTER (10MM)

90103-KWN-901

$1.19

28

BOLT, HANDLE LEVER PIVOT

90115-KWN-700

$0.32

29

NUT, HEX. (5MM)

90302-435-761

$2.06

30

NUT, HEX. (10MM) (LEFT HAND THREAD)

90302-KWN-901

$0.91

31

STRAP, CABLE (118MM) (BLACK)

90672-SA0-003

Unavailable

32

SCREW-WASHER (5X20)

93892-05020-07

$0.79

33

SCREW-WASHER (5X25)

93892-05025-07

$1.00

34

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

35

BOLT, FLANGE (6X16)

95701-06016-00

$1.50
