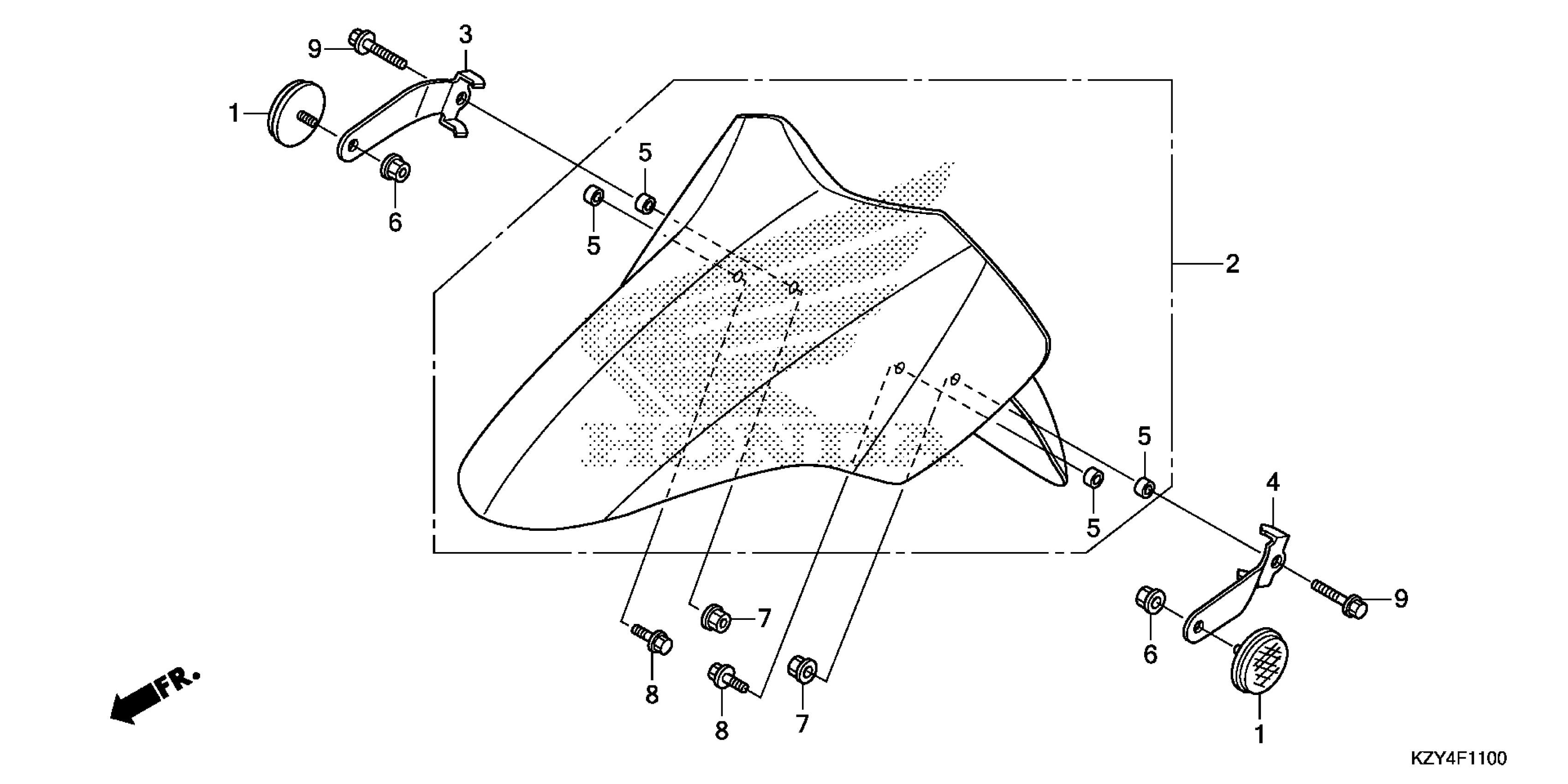

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 FRONT FENDER Diagram

#

Description

Price

1

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$8.33

2

FENDER, FR. NHA35M (ASTEROID BLACK METALLIC) | Asteroid black metallic NHA35M;

61100-KWN-900ZA

$31.27

2

FENDER, FR. R340C (CANDY ROSY RED) | Candy rosy red R340C;

61100-KWN-900ZC

$29.43

3

STAY, R. FR. REFLECTOR

61104-KWN-670

$1.90

4

STAY, L. FR. REFLECTOR

61105-KWN-670

$1.90

5

COLLAR, FR. FENDER

61112-KVG-900

$0.87

6

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

7

NUT, FLANGE (6MM)

94050-06000

$0.60

8

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

9

BOLT, FLANGE (6X38)

96001-06038-00

$0.50
