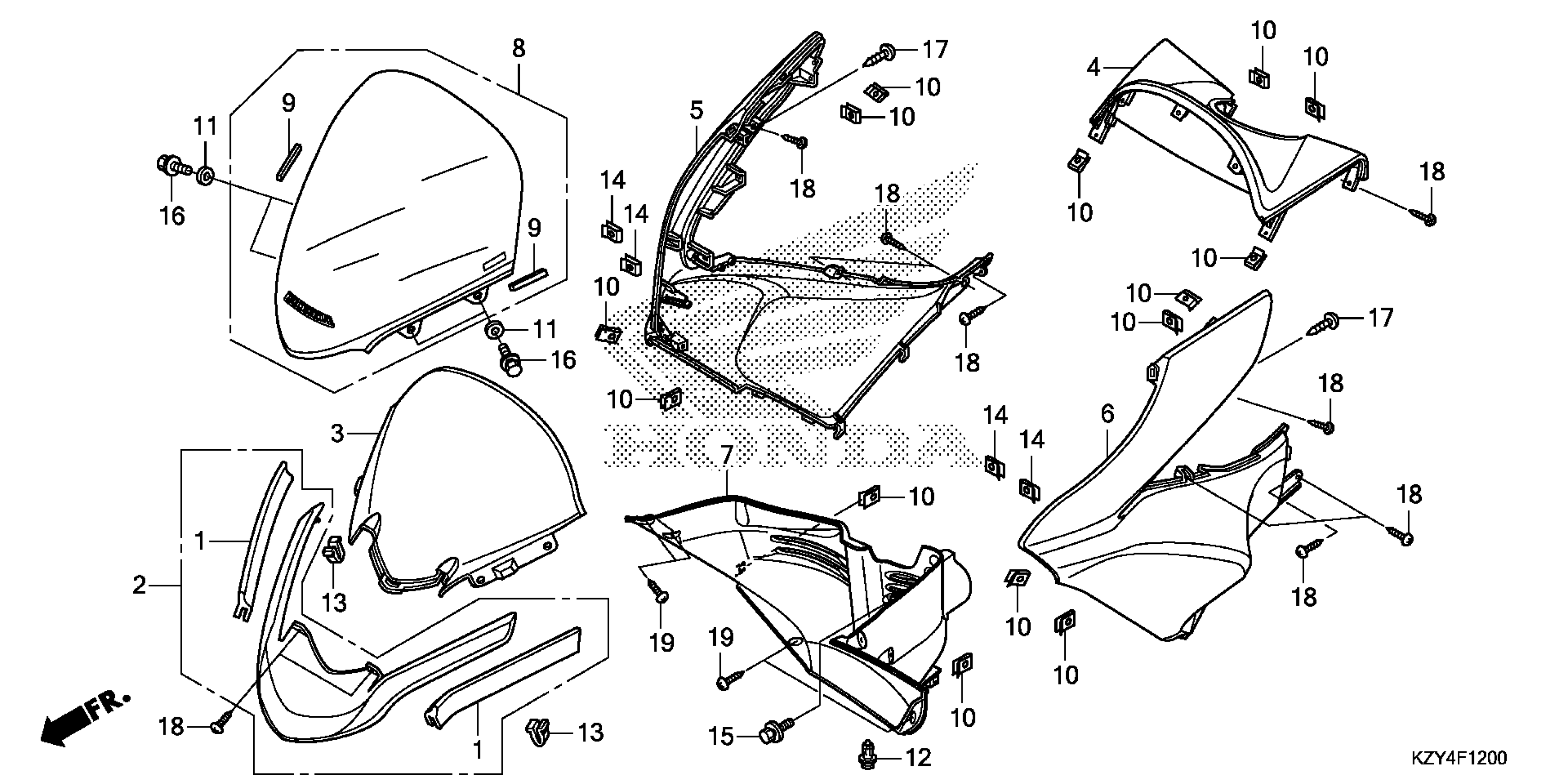

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 FRONT COVER Diagram

#

Description
Price

1

MOLDING, WINDSCREEN

64105-KWN-640

$7.56

2

GRILL ASSY., FR. *NHA35M* (ASTEROID BLACK METALLIC) | Asteroid black metallic NHA35M;

64300-KWN-640ZB

$15.90

2

GRILL ASSY., FR. *R340C* (CANDY ROSY RED) | Candy rosy red R340C;

64300-KWN-640ZD

$50.95

3

PANEL, FR. METER *NH1* (BLACK)

64336-KWN-900ZA

$6.77

4

PANEL, RR. METER *R340C* (CANDY ROSY RED) | Candy rosy red R340C;

64337-KWN-710ZC

$82.00

4

PANEL, RR. METER *NHA35M* (ASTEROID BLACK METALLIC) | Asteroid black metallic NHA35M;

64337-KWN-710ZE

$29.82

5

COVER, R. FR. *NHA35M* (ASTEROID BLACK METALLIC)

64501-KWN-902ZA

$55.11

5

COVER, R. FR. *R340C* (CANDY ROSY RED)

64501-KWN-902ZC

$51.59

6

COVER, L. FR. *NHA35M* (ASTEROID BLACK METALLIC)

64502-KWN-902ZA

$57.71

6

COVER, L. FR. *R340C* (CANDY ROSY RED)

64502-KWN-902ZC

$51.59

7

COVER, FR. (LOWER) *NH1* (BLACK)

64520-KWN-710ZB

$28.36

8

VISOR SET, METER (TYPE1) (WL)(COO)

67100-KZY-305ZA

$52.44

9

SPONGE, RUBBER

80109-KWN-700

$1.49

10

NUT, SPRING (4MM)

90302-SA4-003

$5.44

11

WASHER (9.5X18)

90504-KWN-900

$1.49

12

RIVET, PUSH (D8)

90653-HW3-671

$2.03

13

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$1.49

14

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

15

BOLT-WASHER (6X12)

93404-06012-07

$1.55

16

BOLT-WASHER (6X12)

93404-06012-07

$1.55

16

BOLT-WASHER (6X12) This part replaces 93414-06012-07.

93404-06012-07

$1.55

17

SCREW, TAPPING (5X16)

93903-25320

$1.49

18

SCREW, TAPPING (4X16)

93903-34420

$1.49

19

SCREW, TAPPING (4X16)

93903-34480

$1.49
