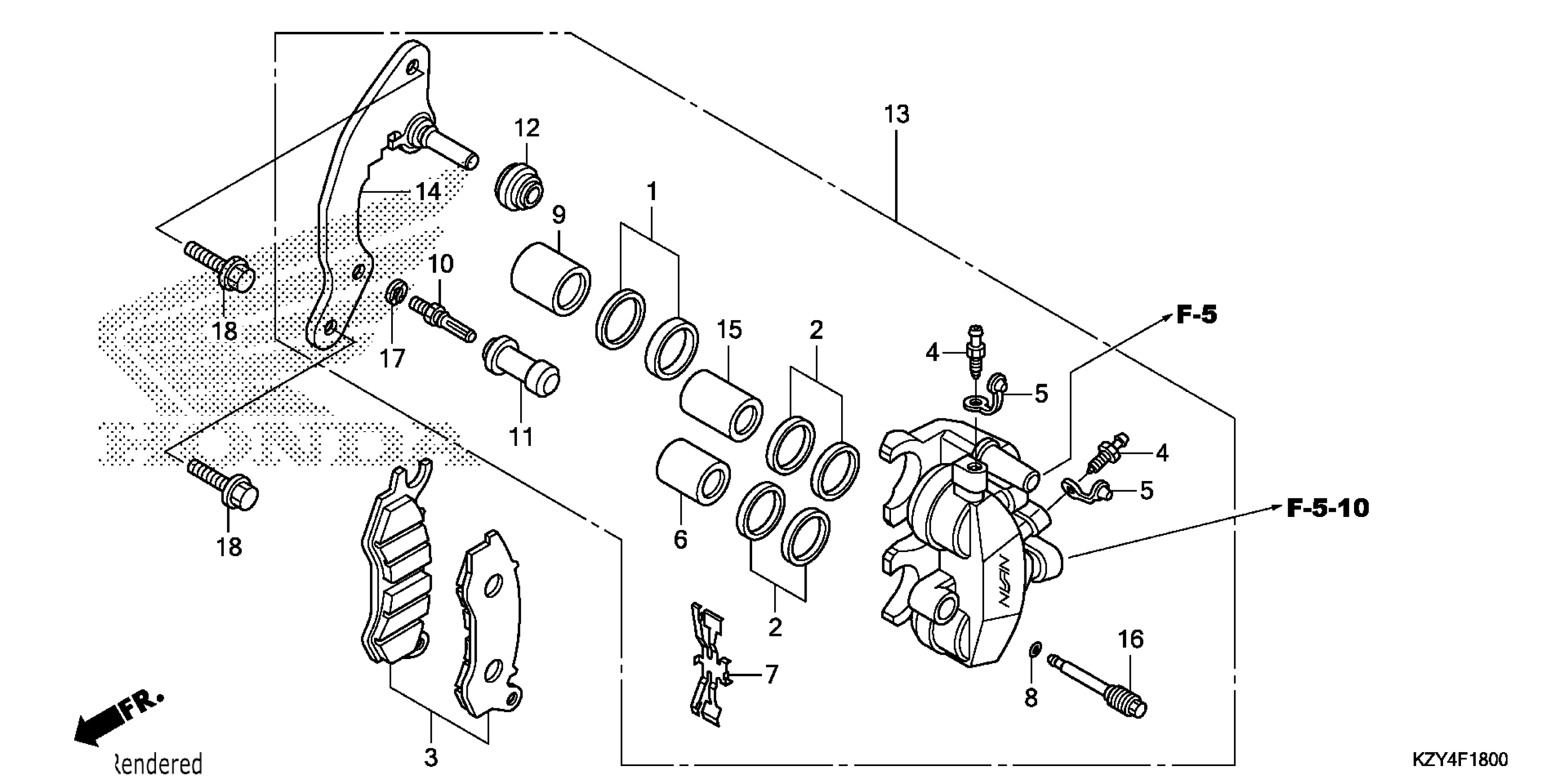

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-GE2-405

$10.47

SEAL SET, PISTON

06451-MZ2-405

$11.51

PAD SET,FR This part replaces 06455-KZL-931.

06455-KZL-932

$25.69

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON A (22X27)

45107-MAJ-G41

$36.21

SPRING, PAD

45108-KWN-931

$2.79

RING, STOPPER

45111-MAJ-G41

$3.63

PISTON A (25X27)

45117-MAJ-G41

$25.95

BOLT, PIN

45131-GZ0-006

$8.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., L. FR. (NISSIN) This part replaces 45150-KWN-641.

45150-KWN-642

Unavailable

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-KWN-642

Unavailable

BRACKET SUB-ASSY., L. FR.

45190-KWN-931

$17.97

PISTON B (22X35)

45207-MAJ-G41

$27.55

PIN, HANGER

45215-KPH-951

$2.65

WASHER, WAVE

45216-166-006

$2.16

BOLT, FLANGE (8X28)

90131-KWN-900

$0.85
