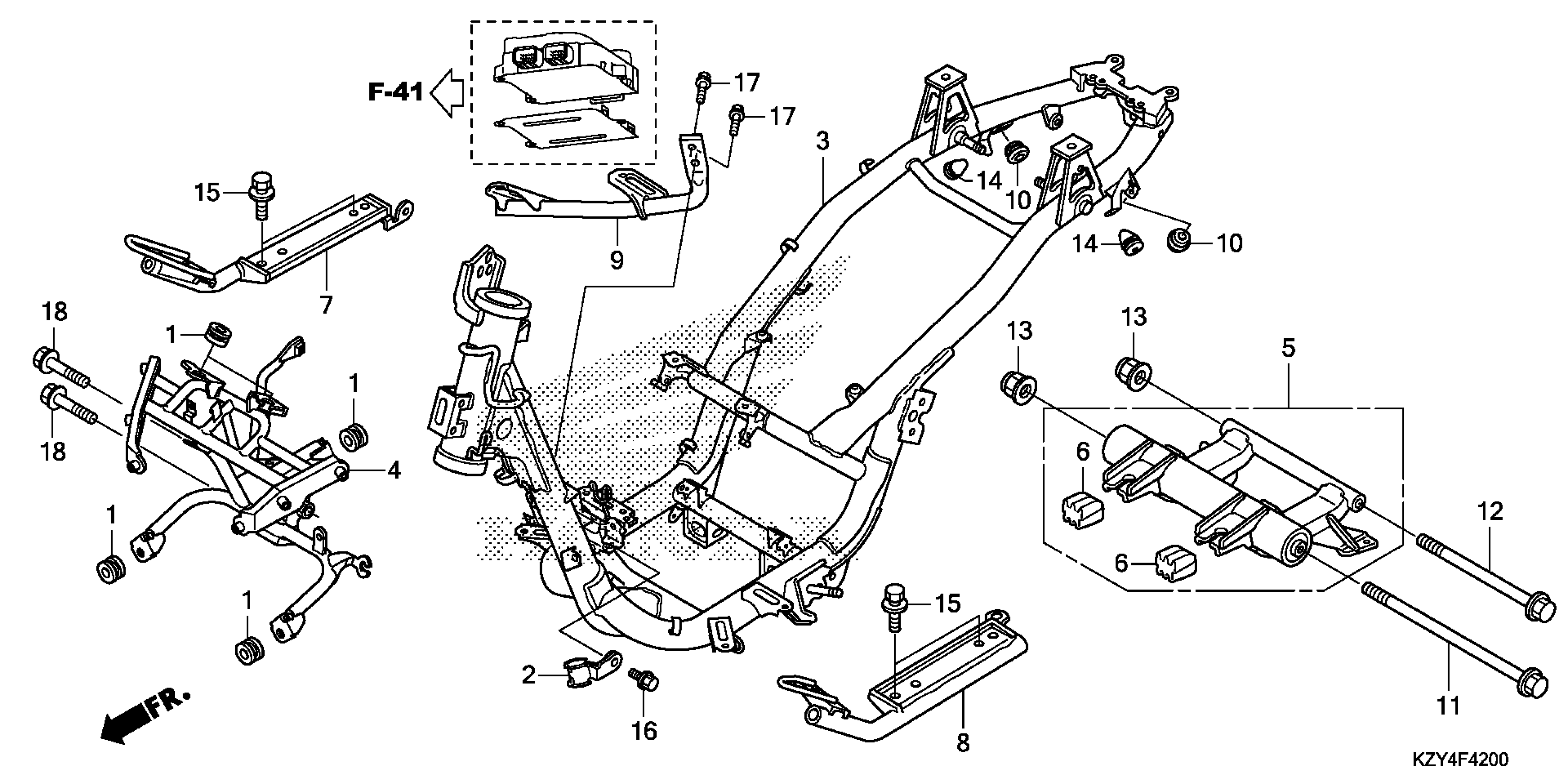

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 FRAME Diagram

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

CLAMP A, RR. BRAKE CABLE

43456-KWN-710

$4.56

FRAME

50100-KZY-910

$389.13

STAY, FR. COVER

50310-KZY-910

$66.30

LINK ASSY., ENGINE HANGER

50350-KWN-710

$45.21

RUBBER, LINK STOPPER

50352-KWN-710

$23.77

STAY, R. FLOOR

50620-KWN-710

$53.70

STAY, L. FLOOR

50621-KWN-710

$36.48

STAY, ELECTRONIC CONTROL UNIT

50622-KWN-710

$10.97

GROMMET, SIDE COVER

83601-MN5-000

$2.92

BOLT, FLANGE (10X270)

90105-KVY-900

$7.15

BOLT, FLANGE (10X238)

90106-GCC-C50

$6.75

NUT, U (10MM)

90304-KGH-901

$3.25

PLUG, CONE TYPE

90899-422-610

$1.89

BOLT-WASHER (8X16)

93404-08016-00

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (8X45)

95801-08045-08

$1.49
