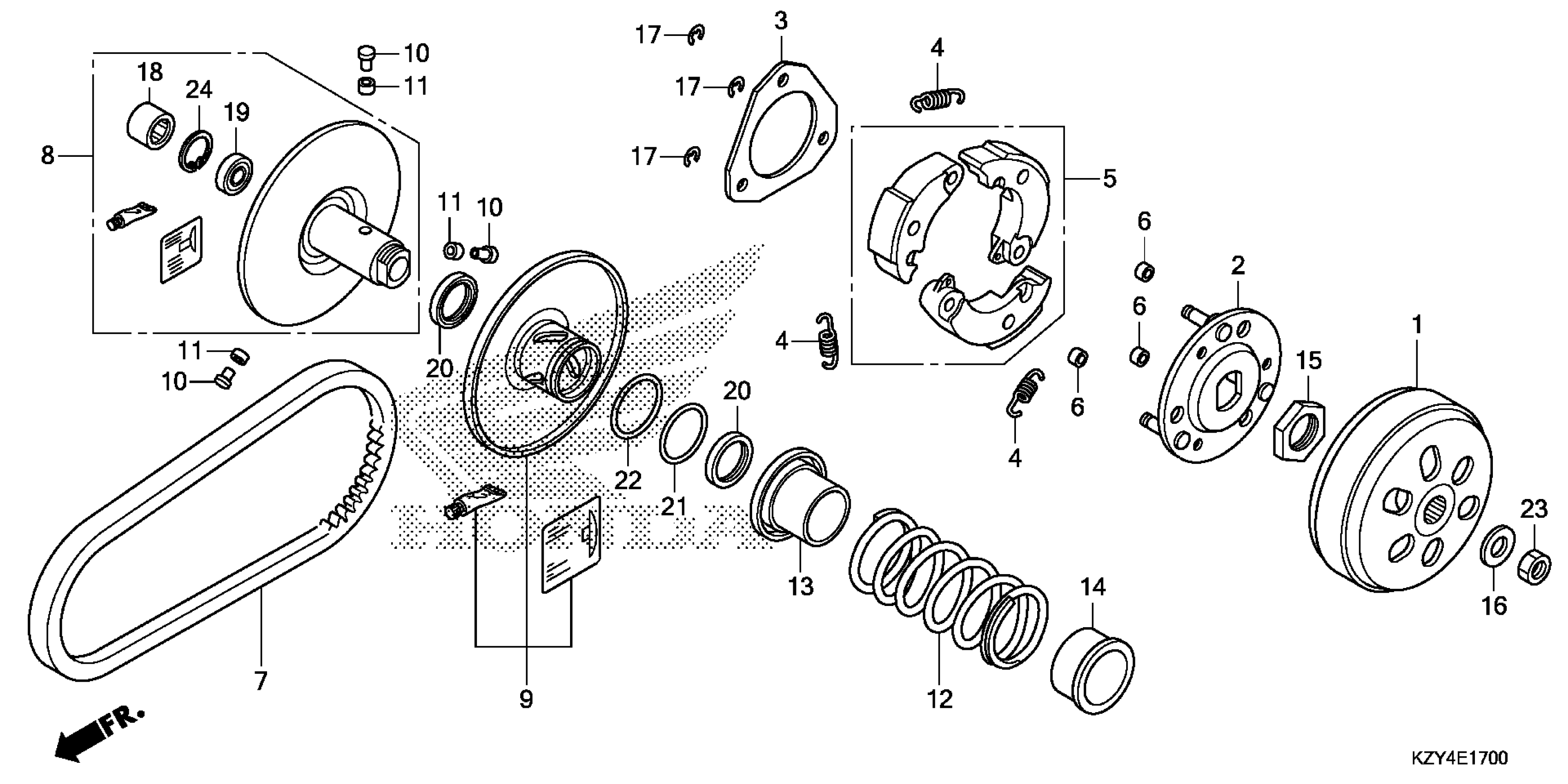

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH OUTER

22100-KWN-900

$27.31

2

PLATE, DRIVE

22350-KVB-900

$6.63

3

PLATE, CLUTCH SIDE

22361-KVB-900

$2.92

4

SPRING, CLUTCH

22401-KGF-912

$6.43

5

WEIGHT SET, CLUTCH

22535-KWN-900

$34.64

6

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

7

BELT, DRIVE

23100-KZY-701

$36.17

8

FACE SET, DRIVEN

23205-KWN-640

$43.63

9

FACE SET, MOVABLE DRIVEN

23224-KWN-640

$32.39

10

PIN, ROLLER GUIDE

23225-KSY-900

$2.92

11

ROLLER, GUIDE

23226-GFM-900

$1.92

11

ROLLER, GUIDE This part replaces 23226-KVB-900.

23226-GFM-900

$1.92

12

SPRING, DRIVEN FACE This part replaces 23233-KWN-900.

23233-KWN-901

$15.39

12

SPRING, DRIVEN FACE

23233-KWN-901

$15.39

13

COLLAR, SEAL

23237-KWN-900

$11.52

14

COLLAR, SPRING

23238-KWN-900

$2.43

15

NUT, SPECIAL (28MM)

90202-KN7-670

$6.46

16

WASHER (12.2X29X2.5)

90441-GY6-940

$2.80

17

CIRCLIP (7MM)

90605-166-720

$1.80

18

BEARING, NEEDLE (20X29X18) (NTN)

91001-KCW-003

$9.50

18

BEARING, NEEDLE (20X29X18) (SCHAEFFLER) This part replaces 91109-KVY-901.

91109-KVY-902

$6.86

18

BEARING, NEEDLE (20X29X18) (SCHAEFFLER)

91109-KVY-902

$6.86

19

BEARING, RADIAL BALL (6902U) (NTN)

91002-GA7-701

$24.58

19

BEARING, RADIAL BALL (6902U) (NSK)

91009-KVY-961

$4.50

20

SEAL, DRIVEN FACE (34X41X4)

91211-KN7-671

$6.36

21

O-RING, PINION CAP

91351-642-000

$4.22

22

O-RING (38.5X2)

91351-GR1-000

$2.92

23

NUT, HEX. (12MM)

94030-12200

$1.66

24

CIRCLIP (INNER) (28MM)

94520-28000

$1.49
