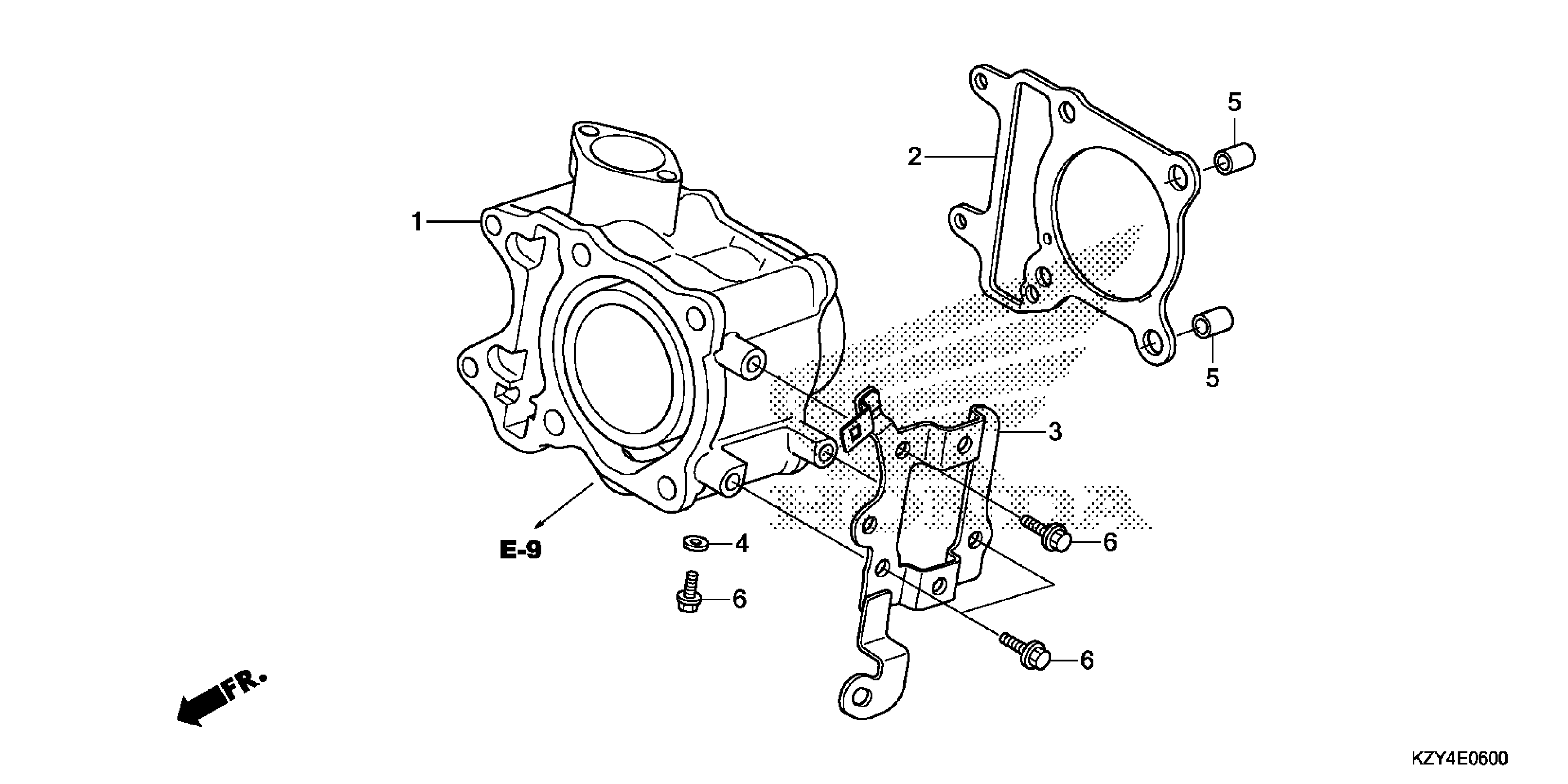

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 CYLINDER Diagram

#

Description

Price

1

CYLINDER This part replaces 12100-KZY-700.

12100-KZY-701

$52.32

1

CYLINDER

12100-KZY-701

$52.32

2

GASKET, CYLINDER

12191-KZR-600

$4.33

3

STAY, IGNITION COIL

30515-KWN-710

$8.16

4

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

5

PIN, DOWEL (10X16)

94301-10160

$2.24

6

BOLT, FLANGE (6X14)

95701-06014-00

$0.91
