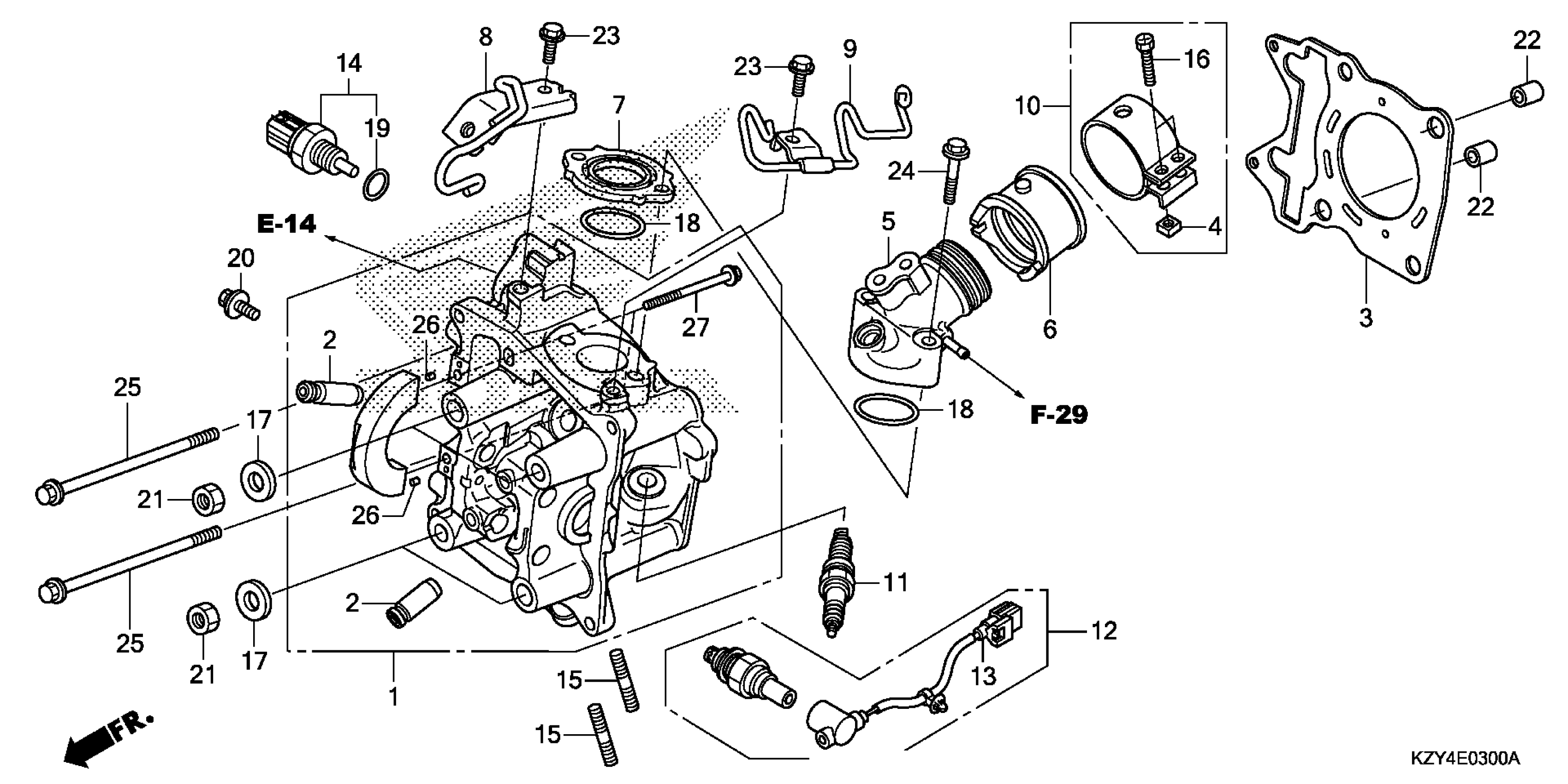

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. | Use up to Engine SN 2008112 This part replaces 12010-KZY-700.

12010-KZY-702

$129.71

1

CYLINDER HEAD ASSY. This part replaces 12010-KZY-701.

12010-KZY-702

$129.71

1

CYLINDER HEAD ASSY.

12010-KZY-702

$129.71

2

GUIDE, VALVE (OVER SIZE)

12204-KWN-P00

$6.70

3

GASKET, CYLINDER HEAD

12251-KZY-701

$5.29

4

NUT, SQUARE (5MM)

16222-MV4-300

$1.99

5

PIPE, INLET

17110-KZY-700

$65.68

6

INSULATOR, THROTTLE BODY

17112-KZY-700

$10.96

7

INSULATOR, IN. PIPE

17119-KZY-700

$5.50

8

STAY, FUEL HOSE

17120-KWN-710

$171.59

9

CLAMP, BREATHER TUBE

17219-KWN-710

$5.31

10

BAND, INSULATOR

17255-KWN-900

$1.63

11

SPARK PLUG (CPR7EA-9) (NGK)

31917-KPH-901

$4.01

12

SENSOR, OXYGEN

36532-KZR-601

$140.51

13

WIRE, OXYGEN SENSOR

36533-KZR-601

$35.04

14

SENSOR ASSY., WATER TEMPERATURE

37870-KZR-601

$8.17

15

BOLT, STUD (7X17)

90004-KGF-910

$1.96

16

BOLT, RECESSED (5X22)

90005-MEJ-000

$0.75

17

WASHER (8MM)

90483-KWN-900

$0.78

18

O-RING (29X2)

91301-KRJ-901

$2.96

19

O-RING (9.5X1.9) (PANASONIC)

91307-PLC-004

$2.96

20

BOLT-WASHER (6X12)

93404-06012-00

$1.63

21

NUT, HEX. (8MM)

94030-08280

$0.85

22

PIN, DOWEL (10X16)

94301-10160

$2.80

23

BOLT, FLANGE (6X14)

95701-06014-00

$0.93

24

BOLT, FLANGE (6X40)

95701-06040-00

$1.88

25

BOLT, FLANGE (6X95)

95701-06095-00

$1.87

26

PIN, DOWEL (3X5)

94303-03050

$2.80

27

BOLT, FLANGE (6X80)

96001-06080-00

$2.04
