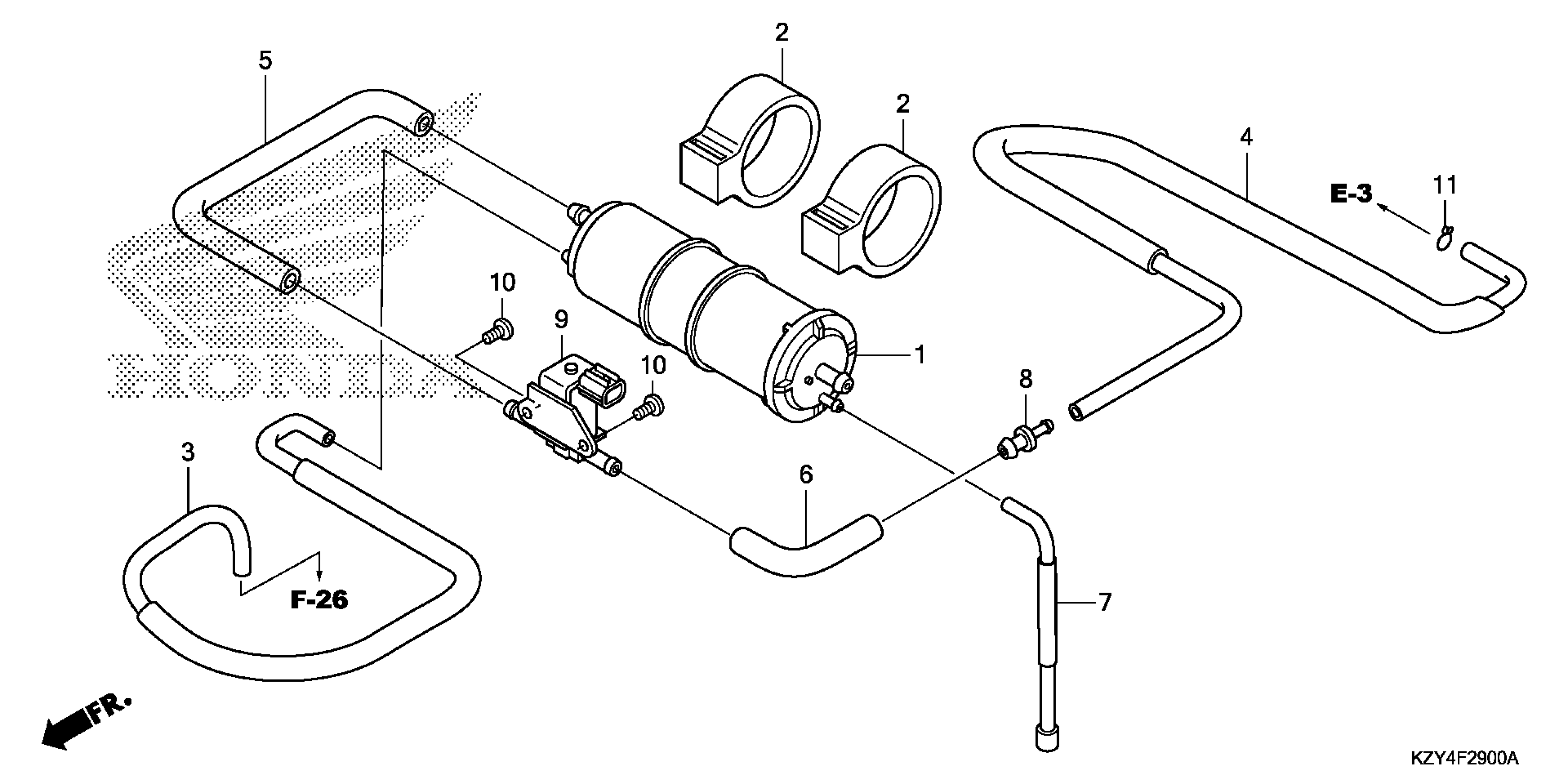

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 CANISTER Diagram

#

Description
Price

1

CANISTER | Use from Frame SN D5005547

17410-GFM-K01

$56.57

2

RUBBER, CANISTER MOUNT

17311-GFM-K00

$8.90

3

TUBE, CHARGE

17411-KZY-700

$6.93

4

TUBE C, PURGE

17412-KZY-700

$6.63

5

TUBE A, PURGE

17414-KZY-700

$3.53

6

TUBE B, PURGE

17415-KZY-700

$2.65

7

TUBE, DRAIN

17417-KZY-700

$2.90

8

JOINT, TUBE

19126-KM1-010

$3.50

9

VALVE, PURGE CONTROL SOLENOID

36162-KZL-931

$53.46

10

SCREW, PAN (5X12)

93500-05012-0H

$0.90

11

CLIP, TUBE (B7)

95002-02070

$1.62
