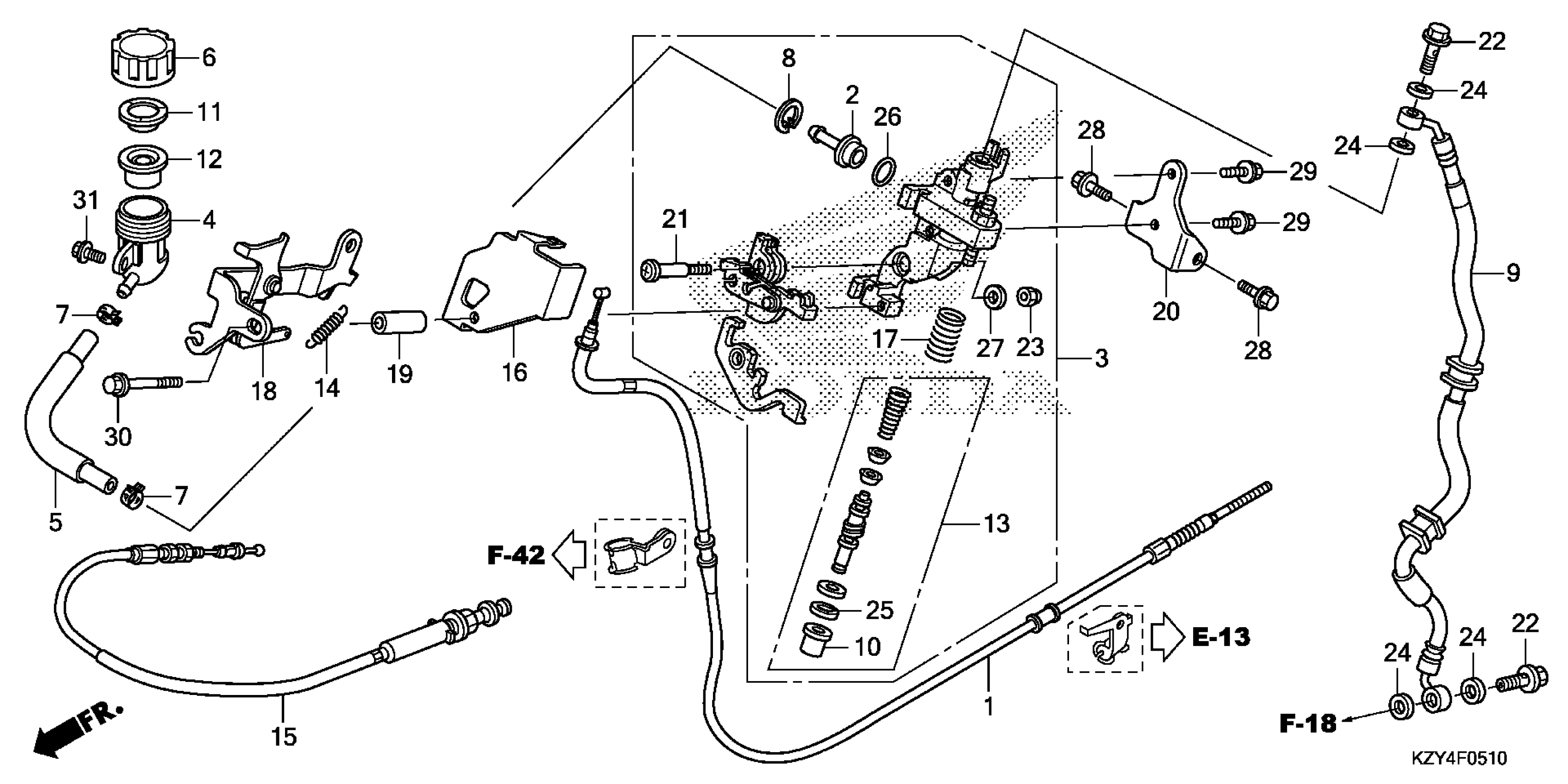

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 BRAKE MASTER CYLINDER (CBS) Diagram

#

Description
Price

1

CABLE, RR. BRAKE SECOND

43450-KWN-711

$40.90

2

CONNECTOR

43503-KZ3-B01

$9.28

3

MASTER CYLINDER SUB-ASSY. (COO) This part replaces 43510-KWN-671.

43510-K36-305

$94.57

3

MASTER CYLINDER SUB-ASSY. (COO)

43510-K36-305

$94.57

4

CUP, MASTER CYLINDER OIL

43511-KS6-702

$23.78

5

HOSE, MASTER CYLINDER

43512-MW0-006

$14.62

6

CAP, MASTER CYLINDER

43513-KWN-671

$7.62

7

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

8

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.65

9

HOSE, CBS

45127-KWN-711

$32.74

10

BOOT

45504-410-003

$11.17

11

PLATE, DIAPHRAGM

45518-GM9-711

$4.28

12

DIAPHRAGM

45520-GM9-711

$8.43

13

MASTER CYLINDER SET

45530-KVY-911

$23.84

14

SPRING B, BRAKE LOCK CABLE RETURN

46510-KJ9-000

$3.74

15

CABLE, BRAKE LOCK

46620-KZY-911

$122.18

16

COVER, MASTER CYLINDER

47602-KWN-671

$11.94

17

SPRING, DELAY

47604-KWN-931

$0.79

18

STAY, BRAKE LOCK

47660-KWN-670

$115.82

19

COLLAR, BRAKE LOCK STAY

47665-KWN-670

$2.60

20

STAY, MASTER CYLINDER

50320-KWN-931

$2.65

21

BOLT, PIVOT

90114-GEV-712

$1.41

22

BOLT, OIL (10X22)

90145-MS9-612

$6.99

23

NUT, U (6MM)

90301-GEV-711

$0.72

24

WASHER, OIL BOLT

90545-300-000

$5.79

25

CIRCLIP

90651-MA5-671

$2.38

26

O-RING (14.8X2.4)

91212-422-006

$2.37

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

27

WASHER, PLAIN (6MM)

94101-06800

Unavailable

28

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

29

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

30

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.75

30

BOLT, FLANGE (6X45)

95701-06045-07

$2.75

31

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable
