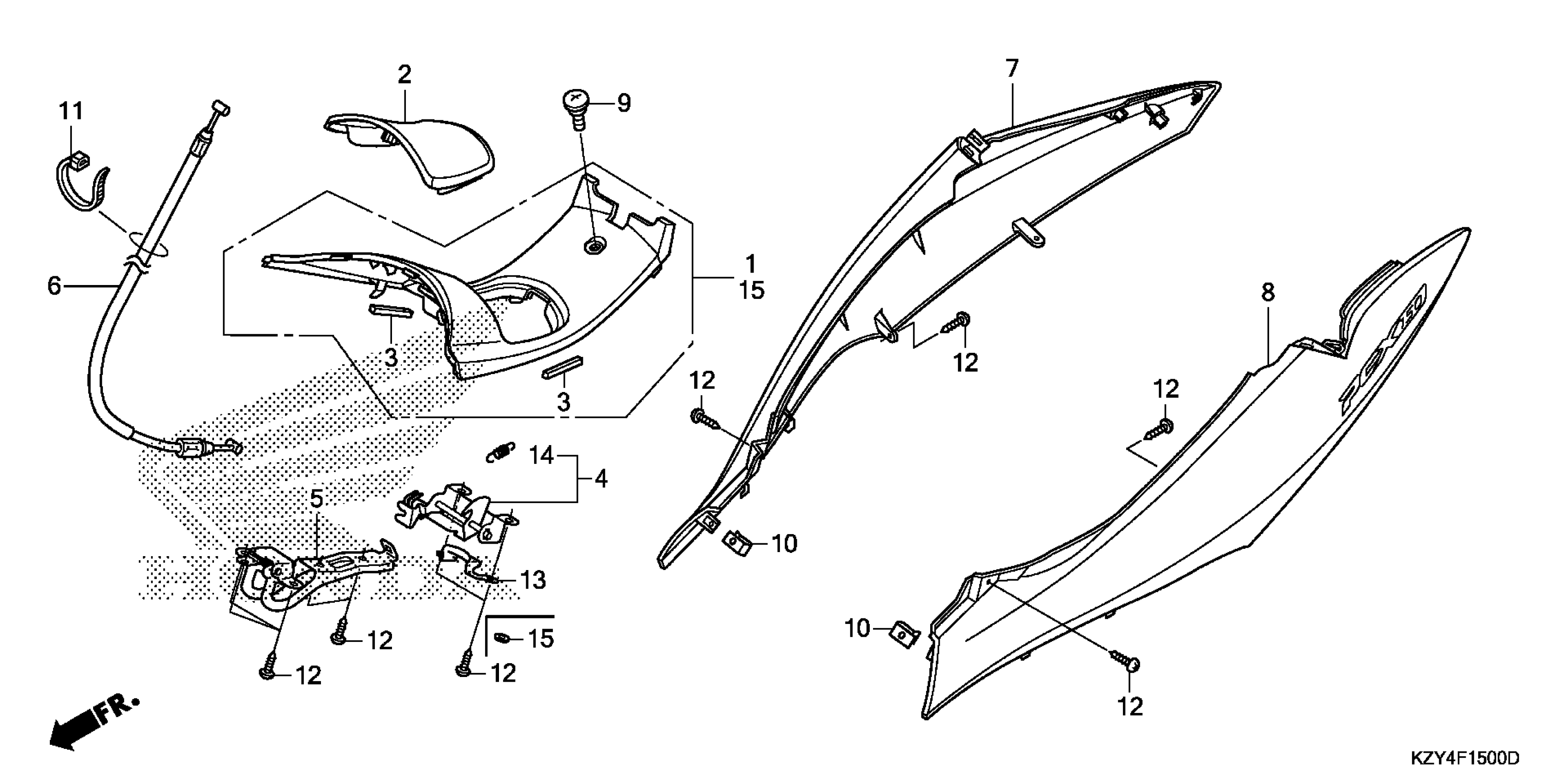

Honda PCX150AC (13) PCX150, THA, VIN# MLHKF121-D5000001 TO MLHKF121-D5099999 BODY COVER Diagram

COVER SET, CENTER *NH1* (BLACK) This part replaces 64400-KWN-710ZC.

64400-KWN-711ZC

$10.22

COVER SET, CENTER *NH1* (BLACK)

64400-KWN-711ZC

$10.22

LID, FUEL *NH1* (BLACK) | Use up to Frame SN D5005546 This part replaces 64405-KWN-710ZC.

64405-KWN-711ZC

$3.85

LID, FUEL *NH1* (BLACK)

64405-KWN-711ZC

$3.85

SEAL B, CENTER COVER

64412-KWN-900

$1.28

LOCK ASSY., FUEL LID | Use up to Frame SN D5005546

64440-KWN-710

$28.60

LOCK ASSY., FUEL LID | Use from Frame SN D5005547

64440-KWN-711

$30.53

HINGE ASSY., FUEL LID

64450-KWN-710

$14.57

CABLE, FUEL LID

64455-KWN-711

$47.10

COVER SET, R. BODY *R340C* (WL) (CANDY ROSY RED)

83550-KZY-701ZC

$56.18

COVER SET, R. BODY *NHA35M* (WL) (ASTEROID BLACK METALLIC)

83550-KZY-701ZE

$56.87

COVER SET, L. BODY *R340C* (WL) (CANDY ROSY RED)

83650-KZY-701ZC

$53.07

COVER SET, L. BODY *NHA35M* (WL) (ASTEROID BLACK METALLIC)

83650-KZY-701ZE

$53.35

SCREW, SPECIAL (5MM)

90104-KZ3-B00

$3.73

NUT, SPRING (4MM)

90302-SA4-003

$5.32

BAND, WIRE

90650-KW3-000

$4.28

SCREW, TAPPING (4X16)

93903-34420

$0.82

PLATE, FUEL LID LOCK | Use from Frame SN D5005547

64443-KWN-710

$3.63

SPRING, SEAT LOCK

77234-KRJ-900

$2.87

COVER SET, CENTER *NH1* (BLACK) (NOT AVAILABLE) | Use up to Frame SN D5005546

64010-KWN-711ZA

Unavailable
