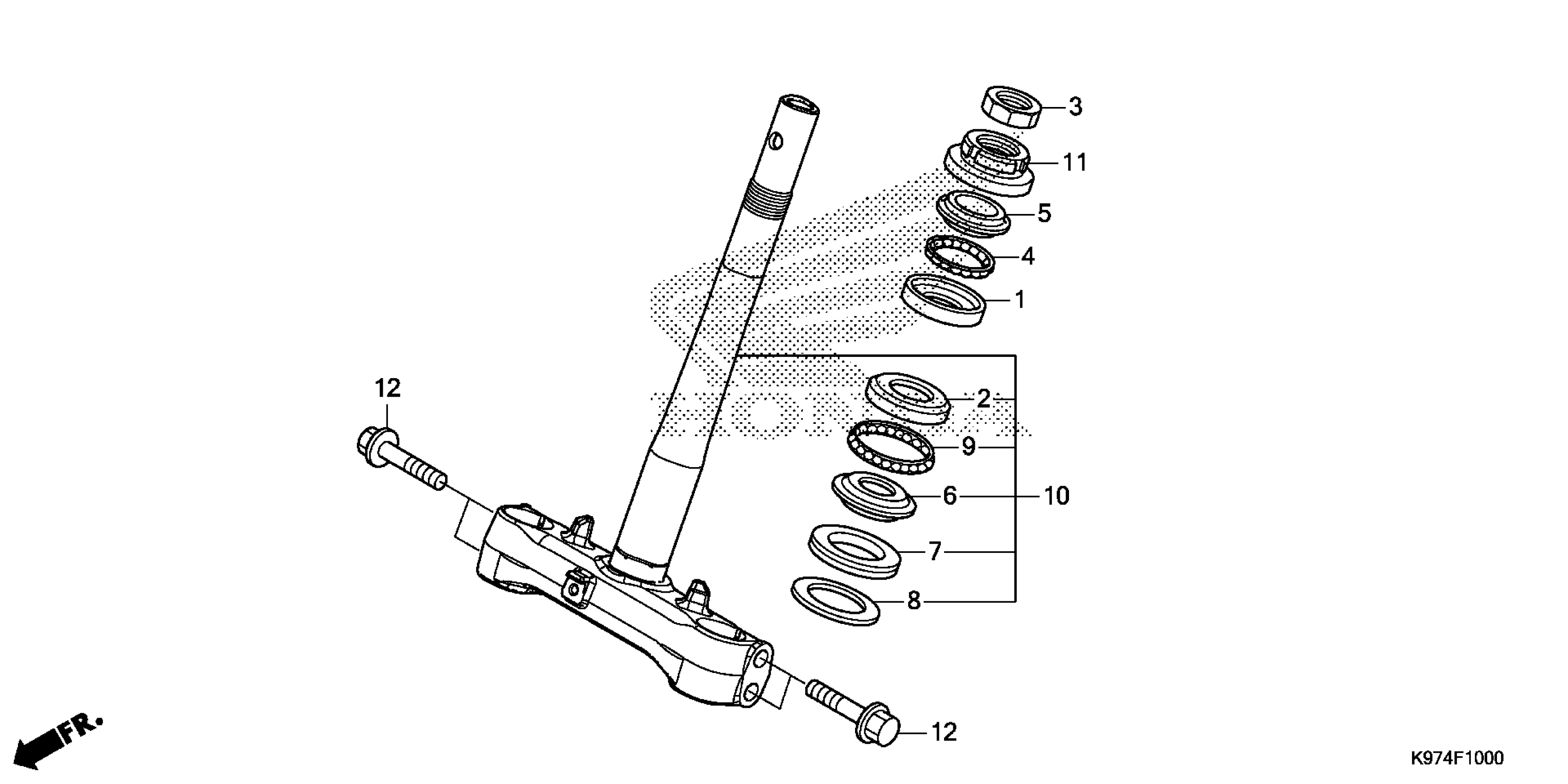

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 STEERING STEM Diagram

RACE, STEERING TOP BALL

50301-GN5-901

$13.15

RACE, STEERING BALL (LOWER)

50302-GN5-900

$10.40

NUT, STEERING STEM LOCK

50306-GN5-900

$8.15

BALL ASSY., STEERING STEEL (#6X21)

53210-KVR-C00

$18.87

RACE, STEERING TOP CONE

53211-GN5-900

$13.57

RACE, STEERING CONE (LOWER)

53212-GN5-900

$11.25

DUST SEAL, STEERING HEAD

53214-GN5-900

$4.72

WASHER, STEERING HEAD DUST SEAL

53215-GN5-900

$3.72

BALL ASSY., STEERING STEEL (#6X26)

53215-KVR-C00

$12.08

STEM SUB-ASSY., STRG

53219-K97-T00

$185.72

THREAD, STEERING HEAD TOP

53220-GN5-850

$11.41

BOLT (10X40)

90101-K97-T00

$1.49
