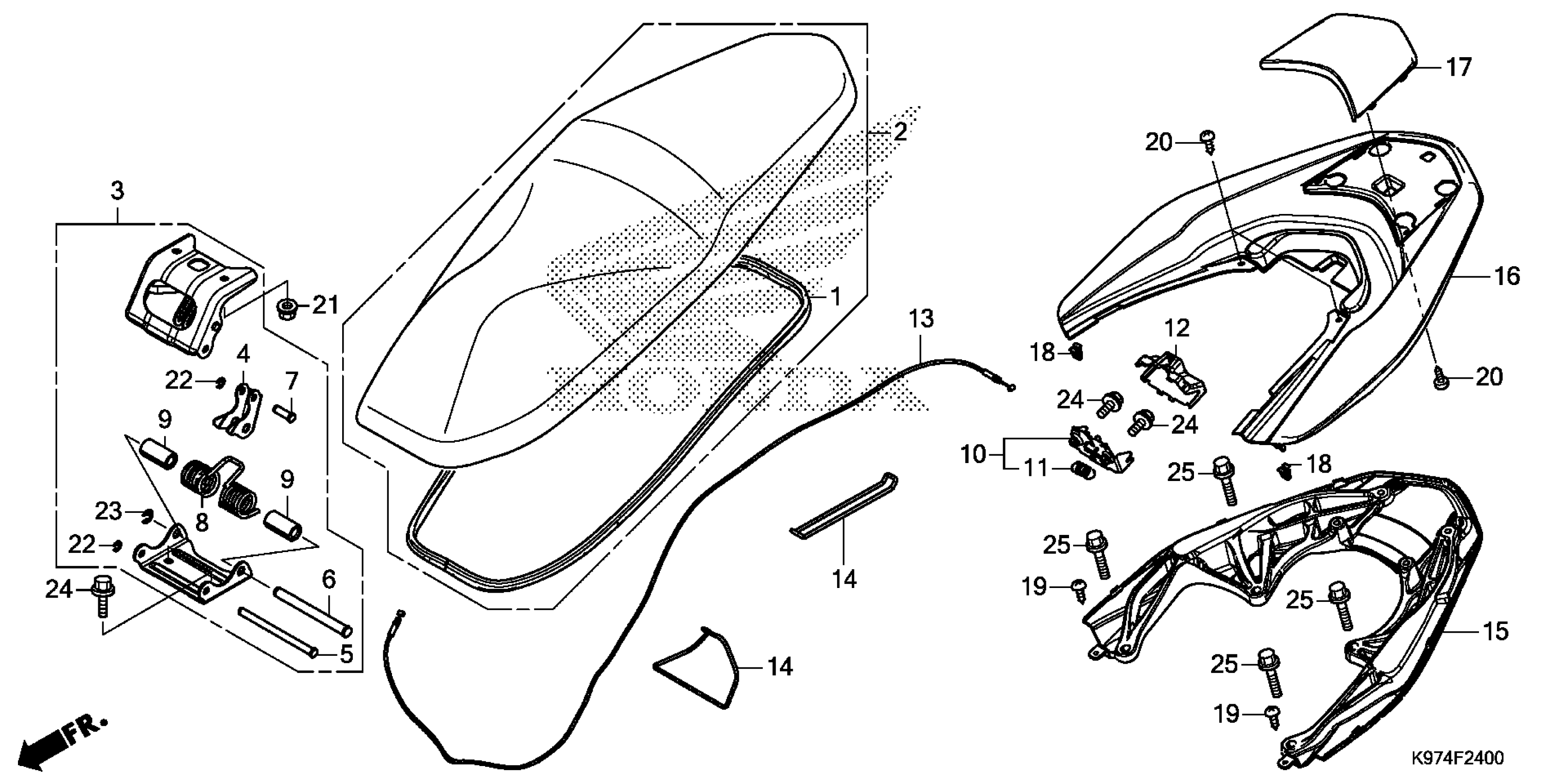

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 SEAT Diagram

#

Description
Price

1

RUBBER, SEAL

77115-K97-T00

$11.66

2

SEAT COMP (TYPE1)

77200-K97-T00ZA

$93.82

2

SEAT, DOUBLE (TYPE1)

77200-K97-V00ZB

$375.66

3

HINGE ASSY., SEAT

77210-K97-T00

$36.31

4

LINK A, SEAT HINGE

77213-K97-T00

$1.09

5

PIN A, SEAT HINGE

77215-K97-T00

$3.26

6

PIN B, SEAT HINGE

77216-K97-T00

$4.50

7

PIN C, SEAT HINGE

77217-K97-T00

$2.41

8

SPG, SEAT HINGE

77218-K97-T00

$6.62

9

COLLAR, SEAT HINGE

77219-K97-T00

$1.29

10

CATCH, SEAT

77230-K35-V00

$4.57

11

SPRING, SEAT LOCK

77234-K35-V00

$0.43

12

COVER, SEAT CATCH

77237-K35-V00

$1.21

13

CABLE, SEAT LOCK

77240-K97-T02

$4.19

14

BAND, TOOL

80123-GN5-900

$2.47

15

GRAB RAIL, RR.

84100-K97-T00

$95.79

16

COVER *R368C*

84151-K97-T00ZB

$104.01

17

LID, GRAB RAIL COVER *R368C* (CANDY LUSTER RED)

84152-K97-T00ZF

$6.78

18

CLIP, SNAP FITTING (PO)

90666-K59-A11

Unavailable

19

SCREW, TAPPING (4X16)

93903-34420

$0.82

20

SCREW, TAPPING (4X16)

93903-34480

$0.90

21

NUT, FLANGE (6MM)

94050-06080

$0.60

22

E-RING (4MM) (NOT AVAILABLE)

94540-04017

$2.69

23

E-RING (6MM)

94540-06017

$3.56

24

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

25

BOLT, FLANGE (8X28)

95701-08028-08

$1.94
