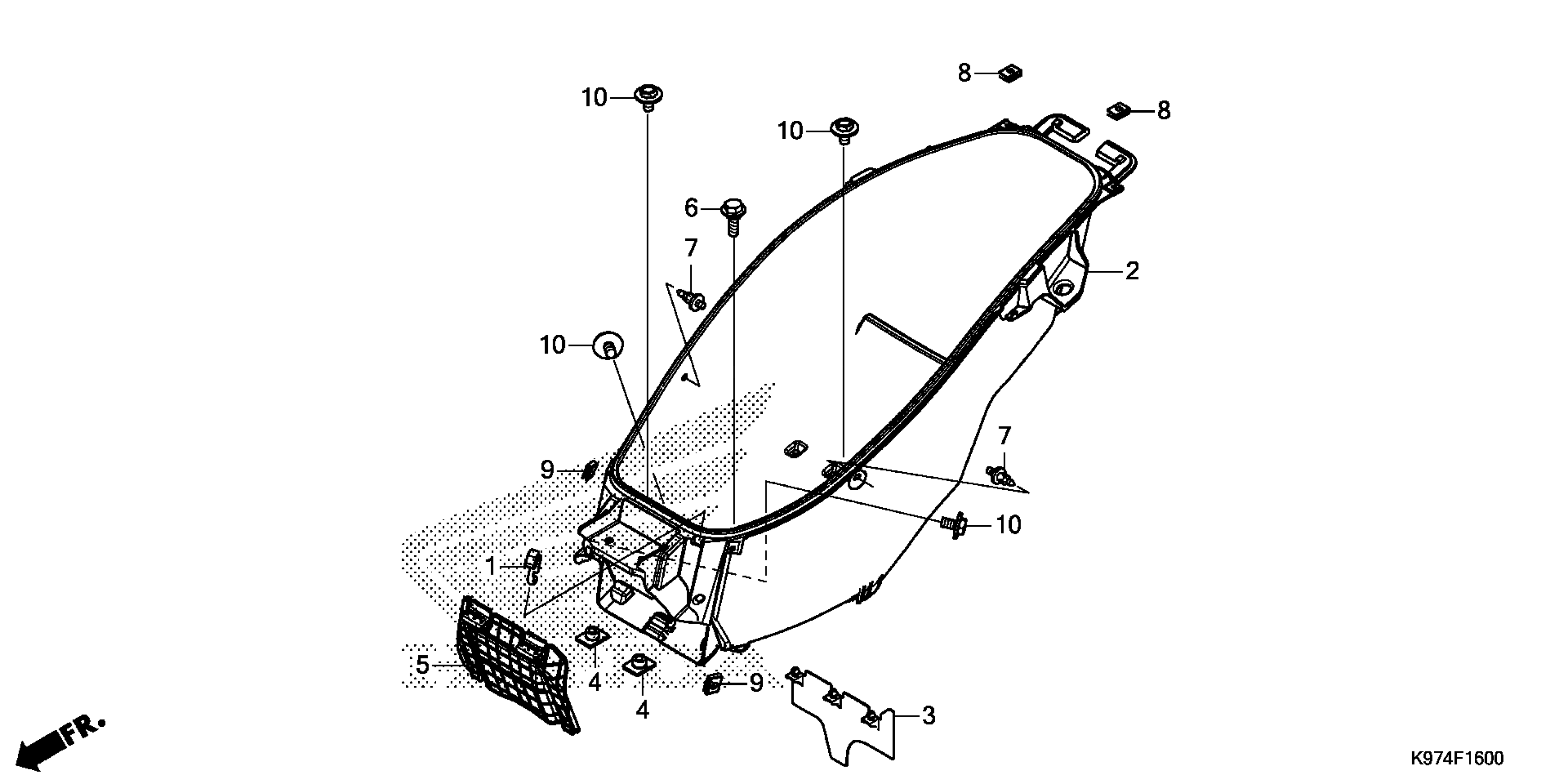

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 LUGGAGE BOX Diagram

#

Description
Price

1

HOOK, HELMET

77106-K35-V00

$1.51

2

BOX, LUGGAGE

81250-K97-T00

$57.72

3

SPLASH GUARD, RR.

81265-K97-T00

$2.63

4

NUT, SPECIAL (6X7)

81321-K97-T00

$1.19

5

COVER, BATTERY

81322-K97-T00

$3.06

6

BOLT, SPECIAL (M6)

90107-KTW-900

$3.73

7

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

8

NUT, SPRING (4MM)

90302-KWW-A00

Unavailable

9

NUT, CLIP (5MM)

90677-KAN-T00

$0.59

10

BOLT-WASHER (6X12)

93404-06012-07

$1.63
