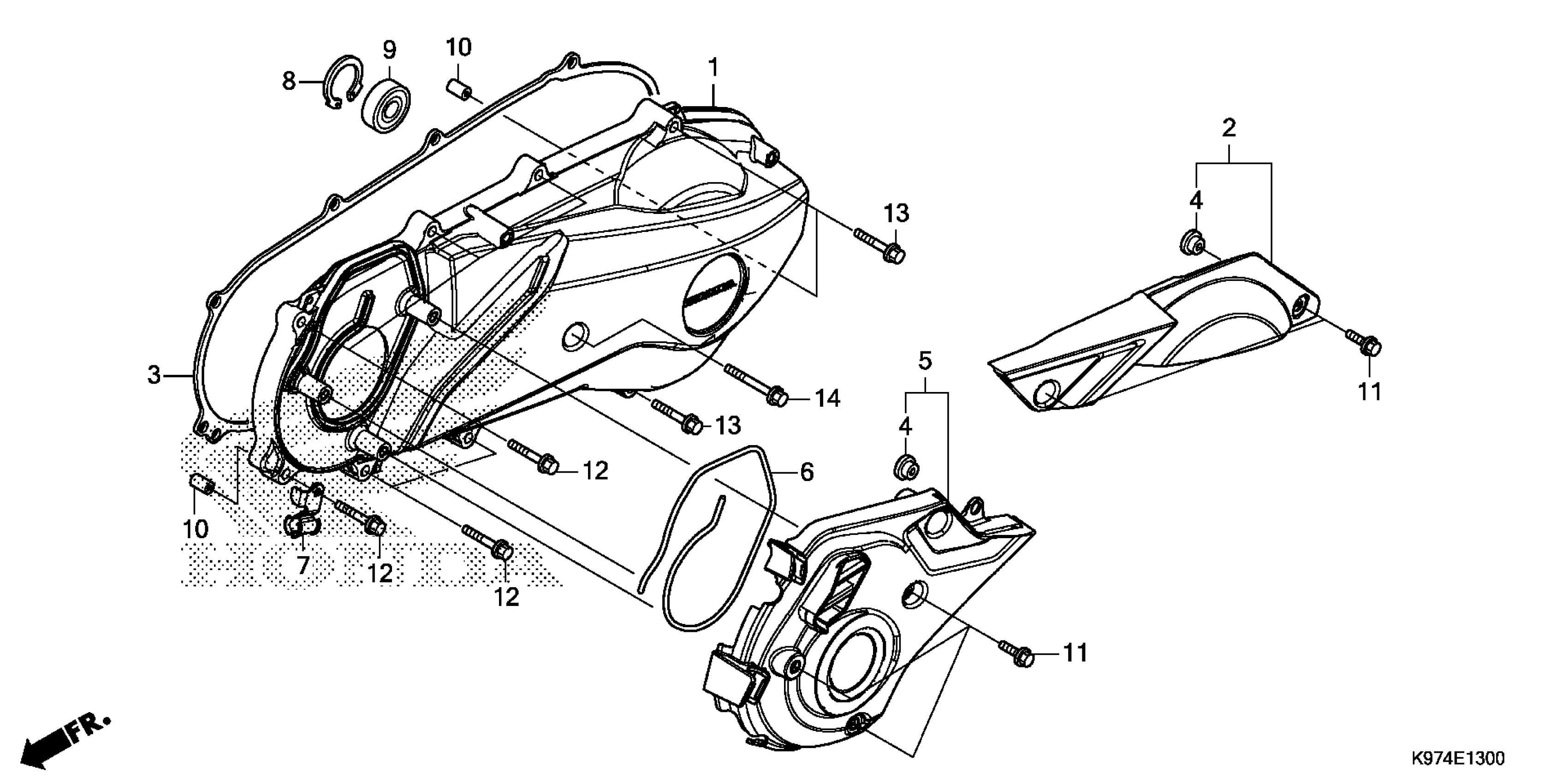

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 LEFT SIDE COVER Diagram

#

Description
Price

1

COVER, L.

11341-K97-T00

$64.57

2

COVER COMP, RR. L

11350-K97-T00

$2.72

3

GASKET, L COVER

11395-K97-T02

$8.14

4

COLLAR

19416-KEY-900

$0.71

5

DUCT COMP, L COVER

19640-K97-T00

$8.26

6

SEAL, L. COVER

19649-K01-900

$6.42

7

CLAMP, RR. BRK CABLE

43455-K97-T00

$1.64

8

CIRCLIP (INNER) (32MM)

90652-KVB-900

$0.57

9

BEARING (6002UU) (NTN)

91005-KVB-900

$7.66

10

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

11

BOLT, FLANGE (6X18)

96001-06018-07

$1.14

12

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

13

BOLT, FLANGE (6X40)

96001-06040-00

$1.97

14

BOLT, FLANGE (6X65)

96001-06065-00

$2.30
