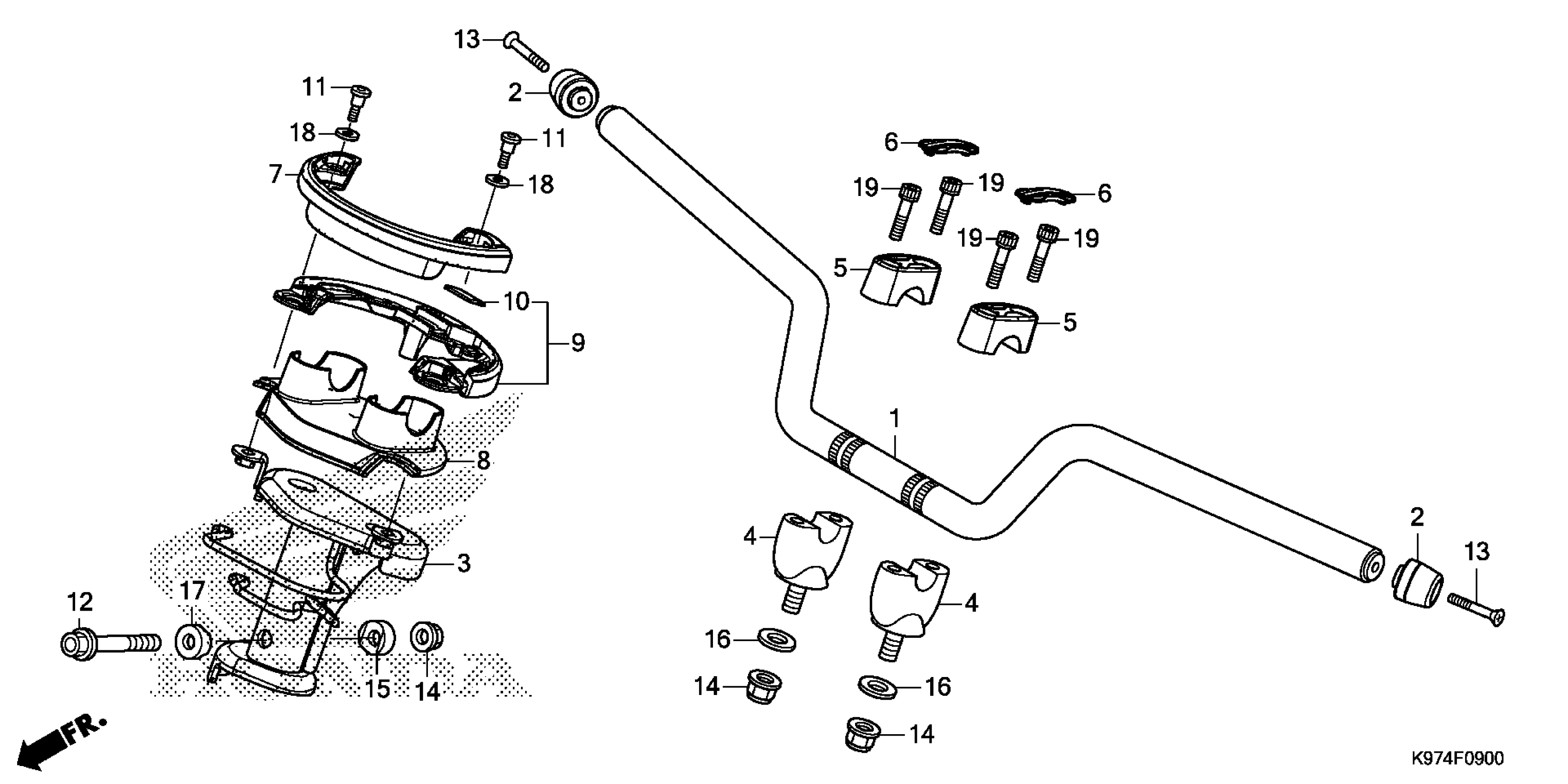

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 HANDLEBAR@HANDLE COVER Diagram

PIPE COMP

53100-K97-T00

$43.57

WEIGHT A, HANDLE

53102-K97-T00

$15.18

POST, HANDLE

53110-K35-V00

$29.03

HOLDER, HANDLE (LOWER)

53130-KWN-900

$9.00

HOLDER UPPER *NH1*

53131-K97-T00ZA

$11.52

CAP, SOC BOLT (8MM)

53132-K97-T00

$7.48

COVER, FR. HANDLE

53205-K97-T00

$15.18

COVER, RR. *NH1*

53207-K97-T00ZA

$10.10

HANDLE, RR. COVER

53250-K97-T00

$18.39

EMBLEM, PRODUCT (SHINKO)

86150-KTJ-C60

$4.11

BOLT, SOCKET (6X17)

90107-K97-T00

$1.49

BOLT, FLANGE (10X55) BOLT, FLANGE (10X50)

90120-HC4-000

$6.46

SCREW, OVAL (6X45)

90191-KWB-600

$1.49

NUT, U (10MM)

90304-KGH-901

$3.25

COLLAR A, HANDLE SETTING

90501-KPH-880

$1.49

WASHER (10MM)

90502-KWN-670

$1.49

COLLAR B, HANDLE SETTING

90505-KPH-880

$1.49

WASHER, NYLON (8MM)

90507-921-000

$1.49

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

96600-08032-10

$2.07

BOLT, SOCKET (8X32)

96600-08032-10

$2.07
