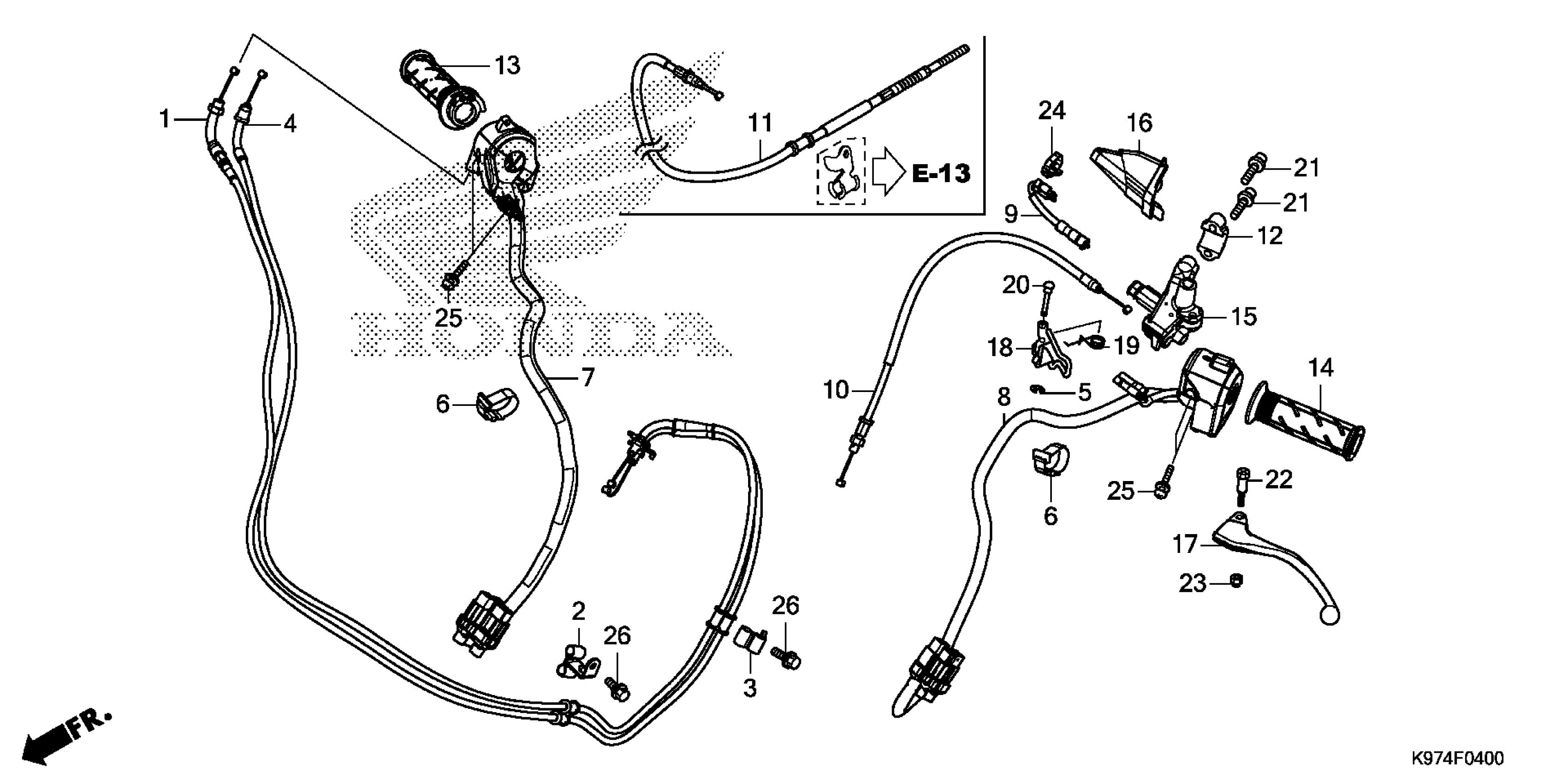

Honda PCX150AAC (20) MOTOR SCOOTER, VNM, VIN# RLHKF301-LY000001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE COMP A, THROT

17910-K97-T01

$24.28

CLAMP

17912-K97-T00

$2.31

CLAMP B, THROTTLE CABLE

17913-K35-V00

$1.49

CABLE COMP B, THROT

17920-K97-T01

$20.89

E-RING (3MM)

30158-GW3-980

$1.49

BAND B1, CABLE BAND A1, CABLE

32161-404-000

$2.23

SW, ST ENG STOP This part replaces 35130-K97-A01.

35130-K97-A02

$37.95

SW, ST ENG STOP

35130-K97-A02

$37.95

SWITCH ASSY., DIMMER & HORN & TURN SIGNAL

35200-K97-A01

$45.98

SWITCH ASSY., RR. STOP

35345-K35-V01

$16.39

CABLE, RR. BRAKE

43450-K97-J11

$11.90

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

GRIP COMP, THROT

53140-K97-T00

$4.64

GRIP, L. HANDLE (COO)

53166-KWN-305

$7.90

GRIP, L. HANDLE (COO) This part replaces 53166-KWN-900.

53166-KWN-305

$7.90

BRACKET, L. HANDLE LEVER

53172-K97-A10

$54.70

BOOT, L. LEVER

53177-K97-A10

$152.62

LEVER, L. HANDLEBAR (COO) This part replaces 53178-K35-V00.

53178-K35-305

$12.71

LEVER, L. HANDLEBAR (COO)

53178-K35-305

$12.71

LEVER, BRAKE LOCK

53181-K97-A10

$72.84

SPRING, LEVER RETURN

53182-KVB-900

$1.49

PIN, BRAKE LOCK LEVER PIVOT

53183-K97-A10

$33.64

BOLT, FLANGE SOCKET (6X22)

90101-KWN-900

$1.49

BOLT, HANDLE LEVER PIVOT

90115-KWN-700

$1.49

NUT, HEX. (5MM)

90302-435-761

$2.23

BAND, WIRE HARNESS

90652-K35-V00

$1.49

SCREW-WASHER (5X20)

93892-05020-07

$1.49

BOLT, FLANGE (6X16)

95701-06016-08

$1.49
